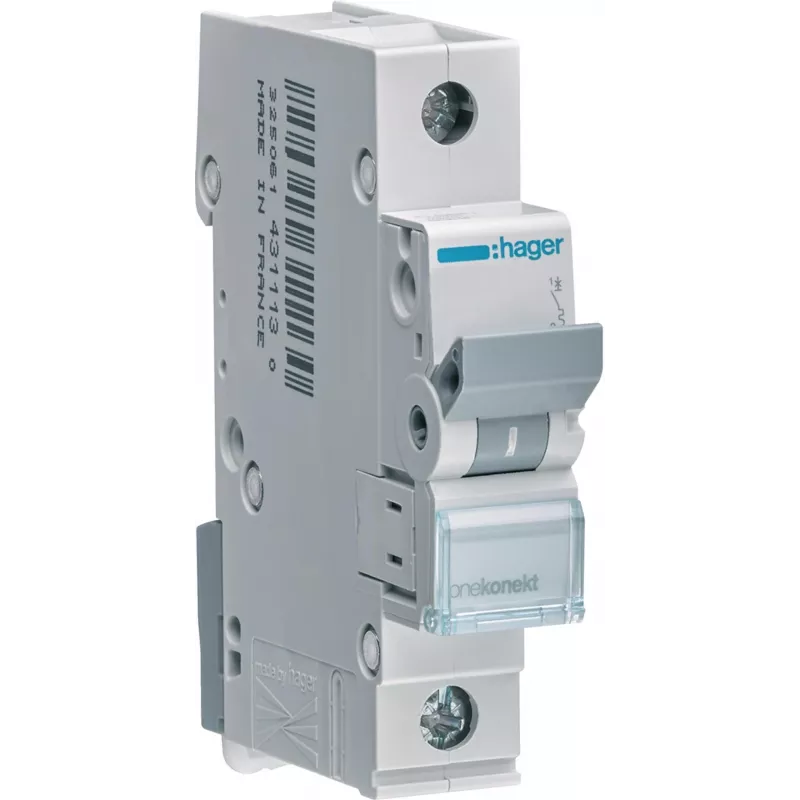

Hager MBN106E MCB 6kA, charakteristika B, 6A, 1-pólový

The Hager MBN106E is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in residential and commercial electrical installations. With a rated current of 6A and a B tripping curve, it provides fast response to short circuits and overloads, ensuring safety and equipment longevity. This single-pole breaker features a 6kA short-circuit breaking capacity and complies with EN 60898-1 standards.

Advantages

Compact 1-module design (17.5mm) saves space on DIN rail. Energy limiting class 3 reduces stress on downstream devices. Clear ON/OFF position indicator for easy status identification. Screw terminals accommodate rigid and flexible conductors up to 25mm² and 16mm² respectively.

Suitable for

• Lighting circuits
• Socket outlets
• Small appliance protection
• Distribution boards in residential and commercial buildings

Key specifications

• Rated current: 6A
• Tripping curve: B
• Number of poles: 1P
• Short-circuit breaking capacity: 6kA
• Rated voltage: 230/400V AC
• Frequency: 50/60Hz
• Mounting: DIN rail
• Module width: 1 module (17.5mm)
• Electrical endurance: 20,000 cycles
• Mechanical endurance: 20,000 cycles
• Protection degree: IP20 (terminals), IP40 (front)
• Connection: Screw terminals
• Operating temperature: -25°C to 70°C
• Storage temperature: -40°C to 80°C
• Standard: EN 60898-1
• Energy limiting class: 3

Recommendations

For optimal performance, ensure proper torque settings during installation. Use with compatible Hager distribution boards and accessories. Always follow local electrical codes and regulations.
