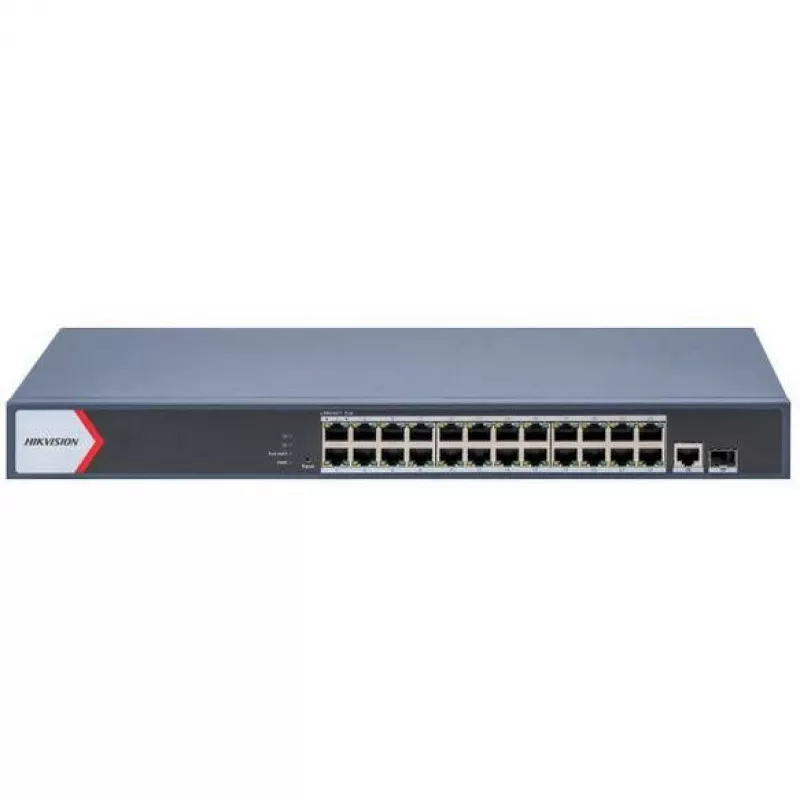

Hikvision DS-3E1526P-EI/M 26-port Gigabit PoE+ managed switch s 24 PoE portami a 2 SFP slotmi

The Hikvision DS-3E1526P-EI/M is a high-performance Layer 2 managed switch designed for small to medium-sized business networks. With 24 Gigabit PoE+ ports and a total PoE budget of 370 W, it provides reliable power and data connectivity for IP cameras, wireless access points, and other PoE devices. The switch also features 2 non-PoE Gigabit ports and 2 Gigabit SFP slots for uplink flexibility.

Advantages

This switch offers advanced PoE management including PoE watchdog and long-distance PoE transmission up to 300 meters, ensuring stable operation of critical devices. Its Layer 2 management capabilities with VLAN, QoS, and SNMP support allow for efficient network segmentation and traffic prioritization. The rack-mountable 1U design saves space in server rooms or network cabinets.

Suitable for

• IP surveillance systems requiring PoE+ power
• Wireless network deployments with multiple access points
• Small to medium enterprise networks needing managed switching
• Edge or access layer in hierarchical network designs

Key specifications

• 26 Gigabit Ethernet ports (24 PoE+ 802.3af/at, 2 non-PoE)
• 2 Gigabit SFP slots for fiber uplinks
• Switching capacity: 52 Gbps
• Packet forwarding rate: 38.688 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 10 KB
• PoE power budget: 370 W
• Management: Web UI, CLI, SNMP
• VLAN: 802.1Q
• QoS: DSCP, 802.1p
• Internal power supply: 100-240 VAC
• Operating temperature: -10 °C to 55 °C
• Mounting: 1U rack-mount

Recommendations

For optimal performance, use Category 5e or higher cabling for Gigabit connections. Ensure the total PoE power draw does not exceed 370 W. The switch supports up to 300m PoE transmission in extend mode, ideal for long-distance camera installations.
