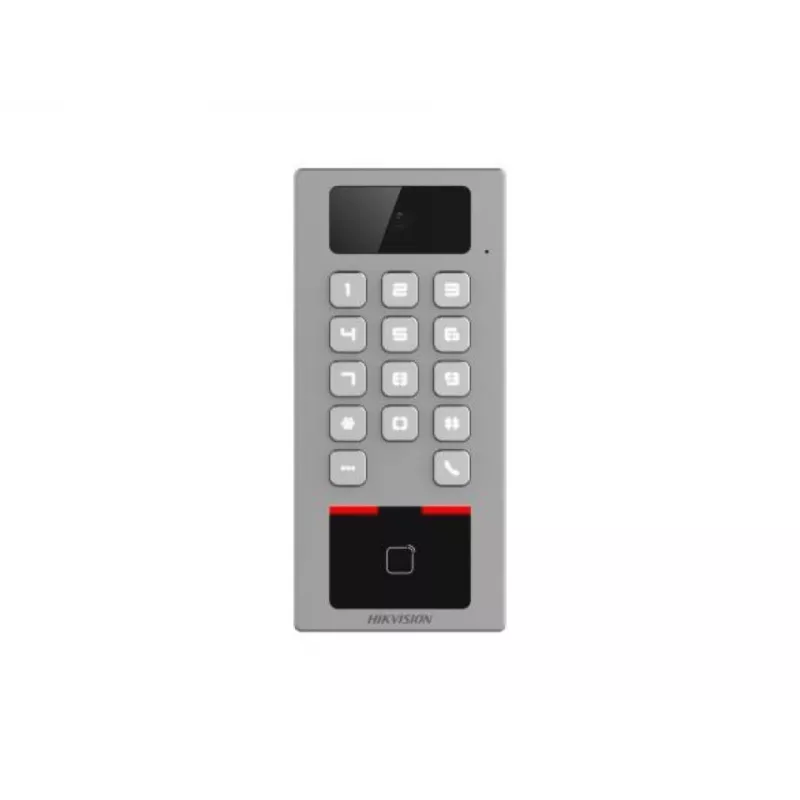

Hikvision DS-K1T502DBWX-C prístupový terminál s odtlačkom prsta, karta Mifare, PIN

The Hikvision DS-K1T502DBWX-C is a robust access control terminal designed for secure and efficient entry management. It supports multiple authentication modes including fingerprint, Mifare card, and PIN, making it suitable for a wide range of commercial and industrial applications. With an IP65-rated weatherproof enclosure, it can operate reliably in harsh outdoor environments.

Advantages

This terminal offers high security with a 32-bit processor and 8MB Flash/16MB RAM for fast processing. The optical fingerprint sensor and 2.4-inch LCD display provide clear user feedback. It supports up to 3,000 users and 100,000 event logs, ensuring scalability for growing businesses. The built-in speaker delivers voice prompts for easy operation.

Suitable for

• Office buildings
• Industrial facilities
• Warehouses
• Government institutions
• Educational campuses

Key specifications

• Authentication: Fingerprint, Mifare Card, PIN
• Fingerprint Capacity: 3,000
• Card Capacity: 3,000
• Event Log: 100,000
• Display: 2.4-inch LCD
• Communication: TCP/IP, RS-485, Wiegand
• Power: 12 VDC
• Operating Temperature: -30°C to +65°C
• Protection: IP65
• Inputs: Door Sensor, Exit Button, Alarm Input
• Outputs: Relay for Lock, Alarm Output

Recommendations

For optimal performance, use with Hikvision power supply and ensure proper installation by a qualified technician. Regular firmware updates are recommended to maintain security.
