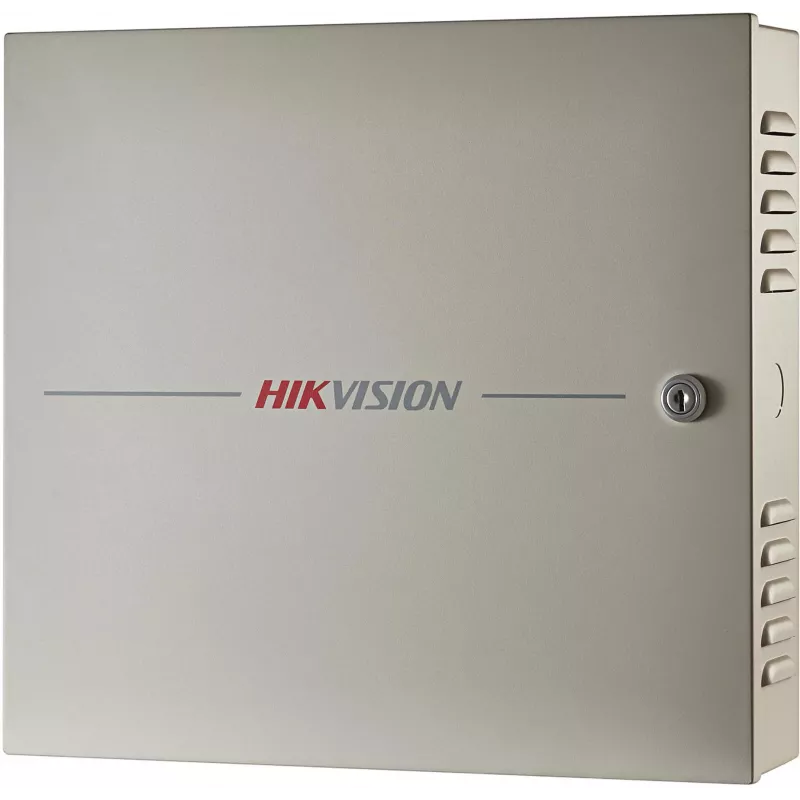

Hikvision DS-K2602T prístupový kontroler, 2 dvere, TCP/IP, RS-485, Wiegand

The Hikvision DS-K2602T is a high-performance 2-door access controller designed for medium to large-scale security systems. It supports both Wiegand and RS-485 reader interfaces, providing flexibility for various access control setups. With a robust 32-bit processor and 16 MB flash memory, it ensures reliable operation and fast data processing. The controller can manage up to 100,000 cards and store 300,000 events, making it ideal for busy environments.

Advantages

This access controller offers advanced features such as anti-passback, multi-door interlock, multi-card opening, and first card opening, enhancing security and access management. It integrates seamlessly with HikCentral Professional and iVMS-4200 software for centralized control. The built-in power supply simplifies installation, and the wide operating temperature range (-20°C to +65°C) ensures reliable performance in various conditions.

Suitable for

• Commercial buildings requiring secure access control for multiple doors
• Office complexes, warehouses, and industrial facilities
• Integration with existing security systems using Wiegand or RS-485 readers
• Applications needing high card capacity and event logging

Key specifications

• Doors Controlled: 2
• Reader Interface: 4 x Wiegand (2 In, 2 Out) or 4 x RS-485 (2 In, 2 Out)
• Communication: TCP/IP, RS-485
• Card Capacity: 100,000
• Event Capacity: 300,000
• Input Ports: 4 x Alarm Input, 2 x Door Sensor, 2 x Exit Button, 1 x Tamper
• Output Ports: 2 x Relay (Door Lock), 2 x Alarm Output
• Processor: 32-bit High-Performance
• Storage: 16 MB Flash Memory
• Power Supply: 12V DC, 5A (Integrated)
• Operating Temperature: -20°C to +65°C
• Operating Humidity: 10% to 90% (Non-condensing)
• Certifications: CE, FCC

Recommendations

For optimal performance, use with Hikvision readers and HikCentral Professional software. Ensure proper wiring and power supply according to the installation manual.
