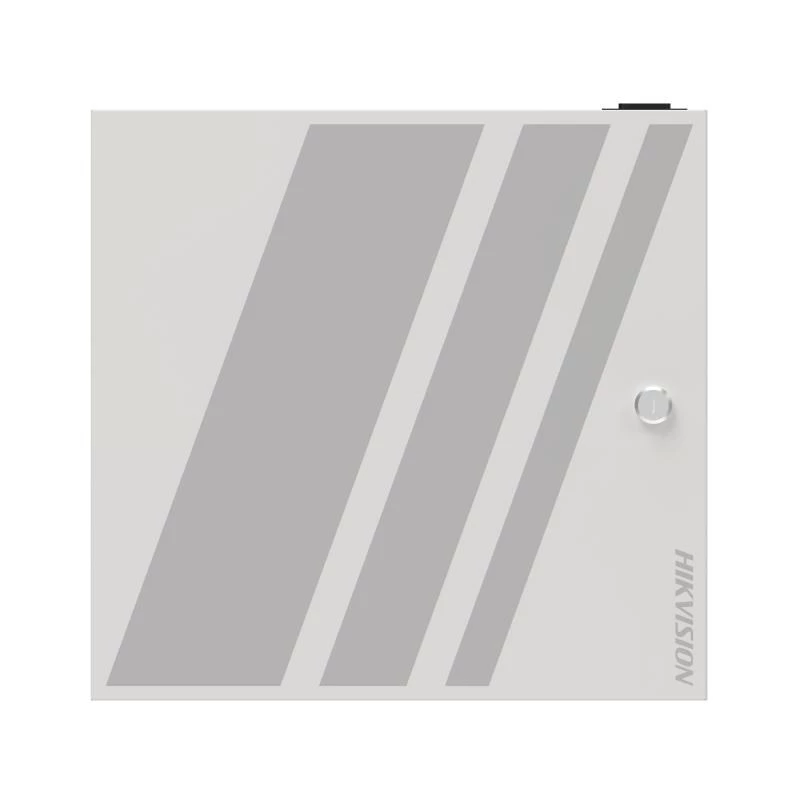

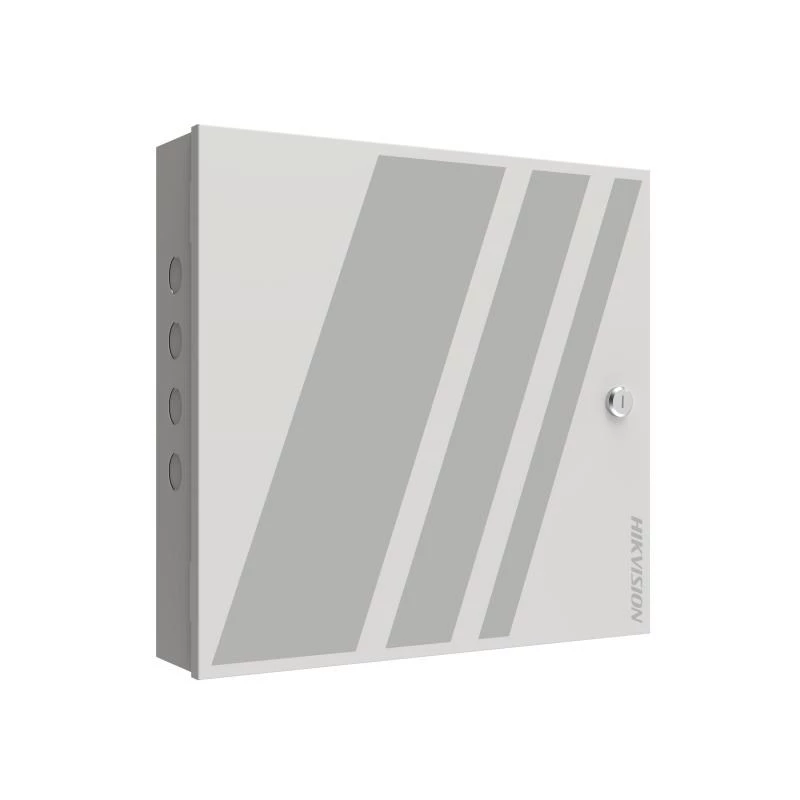

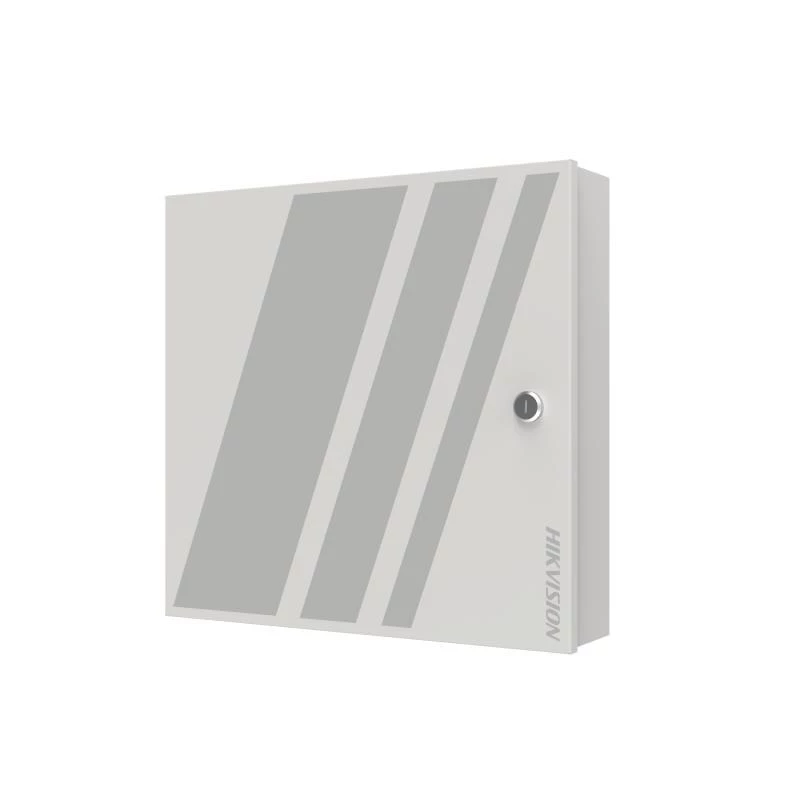

Hikvision DS-K2701X prístupový kontrolér

The Hikvision DS-K2701X is a high-performance access control panel designed for secure and efficient management of single-door entry systems. With support for up to 100,000 users and 300,000 events, it is ideal for medium to large-scale installations in commercial buildings, offices, and industrial facilities. The controller features TCP/IP and RS-485 communication interfaces, dual reader ports (Wiegand or RS-485), and multiple input/output ports for door sensors, exit buttons, and alarms. Its robust design ensures reliable operation in temperatures from -20°C to +65°C.

Advantages

Scalable user and event capacity, flexible reader interface options, and comprehensive access control functions including anti-passback, multi-door interlocking, and duress alarm. The controller supports online firmware upgrades and SDK integration for custom applications.

Suitable for

• Commercial office buildings
• Industrial facilities
• Educational institutions
• Government and public sector buildings

Key specifications

• Doors Controlled: 1 (uni-directional or bi-directional)
• User Capacity: 100,000
• Event Capacity: 300,000
• Communication: TCP/IP, RS-485
• Reader Interface: 2 x Wiegand (W26/W34) or 2 x RS-485
• Input Ports: 4 (Door Sensor, Exit Button, Alarm Input, Case Input)
• Output Ports: 2 x Relay (Door Lock, Alarm Output)
• Power Supply: 12 VDC, Max. 3.5 W
• Operating Temperature: -20°C to +65°C (-4°F to +149°F)
• Operating Humidity: 10% to 90% (Non-condensing)

Recommendations

For optimal performance, pair with Hikvision card readers and electric door locks. Ensure proper network connectivity for remote management and firmware updates.
