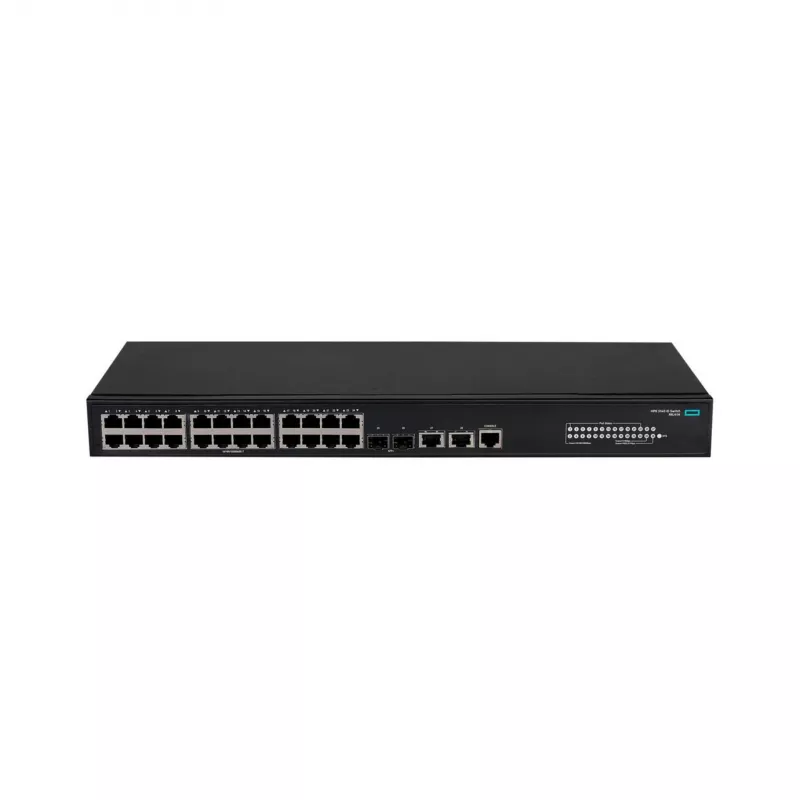

HPE FlexNetwork 5140 24G 2SFP+ 2XGT EI Switch

The HPE FlexNetwork 5140 24G 2SFP+ 2XGT EI Switch is a high-performance managed Layer 2/3 Gigabit Ethernet switch designed for enterprise edge and access layer deployments. With 24 10/100/1000Base-T ports, 2 SFP+ 10 Gigabit ports, and 2 10GBase-T ports, it delivers robust connectivity and advanced features for growing networks.

Advantages

This switch offers exceptional value with its combination of Gigabit and 10 Gigabit uplinks, intelligent management capabilities, and energy-efficient design. It supports HPE Intelligent Resilient Framework (IRF) for virtual stacking, enabling simplified management and high availability. The switch also provides comprehensive security features including ACLs, 802.1X, and DHCP snooping to protect your network.

Suitable for

• Enterprise access layer deployments requiring high-density Gigabit Ethernet
• Small to medium business networks needing reliable and secure switching
• Edge environments where 10 Gigabit uplinks are necessary for future growth
• Networks requiring advanced Layer 3 features like static routing, RIP, and OSPF

Key specifications

• 24 x 10/100/1000Base-T ports
• 2 x 10 Gigabit SFP+ ports
• 2 x 10 Gigabit Base-T ports
• Switching capacity: 128 Gbps
• Forwarding rate: 96 Mpps
• Form factor: 1U rack-mountable
• MAC address table: 16000 entries
• VLAN support: up to 4094 VLANs
• Jumbo frame support: up to 9216 bytes
• Management: CLI, Web GUI, SNMP, RMON
• Layer 3 features: Static routing, RIP, OSPF
• Security: ACLs, 802.1X, DHCP snooping, port security
• Power supply: Internal AC
• Flash memory: 256 MB
• DRAM: 512 MB
• Operating temperature: 0°C to 45°C

Recommendations

For optimal performance, pair this switch with HPE transceivers and cables. Consider using IRF stacking for simplified management and redundancy. Ensure proper ventilation in the rack to maintain operating temperature.
