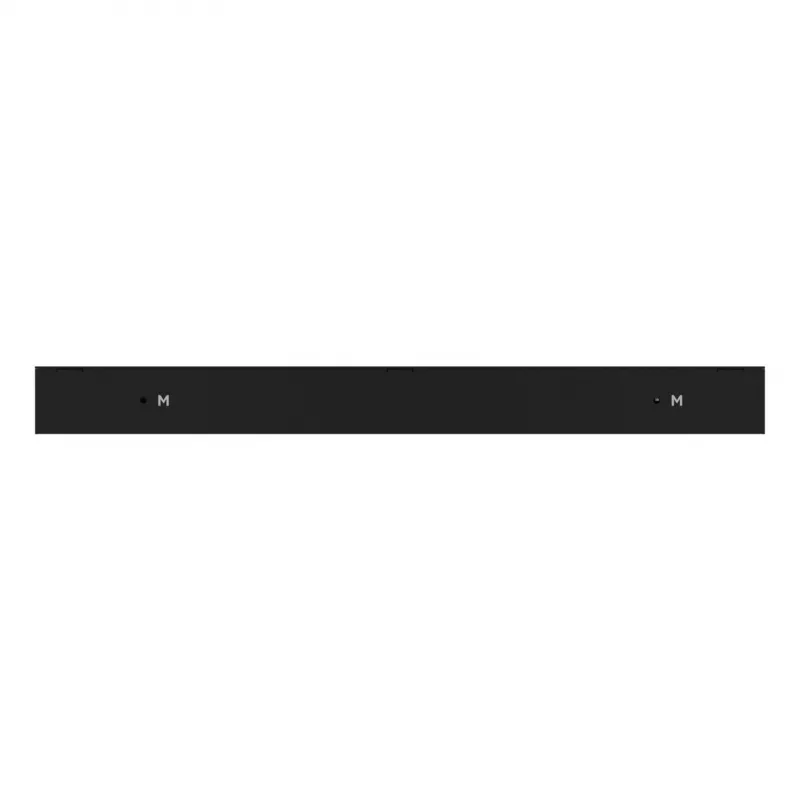

HPE G2 Basic vertikálny polovičný PDU - 12 C13 + 2 C19 výstupy - 16A - 230V - 0U - čierna

The HPE G2 Basic Vertical Half-Height PDU (P9Q38A) is a reliable power distribution unit designed for data centers and server rooms. It provides efficient power distribution to connected equipment with 12 IEC C13 and 2 IEC C19 outlets, supporting a maximum current of 16A at 230V. Its vertical half-height form factor (0U) saves valuable rack space while ensuring easy installation.

Advantages

This PDU offers a cost-effective solution for basic power distribution without monitoring or switching capabilities. Its compact vertical design allows for tool-less mounting in racks, optimizing airflow and cable management. The unit is built with high-quality components to ensure long-term reliability and safety.

Suitable for

• Data centers requiring basic power distribution
• Server rooms with limited rack space
• IT equipment needing reliable 230V AC power
• Environments where monitoring is not required

Key specifications

• PDU Type: Basic
• Form Factor: Vertical Half-Height (0U)
• Input Connector: 1 x IEC 60320 C20
• Input Voltage: 230 V AC
• Input Current: 16 A
• Input Frequency: 50/60 Hz
• Power Capacity: 3.68 kVA
• Output Connectors: 12 x IEC 60320 C13, 2 x IEC 60320 C19
• Output Voltage: 230 V AC
• Maximum Current: 16 A
• Phase: Single-phase
• Mounting Type: Rack-mountable (Vertical)
• Color: Black
• Certifications: CE, UL, FCC Class A, VDE, CSA
• Operating Temperature: 0 to 45 °C

Recommendations

For optimal performance, ensure that the total connected load does not exceed 3.68 kVA. Use appropriate power cords with C13 and C19 connectors. This PDU is ideal for basic power distribution needs where advanced monitoring is not required.
