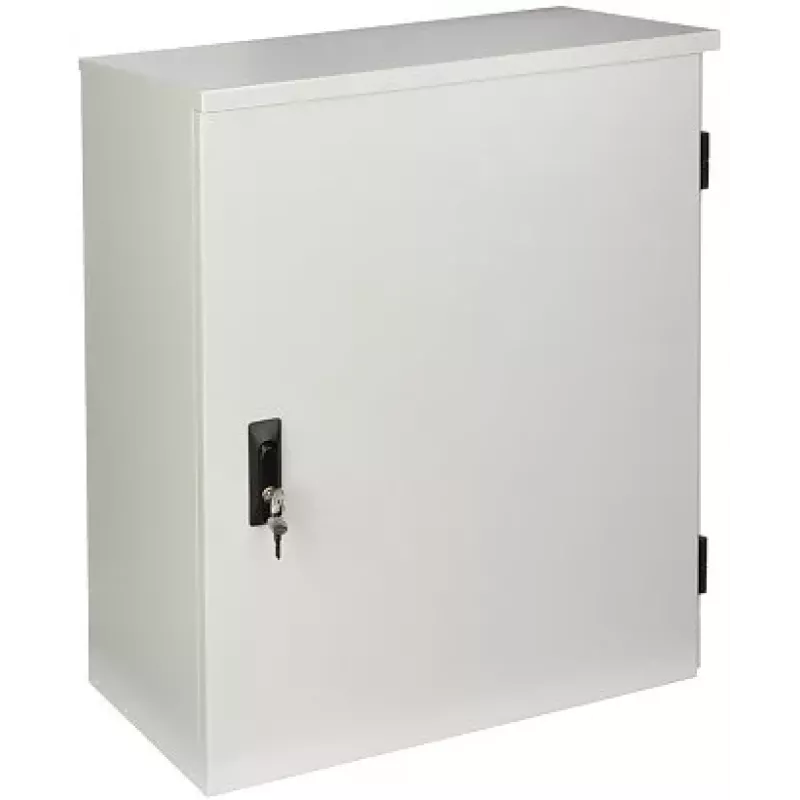

INNE Hermetic Cabinet GALVAS SH-750/595/322

The INNE Hermetic Cabinet GALVAS SH-750/595/322 is a robust wall-mount enclosure designed for outdoor and industrial electrical installations. Constructed from galvanized steel with a powder-coated finish in light grey (RAL 7035), it offers high corrosion and UV resistance, ensuring long-lasting performance in harsh environments.

Advantages

This cabinet features a three-point locking system with cylinder lock for enhanced security, a polyurethane gasket for IP54 ingress protection, and a 120° door opening angle for easy access. The internal galvanized steel mounting plate simplifies component installation, while the bottom gland plate facilitates cable entry.

Suitable for

• Outdoor electrical enclosures
• Industrial control cabinets
• Distribution boards
• Telecommunications equipment housing

Key specifications

• Enclosure Type: Hermetic Wall-Mount Cabinet
• Material: Galvanized Steel
• Surface Finish: Powder Coated
• Color: Light Grey (RAL 7035)
• Ingress Protection: IP54
• Mounting: Wall-Mountable
• Door: Single Hinged Door
• Locking: Three-point locking with Cylinder Lock
• Internal Mounting Plate: Yes, Galvanized Steel
• Cable Entry: Bottom Gland Plate
• Gasket Material: Polyurethane (PU)
• Material Thickness: 1.2 mm
• Door Opening Angle: 120°
• Number of Locks: 1
• Number of Keys: 2

Recommendations

Ideal for protecting sensitive electrical components in demanding outdoor or industrial settings. Ensure proper wall mounting and cable sealing to maintain IP54 rating.
