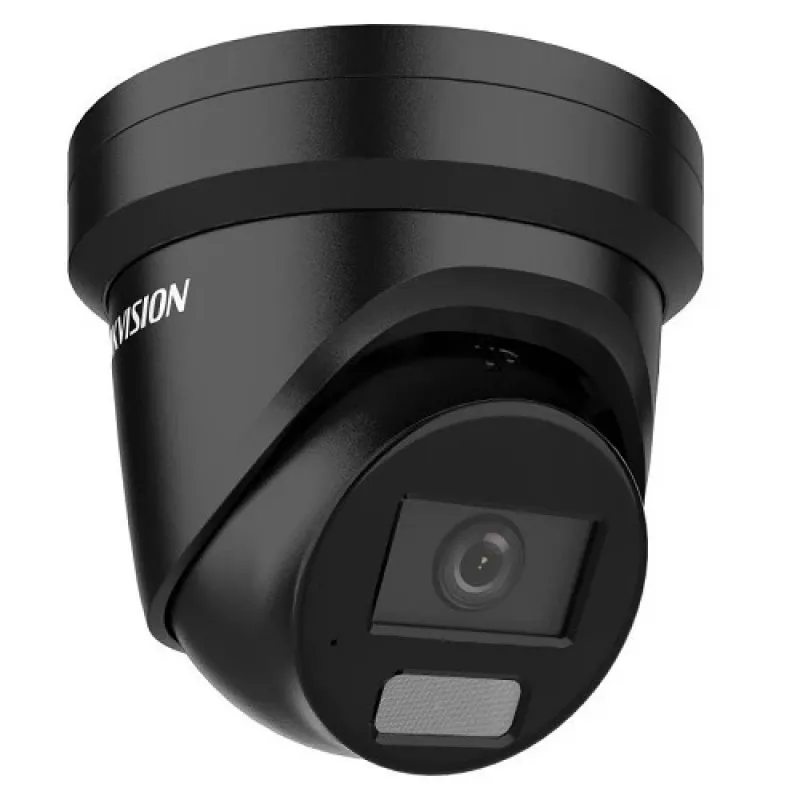

IP bezpečnostná kamera Hikvision Pro Series DS-2CD2387G2H-LIU 3840x2160 interiér a exteriér

Modelis: DS-2CD2387G2H-LIUeF 2.8mm, juodos spalvos Rezoliucija: 8MP Objektyvas: 2.8 mm, horizontalus FOV 112 Technologija: AcuSense, hybrid Light, ColorVu Integruotas mikrofonas: Taip Naktinis pašvietimas 40 m. IR; 40 m. LED Vieta microSD talpai: Taip, 512GB Darbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67 Vaizdo suspaudimas: H.265+ WiFi: Ne Laikiklis/bazė (papildomai): DS-1280ZJ-PT6 Lauko/vidaus: Lauko Aprašymas: Kamera • Sensorius: 1/1.8 Progressive Scan CMOS • Maks. rezoliucija: 3840 × 2160 • Min. apšvietimas: Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with white light • Užrakto greitis: 1/3 s to 1/100,000 s • Kampo keitimas: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lęšis • Lęšio tipas: Fixed focal lens, 2.8mm • Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° • Lęšio montavimas: M16 • Rainelės tipas: Fixed • Diafragama: F1.0 • Ryškumo gylis: 2.8 mm, 3.3 m to infinite DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m Apšvietimas • Papildomo apšviešimo tipas: White Light • Papildomo apšvietimo diapazonas: Up to 40 m • Išmanus papildomas apšvietimas: Yes • IR bangos ilgis: 850 nm Vaizdas • Pagrindinis srautas: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • Antrinis srautas: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) • Trečias srautas: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. • Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG • Vaizdo bitų greitis: 32 Kbps to 16 Mbps • H.264 tipas: Baseline Profile,Main Profile,High Profile • H.265 tipas: Main Profile • Bitų greičio kontrolė: CBR,VBR • Region of Interest (ROI): 1 fixed region for main stream and sub-stream • Scalable Video Coding (SVC)H.264 and H.265 encoding Garsas • Pašalinių garsų šalinimas: -U: Yes • Garso suspaudimas -U: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC • Garso bitų greitis -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64; Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) • Garso atrankos dažnis -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Internetas • Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,; WebSocket, WebSockets, SRTP, SFTP • Tiesioginis vaizdo žiūrėjimas: Up to 6 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP • User/Host: Up to 32 users. 3 user levels: administrator, operator and user • Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) • Saugykla: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Klientas: iVMS-4200, Hik-Connect, Hik-Central • Naršyklė: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Nuotrauka • Wide Dynamic Range (WDR): 130 dB • SNR: > /= 52 dB • Diena/Naktis režimas: Day, Night, Auto, Schedule • Nuotraukų pagražinimas: BLC,HLC,3D DNR • Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser • Nuotraukos parametrų keitiklis: yes Sąsaja • Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port • Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB • Įmontuotas mikrofonas: -U: Yes • Perkrovimo mygtukas: Yes Funkcijos • Pagrindinės funkcijos: Motion detection (human and vehicle targets classification), video tampering alarm, exception • Išmaniosios funkcijos: Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Scene change detection • Sąsaja: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger; capture, send emai Išmaniosios funkcijos • Veido atpažinimas: Yes • Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) Pagrindinis • Sistemos parametrai: 12 VDC ± 25%,0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8 W • Dydis: Ø 138.3 mm × 115.4 mm (Ø 5.4 × 4.5) • Pakuotės dydis: 170 mm × 170 mm × 160 mm (6.7 × 6.7 × 6.3) • Svoris: Approx. 770 g (1.7 lb.) • Svoris su įpakavimu: Approx. 1040 g (2.3 lb.) • Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian • Pagrindinės funkcijos: Heartbeat, mirror, password reset via email, pixel counter, anti-banding Patvirtinimai • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 • Saugumas: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 • Aplinkosauga: CE-RoHS: 2011/65/EU • Apsauga: IP67: IEC 60529-2013

How to use

Install the turret camera at the desired indoor or outdoor location using the supplied mounting hardware. Position and angle the camera to cover the intended field of view and connect to your network via PoE or other supported interfaces. Configure image resolution, rotation and analytics settings in the Hikvision management software or compatible VMS. Test detection and recognition distances and adjust placement and lighting as needed to achieve optimal image quality.

Recommendations

For best results, mount the camera at a height and angle that match the required detection and recognition distances (detection up to 89 m, recognition up to 17 m). Use PoE for a single-cable power and data connection, and ensure firmware and analytics modules are up to date to benefit from improved situational awareness and reduced bandwidth/storage consumption.
