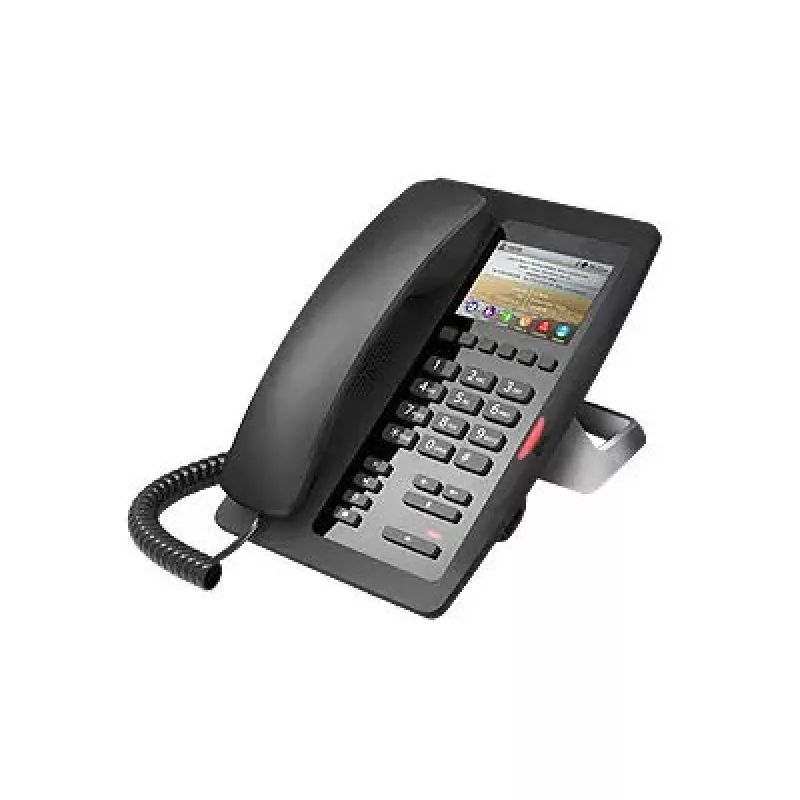

IP telefón Fanvil H5 čierny — LCD 3,5 palca (480×320), Fast Ethernet, VxWorks, káblový telefón

Fanvil H5 Black is a wired IP phone designed for hotel and office telephony. It features a 3.5" color LCD with 480×320 resolution, a wired handset and Fast Ethernet (10/100 Mbps) connectivity with IEEE 802.1x support. Running VxWorks and supporting common voice codecs including G.711a/u, G.722, G.723.1, G.726 and G.729ab, the H5 provides essential SIP-based calling and unified communications functionality. The device includes six programmable keys, USB port for mobile charging and support for SIP 2.0 and related RFCs, making it suitable as an intelligent terminal for guest rooms or business desks.

Advantages

The H5 combines a compact 3.5" color display with a stable VxWorks operating system to deliver consistent call handling and interoperability in SIP environments. Built-in support for multiple codecs ensures clear audio quality across networks, while Fast Ethernet and IEEE 802.1x compatibility provide reliable wired connectivity and network authentication. Programmable keys and hotel-oriented features such as hotline, call transfer and voice mail allow customization for hospitality workflows. A USB charging port adds practical convenience for guests or users.

Suitable for

• Hotel guest rooms and front-desk telephony
• Office desktops and reception areas
• SIP-based unified communications deployments
• Environments requiring simple programmable function keys (hotline, housekeeping, reception)

Key specifications

• Display: 3.5" LCD, 480 × 320 pixels
• Operating system: VxWorks
• Network: Fast Ethernet 10/100 Mbps with IEEE 802.1x support
• Audio codecs: G.711a/u, G.722, G.723.1, G.726, G.729ab
• Memory: 16 MB internal RAM, 8 MB flash
• Handset: wired handset, product color: black
• Programmable keys: 6 programmable function keys
• Interfaces: USB port for mobile charging
• SIP support: SIP 2.0 and related RFCs; UDP/TCP/TLS transport options

How to use

Connect the phone to power and the network using a Fast Ethernet cable. Configure SIP account details and server settings according to your SIP provider or PBX: enter SIP server domain, authentication information and transport protocol (UDP/TCP/TLS) as required. Program the six function keys through the phone web interface or provisioning system to map hotel services, hotlines or speed dials. Adjust audio codec priorities if necessary to match network conditions and ensure optimal call quality. Use the USB port to charge mobile devices while the phone remains operational.

Recommendations

For stable operation in multi-room or hotel deployments, use centralized provisioning and keep the firmware up to date. Enable IEEE 802.1x on network switches where authentication is required and prioritize voice traffic with QoS settings to preserve audio quality. When deploying in hospitality environments, preconfigure programmable keys for common services (housekeeping, reception, room service) to simplify guest use.
