Pasívny držiak König & Meyer 19744-000-55

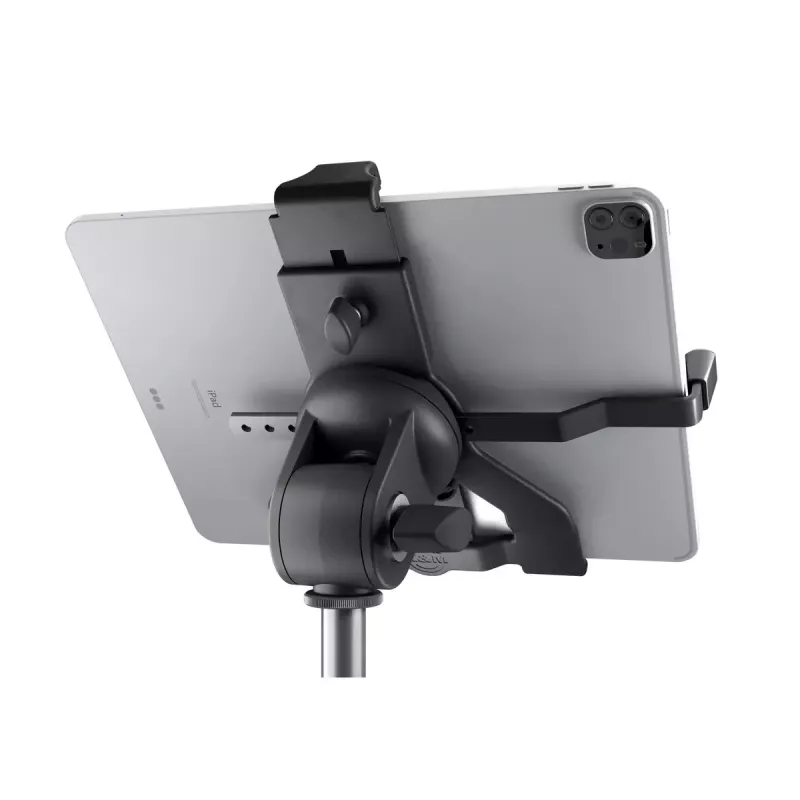

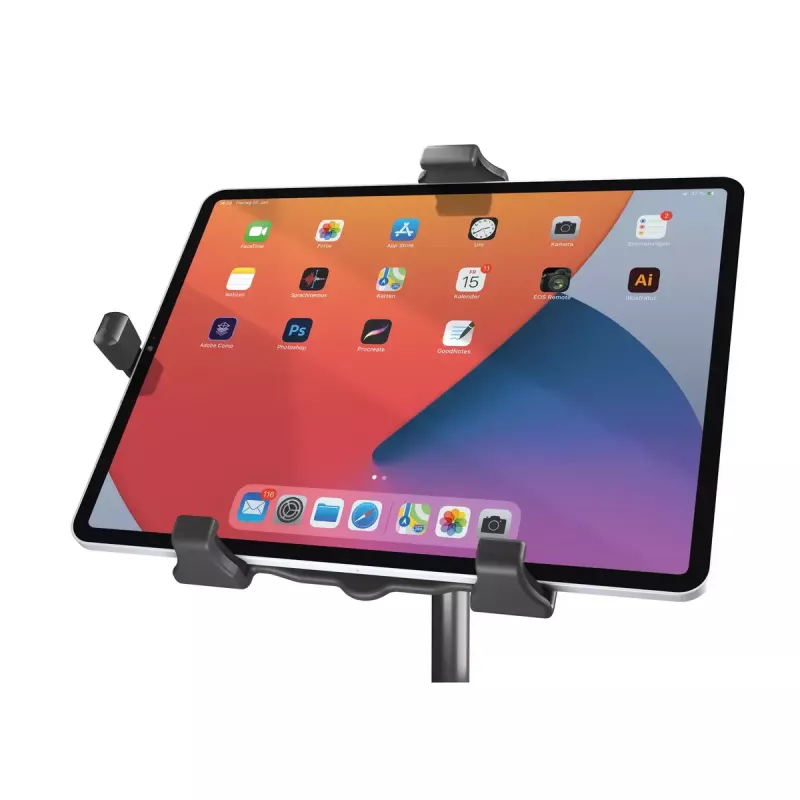

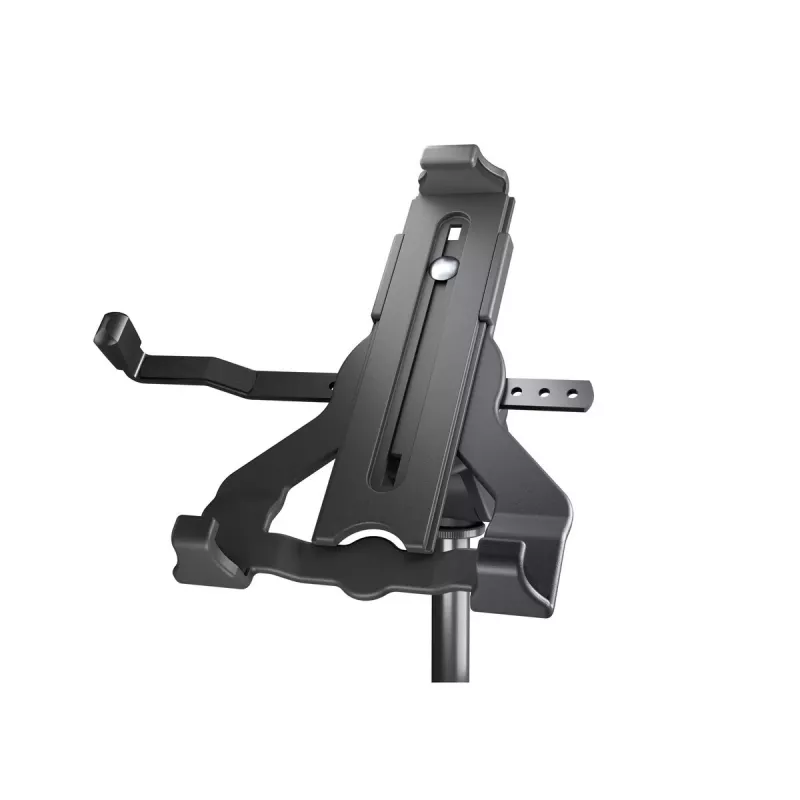

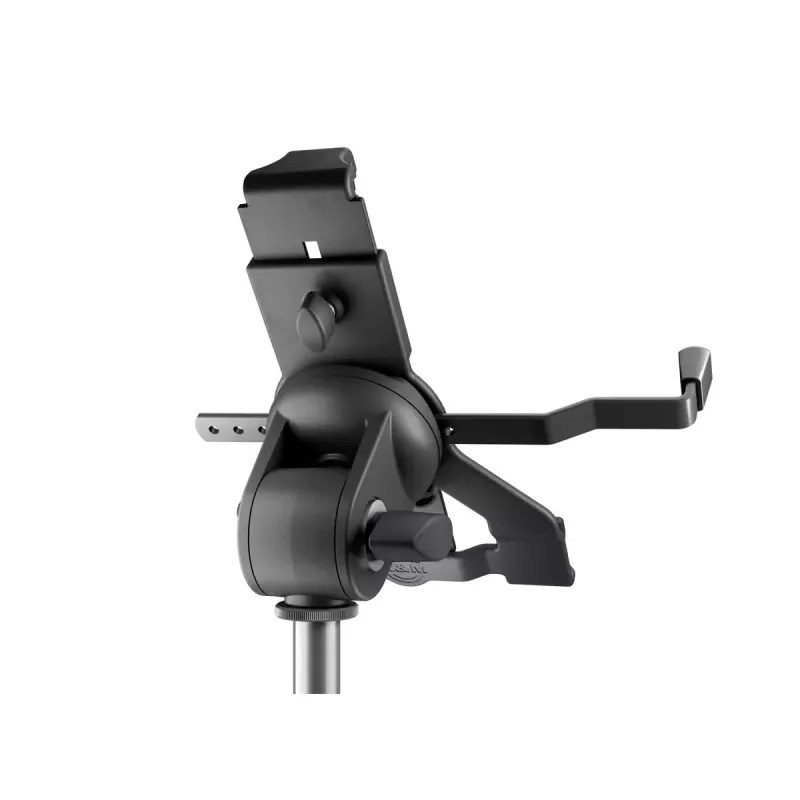

Universal tablet holder for tablets and UMPCs with an approximate screen size of 10" to 16". The passive holder König & Meyer 19744-000-55 is made from bio-based plastic containing over 50% renewable plant-based raw materials. It is designed for indoor use and has a sleek black finish. The clamping range is 158–280 mm and it accepts tablets with protective covers up to 20 mm thick. Overlapping clamping jaws with integrated rubber pads ensure a secure hold and prevent unwanted vibration noise while preserving access to the device's operating elements. An adjustable mounting bracket with felt padding adds safety in vertical position and prevents the tablet from slipping out under heavy use.

Advantages

The holder is lightweight (0.434 kg) and provides stable support thanks to its X-Grip device mount type. It can be swiveled and tilted for individual positioning, and its swivel tension is adjustable via a clamping screw. Rotation between portrait and landscape orientation is possible without additional tools, and independent turning is prevented. The holder features either a 3/8" or 5/8" internal thread, allowing easy attachment to microphone stands or similar supports. The use of bio-based plastic reduces dependence on petroleum-based resources and lowers CO2 emissions compared with conventional plastics.

Suitable for

• Tablets and UMPCs with screen sizes approx. 10"–16"
• Devices with protective cases up to 20 mm thick
• Indoor setups: home, office, rehearsal room, stage

Key specifications

• Brand: könig & meyer
• Model / MPN: 19744-000-55
• EAN: 4016842116553
• Type: Passive holder
• Device mount type: X-Grip
• Clamping range: 158–280 mm
• Accepts case thickness: up to 20 mm
• Material: bio-based plastic (over 50% renewable)
• Colour: Black
• Weight: 0.434 kg
• Mounting thread: 3/8" or 5/8" internal thread
• Proper use: Indoor

How to use

Place the tablet into the holder by adjusting the clamping jaws to the device width (158–280 mm) and ensure the rubber pads are aligned with the device edges. If the tablet has a case, verify the total thickness does not exceed 20 mm. Attach the holder to a microphone stand or similar support using the 3/8" or 5/8" internal thread. Adjust swivel and tilt to the desired viewing angle and tighten the clamping screw to set the swivel tension. Rotate the holder to the required portrait or landscape orientation as necessary.

Recommendations

For stable long-term use, check that the clamping jaws and felt-padded bracket hold the tablet securely before leaving the setup unattended. Avoid excessive force when tightening the clamping screw to prevent damage to the mechanism.
