Klauke 103R8 káblová koncovka, pocínovaná, meď, 16 mm², 5,5 mm, 20 mm

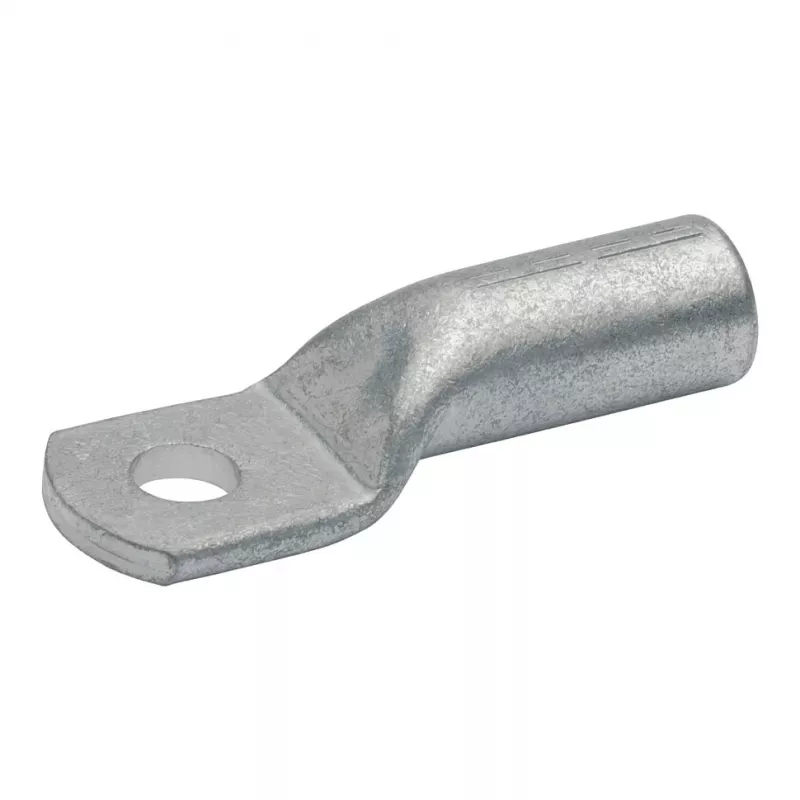

The Klauke 103R8 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Made from electrolytic copper with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This uninsulated crimp lug is suitable for fine-stranded, multi-stranded, and solid copper conductors, making it a versatile choice for various electrical installations.

Advantages

Tin-plated surface provides superior corrosion resistance and long-term reliability. Electrolytic copper construction ensures optimal electrical conductivity. Compliant with DIN 46235 standard for quality assurance. Suitable for a wide range of conductor types, including fine-stranded, multi-stranded, and solid copper.

Suitable for

• Electrical installations
• Control cabinets
• Automotive applications
• Power distribution systems

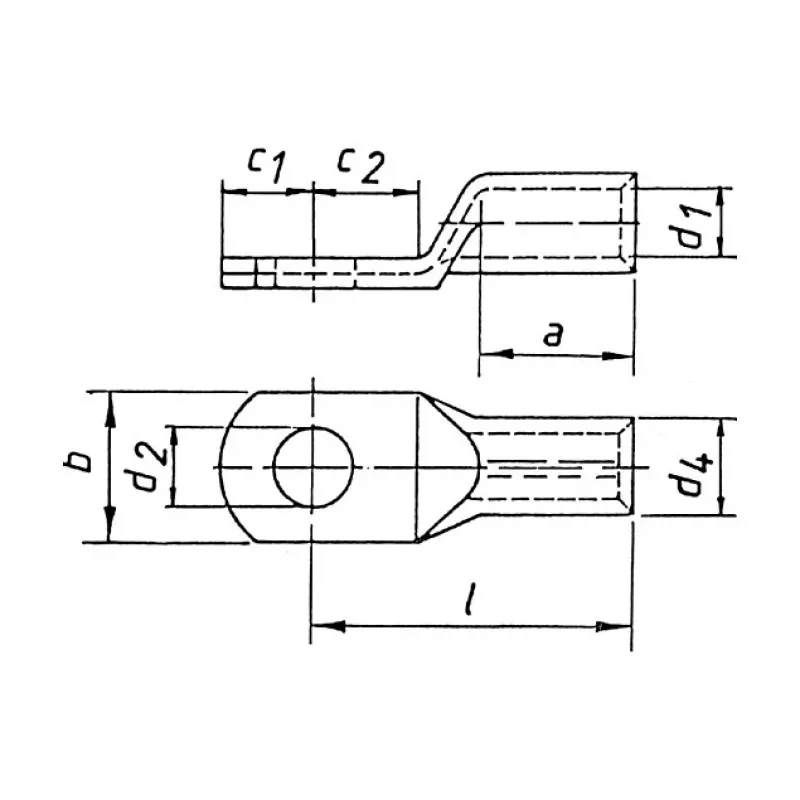

Key specifications

• Conductor cross-section: 16 mm²
• Bolt hole diameter: 5.5 mm (M5)
• Total length: 20 mm
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Tin-plated
• Lug type: Tubular cable lug
• Connection method: Crimp
• Insulation: Uninsulated
• Barrel inner diameter: 5.8 mm
• Barrel outer diameter: 8.5 mm
• Palm width: 10 mm
• Max. operating temperature: 120 °C
• Max. voltage: 1000 V
• RoHS compliant: Yes
• Manufacturer series: R-Series

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper conductor preparation. Always follow manufacturer guidelines for installation and safety.
