Konektorová lišta Harting 09 03 196 6921 — 96 pólov, 3 rady

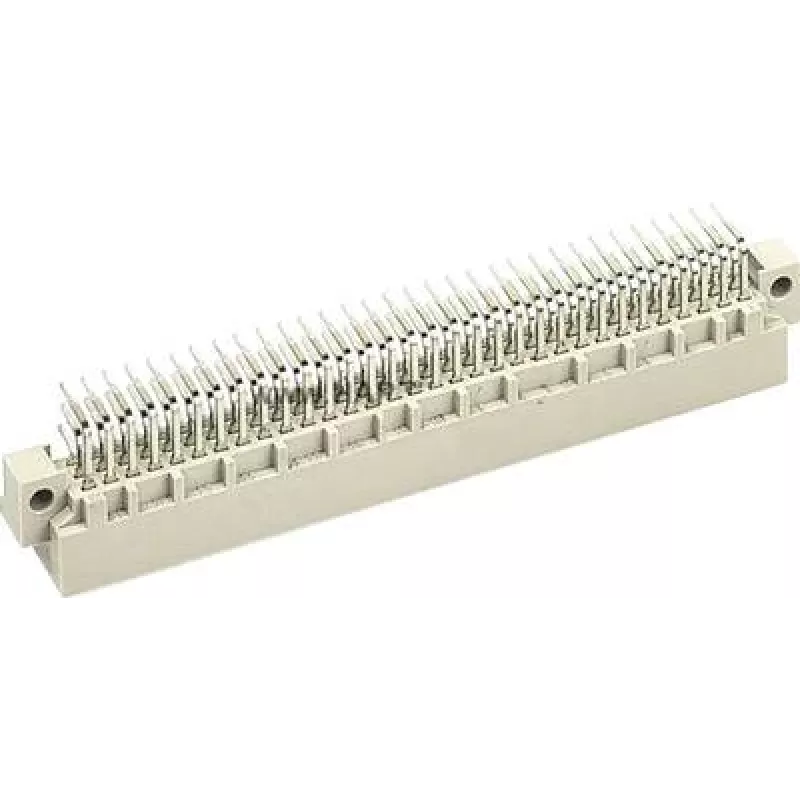

Harting 09 03 196 6921 connector strip is a compact, high‑density multi‑pole interface with 96 poles organized in three rows. Designed for industrial and electronic equipment, this connector strip provides a reliable means to route signals and low‑power lines where space is limited. The assembly is suitable for panel or device integration and supports applications that require multiple parallel connections within a single, standardized housing.

Advantages

The connector strip offers a high contact density that reduces the overall footprint compared to multiple single connectors. Its three‑row configuration enables organized grouping of signals, simplifying wiring and saving panel space. The design emphasizes mechanical stability and consistent contact performance for repeated mating cycles, making it suitable for equipment that requires frequent connection and disconnection. The product is compatible with common industrial mounting practices and can be integrated into control cabinets, instrumentation, and custom enclosures.

Suitable for

• Industrial control panels and cabinet wiring
• Electronic equipment backplanes and signal distribution
• Test systems and automation interfaces
• Compact device or module interconnections

Key specifications

• Number of contacts: 96
• Contact arrangement: 3 rows
• Application: signal and low‑power connections
• Mounting: panel or device integration
• Contact density: high‑density multi‑pole format

How to use

Install the connector strip into the designated panel or device cutout following the equipment manufacturer’s mechanical mounting guidelines. Ensure alignment of the mating connector and maintain correct orientation during insertion to avoid contact damage. Terminate wires or cable assemblies to the mating side according to the chosen wiring method and validate each connection for continuity and correct routing before powering the system. When mating and unmating, apply steady axial force and avoid twisting motions to preserve contact life.

Recommendations

Use appropriate strain relief and cable management to prevent mechanical stress on the connector. Verify compatibility of mating housings and follow recommended torque values for any fastening hardware. For reliable long‑term performance in industrial environments, consider environmental protection measures such as sealing, shielding, or placement inside an enclosure depending on exposure conditions.
