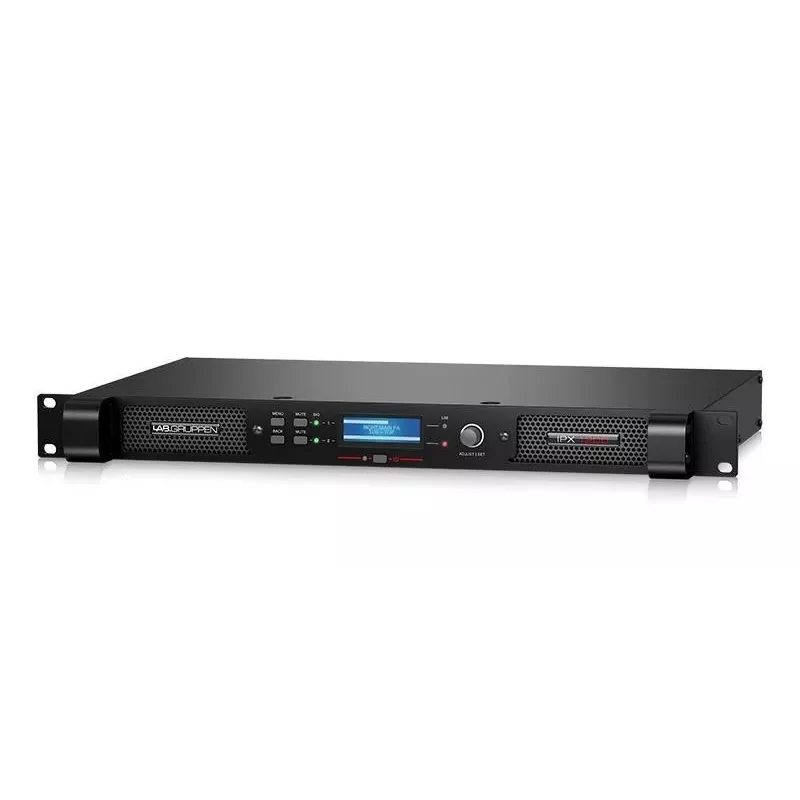

Lab Gruppen IPX 1200 zosilňovač 2x500W @2Ohm

The Lab Gruppen IPX 1200 is a professional-grade 2-channel power amplifier designed for demanding audio applications. With 2x500W at 2 Ohms and advanced Dante/AES67 networking, it delivers exceptional performance and flexibility for installed sound and touring systems.

Advantages

Compact 1U design with high power density; integrated DSP for precise system tuning; reliable Class D efficiency; comprehensive protection circuitry ensures long-term reliability.

Suitable for

• Professional live sound reinforcement
• Fixed installations in clubs, theaters, and houses of worship
• Portable PA systems
• High-performance audio networking applications

Key specifications

• Channels: 2
• Amplifier Class: Class D
• Power Output per Channel (2 Ohms): 2 x 500 W
• Power Output per Channel (4 Ohms): 2 x 600 W
• Power Output per Channel (8 Ohms): 2 x 300 W
• Bridged Power Output (4 Ohms): 1 x 1200 W
• Frequency Response: 20 Hz - 20 kHz (+0.5/-1 dB)
• Total Harmonic Distortion (THD+N): < 0.05%
• Signal-to-Noise Ratio (SNR): > 104 dB (A-weighted)
• Input Connectors: 2 x XLR (Analog), 2 x RJ45 (Dante/AES67)
• Output Connectors: 2 x SpeakON NL4
• Onboard DSP: Yes (EQ, Delay, Crossover, Limiter)
• Audio Networking: Dante/AES67
• Rack Size: 1U
• Cooling: Temperature-controlled fan
• Input Impedance: 10 kOhm balanced
• Voltage Gain: 32 dB
• Protection Features: Over-current, DC, thermal, short circuit, mains over/under voltage

Recommendations

For optimal performance, pair with Lab Gruppen speakers and use shielded XLR cables. Ensure adequate ventilation in rack installations.
