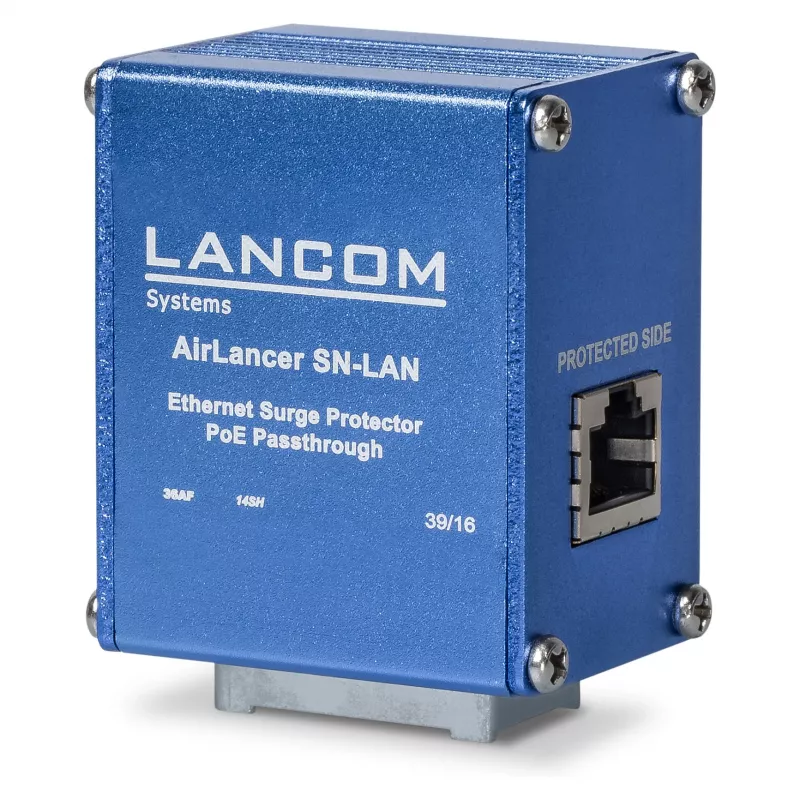

LANCOM AirLancer SN-LAN Outdoor prepäťová ochrana

The LANCOM AirLancer SN-LAN is a high-performance outdoor surge protector designed to safeguard Ethernet networks against lightning strikes and voltage surges. Built for demanding outdoor environments, it provides reliable protection for PoE and Gigabit Ethernet connections, ensuring uninterrupted operation of critical network infrastructure.

Advantages

Robust IP67-rated housing protects against dust and water ingress, making it ideal for outdoor installations. Supports PoE up to 60W (IEEE 802.3af/at/bt) and Gigabit Ethernet (10/100/1000Base-T) with all 8 wires protected. Integrated M4 grounding terminal and die-cast aluminum housing ensure effective surge dissipation.

Suitable for

• Outdoor wireless access points and bridges
• IP cameras and surveillance systems
• Industrial Ethernet equipment in harsh environments
• PoE-powered devices requiring surge protection

Key specifications

• Protection Type: Ethernet (LAN) Surge Protection
• Data Rate: 10/100/1000Base-T (Gigabit Ethernet)
• PoE Compatibility: IEEE 802.3af/at/bt (up to 60W)
• Connector: RJ45 (Shielded), 2 ports (Input/Output)
• Nominal Discharge Current (In) Line-to-Ground: 5 kA (8/20 µs)
• Max. Discharge Current (Imax) Line-to-Ground: 10 kA (8/20 µs)
• Voltage Protection Level (Up) Line-to-Ground: <600 V
• IP Rating: IP67
• Operating Temperature: -40°C to +85°C
• Housing Material: Die-cast aluminum
• Grounding: Integrated M4 grounding terminal
• Mounting: Wall or mast mounting
• Standards: IEC 61643-21, EN 61000-4-5

Recommendations

For optimal protection, ensure proper grounding and use shielded Ethernet cables. Ideal for outdoor network installations where reliability and durability are paramount.
