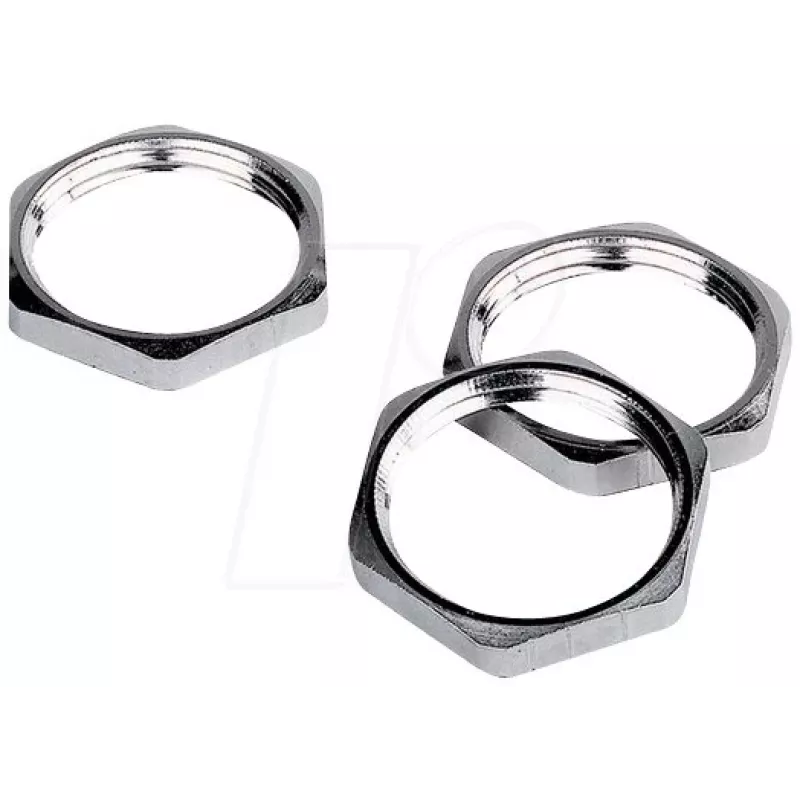

LAPP SKINDICHT SM-M 50X1.5 kontramatica M50 x 1,5 niklovaná mosadz SKINDICHT SM-M 50X1,5 COUNT. N

With a temperature range from -60 °C to +200 °C, this counter nut thrives where others fail. The LAPP SKINDICHT SM-M 50X1.5 is a precision-engineered locking nut for M50 x 1.5 metric threads, crafted from nickel-plated brass for exceptional corrosion resistance and durability in demanding industrial environments.

Overview

Part of the SKINDICHT SM-M series, this counter nut is designed to secure cable glands and other threaded components. Its robust construction and high-quality materials ensure reliable performance in high-temperature and corrosive settings. The nickel plating provides a smooth, metallic finish that resists oxidation and wear, extending the product's service life.

What stands out

• Wide operating temperature range: -60 °C to +200 °C
• High corrosion resistance thanks to nickel-plated brass
• Precision M50 x 1.5 metric thread for secure fastening
• Compact design with 65 mm outer diameter and 7 mm thickness
• Complies with DIN EN 60423 standards

Technical details

• Thread type: Metric
• Nominal thread size: M50
• Thread pitch: 1.5 mm
• Material: Nickel-plated brass
• Wrench size: 60 mm
• Outer diameter (D): 65 mm
• Thickness (H): 7 mm
• Minimum operating temperature: -60 °C
• Maximum operating temperature: +200 °C
• Product type: Counter nut
• Application: Securing cable glands and threaded components
• Corrosion resistance: High
• Standard compliance: DIN EN 60423
• Color: Metallic
• Series: SKINDICHT SM-M
• Mounting method: Threaded
• Environmental suitability: Industrial, high temperature environments

Our verdict

For applications demanding extreme temperature resilience and corrosion protection, the LAPP SKINDICHT SM-M 50X1.5 is an outstanding choice. Its nickel-plated brass construction and precise threading make it a reliable component for securing cable glands in harsh industrial settings.
