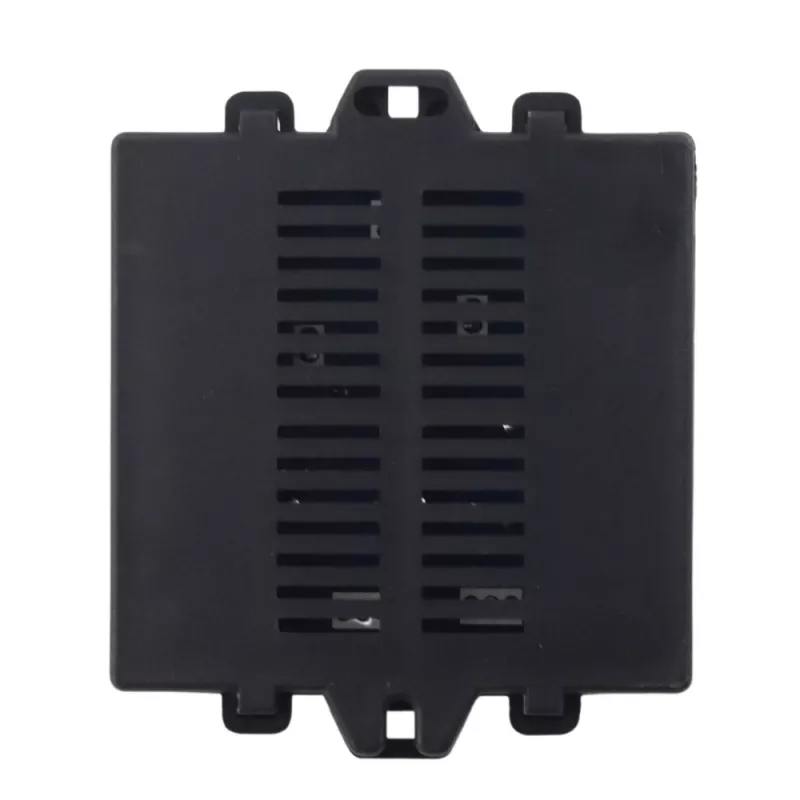

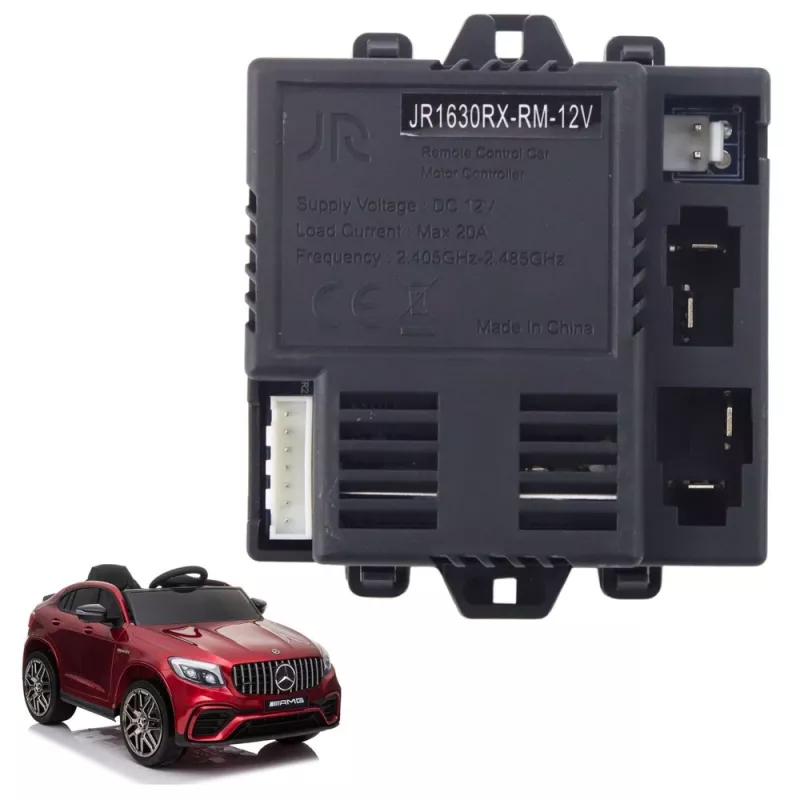

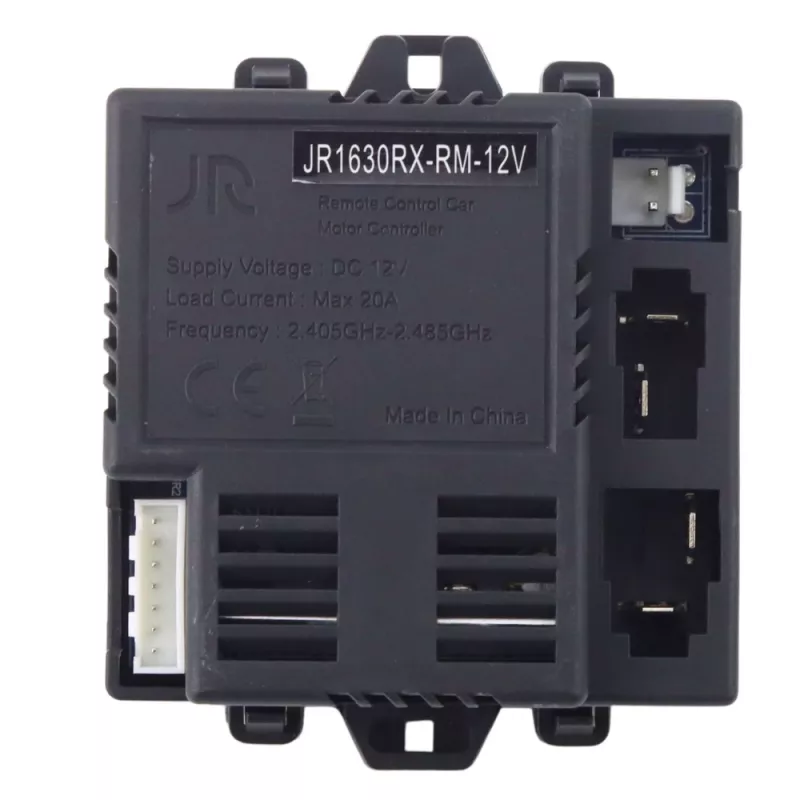

LEAN TOYS JR1630RX-RM-12V centrálny modul pre elektrické detské vozidlo QLS-5688

The LEAN TOYS JR1630RX-RM-12V Central Module is a high-quality replacement control unit designed specifically for the QLS-5688 electric ride-on car. This plug-and-play module integrates receiver, motor controller, and safety features to restore or upgrade your child's vehicle performance.

Advantages

Direct replacement for original module; supports 2.4 GHz remote control for reliable operation; built-in overload and short circuit protection; soft start and brake functions for smooth driving; compatible with music player interface and light control output.

Suitable for

• QLS-5688 electric ride-on cars
• 12V battery-powered children's vehicles
• Replacement or upgrade of faulty control modules

Key specifications

• Operating Voltage: 12V DC
• Remote Control Frequency: 2.4 GHz
• Number of Motors Supported: 2
• Motor Voltage Output: 12V DC
• Control Functions: Forward, Reverse, Left, Right, Stop
• Additional Features: Soft Start, Brake Function, Light Control Output, Music Player Interface
• Connection Interface: Multi-pin connectors for motors, battery, steering, lights, audio
• Housing Material: ABS Plastic
• Installation Type: Plug-and-Play Replacement
• Safety Features: Overload Protection, Short Circuit Protection
• Indicator Lights: Power Status LED
• Speed Modes: 2-3 Forward Speeds, 1 Reverse Speed
• Maximum Current Output: Up to 10A per motor channel
• Operating Temperature: -10°C to 50°C
• Color: Black
• Certifications: CE, RoHS

Recommendations

Ensure compatibility with your QLS-5688 model before purchase. Professional installation recommended if not familiar with electrical connections.
