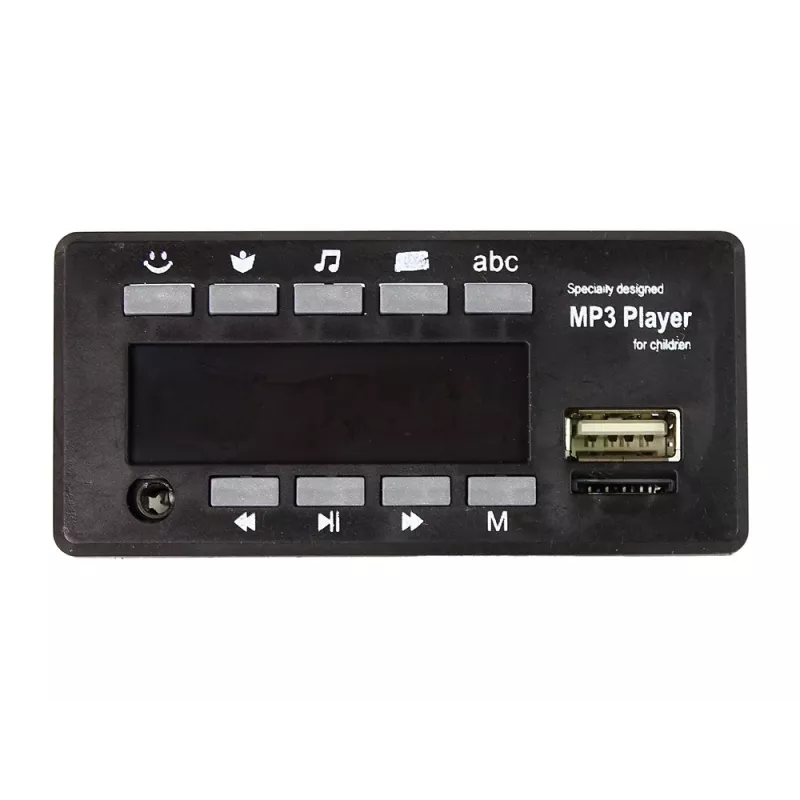

LEAN CARS Hudobný panel pre A011 24V

Enhance your Whadda A011 Robot Arm with the LEAN CARS Music Panel, an audio expansion module that adds sound effects and music playback capabilities. Designed for seamless integration with the A011 main board, this panel allows you to program custom audio sequences for educational robotics and DIY automation projects.

Advantages

Easy to install and control via the A011 main board's microcontroller. Supports MP3 and WAV audio formats from a microSD card (up to 32 GB). Provides clear sound output with a maximum power of 3W to a 4-8 Ohm speaker.

Suitable for

• Whadda A011 Robot Arm users
• Educational robotics projects
• DIY automation and sound integration

Key specifications

• Product Type: Audio Expansion Module
• Compatibility: Whadda A011 Robot Arm Main Board
• Audio Storage: MicroSD card slot (max 32 GB)
• Supported Audio Formats: MP3, WAV
• Audio Output: Speaker output, max 3W
• Recommended Speaker Impedance: 4-8 Ohm
• Operating Voltage: 24V DC
• Power Source: Supplied by A011 Main Board
• Interface: Dedicated connector for A011 main board
• Control Method: Via A011 main board programming
• Current Consumption (Peak): ~200 mA

Recommendations

For full functionality, you will need a microSD card and a compatible speaker (sold separately). This module is designed exclusively for the Whadda A011 system.
