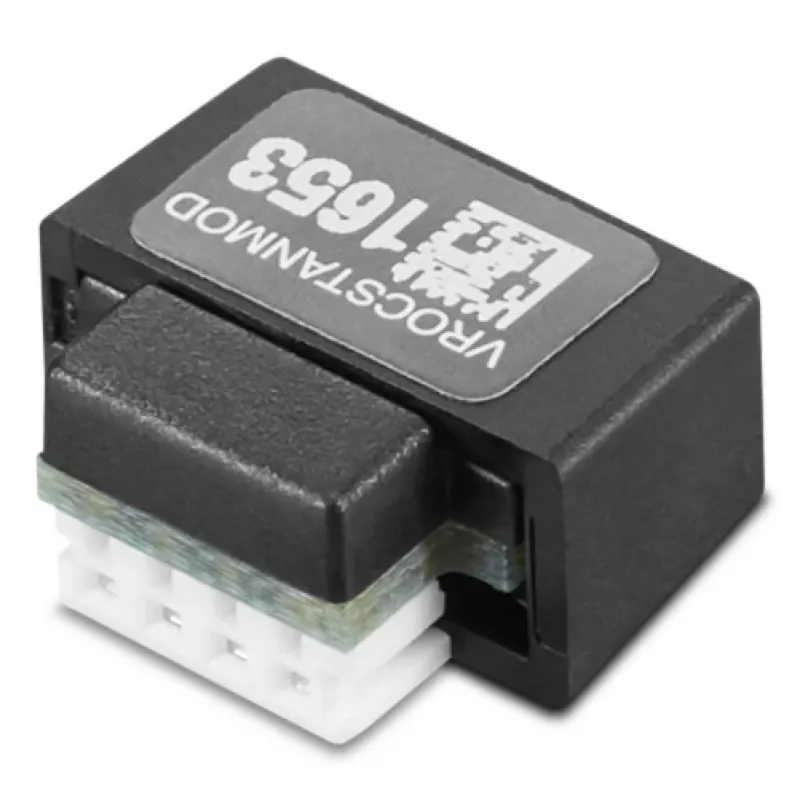

Lenovo ThinkStation VROC Key modul od Intel - NVMe RAID 0/1 aktivácia pre ThinkStation P-sériu

Unlock the full potential of NVMe storage in your Lenovo ThinkStation P-series workstation with the ThinkStation VROC Key Module by Intel. While many workstations ship with NVMe slots, only a few can harness them in RAID without additional hardware. This small internal module activates Intel Virtual RAID on CPU (VROC), enabling RAID 0 and RAID 1 directly through the CPU—no separate RAID controller card required. It's the clean, cost-effective way to boost performance or protect data on supported ThinkStation models.

Highlights

• Enables Intel VROC technology for NVMe SSDs
• Supports RAID 0 (performance) and RAID 1 (mirroring)
• Proprietary motherboard header for seamless integration
• Compatible with select ThinkStation P-series workstations
• Low-profile internal module—no extra power or cabling
• Managed via Intel RSTe / VROC GUI

In daily use

Install the VROC Key Module once, and your ThinkStation gains the ability to configure NVMe drives into fast, resilient arrays. For creative professionals, engineers, or data analysts, RAID 0 can dramatically accelerate large file transfers and application load times. For those who cannot afford downtime, RAID 1 provides real-time mirroring without taxing the CPU. The module draws power directly from the motherboard, so there are no additional cables or power bricks. It's a set-and-forget upgrade that stays out of sight.

Full specifications

• Product Type: VROC Key Module
• Technology: Intel Virtual RAID on CPU (VROC)
• RAID Level Support (NVMe): RAID 0, RAID 1
• Interface: Proprietary Motherboard Header
• Compatibility: Select Lenovo ThinkStation P-series Workstations (e.g., P520, P720, P920, P330, P340, P350, P560, P620, P740, P940, P7, P9)
• Supported Drives: NVMe Solid State Drives (SSDs)
• Form Factor: Small Internal Module
• Manufacturer: Lenovo
• Intel Technology: Yes
• RAID Management: Intel RSTe / VROC GUI
• System Requirement: Compatible Intel Xeon Processor and Motherboard
• Installation: Internal
• Power Source: Motherboard
• Package Contents: 1 x Lenovo ThinkStation VROC Key Module
• Warranty: 1 Year Limited

Final note

For ThinkStation owners who need NVMe RAID without the complexity of add-in cards, this module is the official, reliable solution. It's backed by Lenovo and Intel, ensuring compatibility and performance.
