Lumens VC-TR61-B 4K PTZ kamera s 30-násobným zoomom, automatickým sledovaním a PoE+

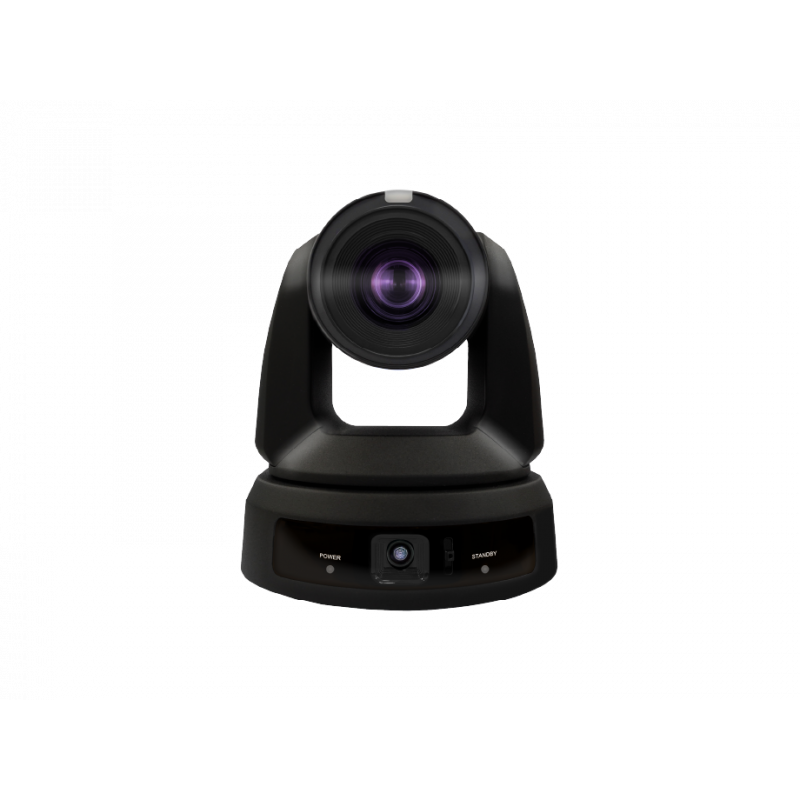

Lumens VC-TR61-B is a black PTZ camera for presentations, teaching, conferencing and live video production. It combines a motorised camera with a 1/1.8-inch 8.48 MP sensor and 30× optical zoom with a second panoramic 4K camera. The main lens has a 59.2° horizontal viewing angle; the panoramic camera covers 85.1° and helps the tracking system follow the presenter.

HDMI and IP support up to 4K at 60 frames per second. The 3G-SDI output delivers up to 1080p60, while USB 3.0 supports up to 2160p30. Independent IP streams are available for the PTZ and panoramic cameras. Stage, Everywhere and Partition tracking modes, automatic framing and picture-in-picture functions support different presentation layouts.

The head pans ±170° and tilts from −30° to +90°, with 256 preset positions. Digital zoom is 8× and works only on HDMI/SDI at 1080p or 720p. Interfaces include RS-232 input/output, Ethernet and a 3.5 mm line-level audio input. Control uses VISCA or ONVIF; streaming protocols include RTSP, RTMP, RTMPS and SRT.

Power is supplied by 12 V DC or PoE+ IEEE 802.3at. Consumption is 25 W on DC or 26 W on PoE. The camera has WDR, 3D noise reduction and a specified minimum illumination of 0.5 lux at F1.6 with AGC enabled. Manufacturer model VC-TR61 in the black B variant weighs 2 kg net.
