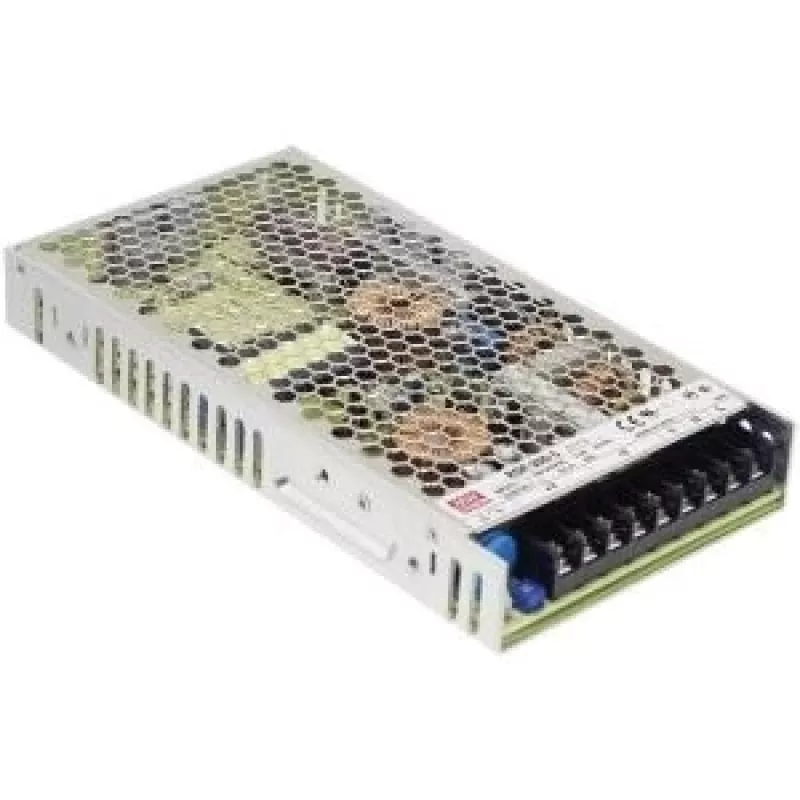

MEAN WELL RSP-200-15 201W 1U low-profile napájací zdroj 15V 13,4A Active PFC

The RSP-200-15 from MEAN WELL stands out in the 200W power supply class by packing 201W into a slim 1U-compatible metal chassis. Unlike many rivals that derate above 40°C, this unit delivers full power up to 50°C and only derates linearly to 60% at 70°C, making it a reliable choice for tight industrial enclosures and rack systems. Active PFC and a wide 88–264VAC input ensure global compatibility without the need for a voltage selector switch.

Highlights

• 201W continuous output at 15V DC, 13.4A
• Low-profile 1U height (30mm) with built-in DC fan for forced air cooling
• Active PFC >0.95 at full load, meeting EN61000-3-2 harmonic requirements
• Wide input range: 88–264VAC or 124–370VDC
• Protections: short circuit, overload, over voltage, over temperature
• Remote ON-OFF control and LED power indicator
• Safety: UL60950-1, TUV EN60950-1, CB, CE
• 3-year warranty

In daily use

Installation is straightforward thanks to the enclosed metal casing and screw terminal connections. The built-in fan adjusts speed based on load and temperature, keeping acoustic noise reasonable in office or lab environments. The remote ON-OFF function allows the power supply to be controlled by an external logic signal, ideal for automated test systems or energy-saving shutdown sequences. The LED indicator gives immediate visual confirmation of output status.

Full specifications

• Output voltage: 15V DC
• Output current: 13.4A
• Rated power: 201W
• Input voltage: 88–264VAC (124–370VDC)
• Efficiency: 88% typical
• Operating temperature: -30°C to +70°C (derating above 50°C)
• Storage temperature: -40°C to +85°C
• Humidity: 20–90% RH non-condensing
• Cooling: built-in DC fan
• Protections: short circuit, overload, over voltage, over temperature
• Safety standards: UL60950-1, TUV EN60950-1, CB, CE
• EMC: EN55022, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
• MTBF: >200K hrs per MIL-HDBK-217F
• Remote control: built-in ON-OFF
• LED indicator: power on
• Housing: metal
• Warranty: 3 years

Final note

The MEAN WELL RSP-200-15 is a dependable, feature-rich power supply for industrial automation, LED lighting, test equipment, and any application requiring a compact high-wattage 15V rail. Its active PFC and wide temperature range set it apart from basic open-frame alternatives.
