Menič HUAWEI SUN2000-15KTL-M5 15 kW 3-fázový

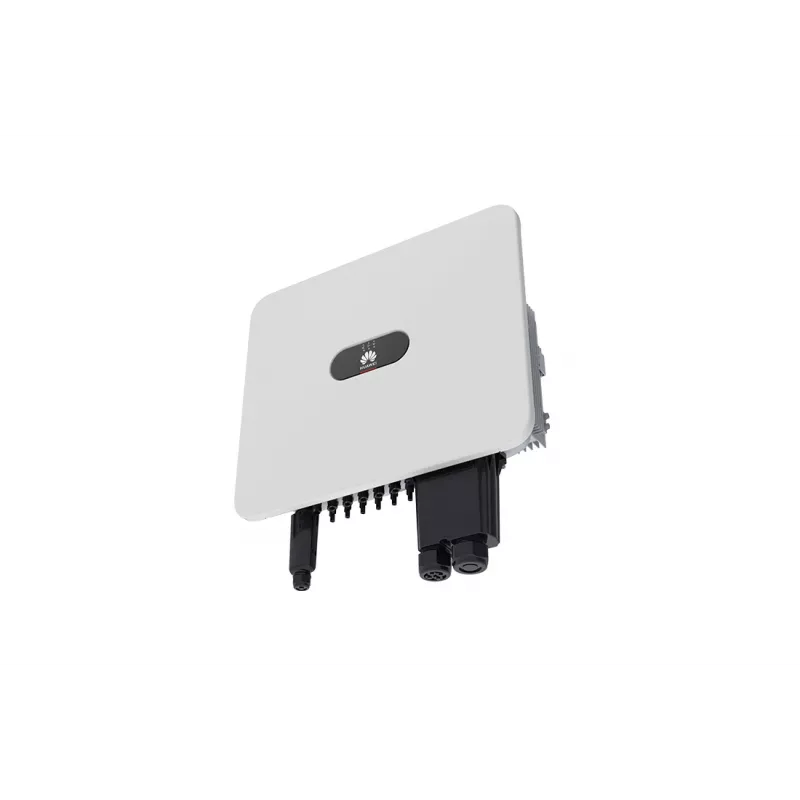

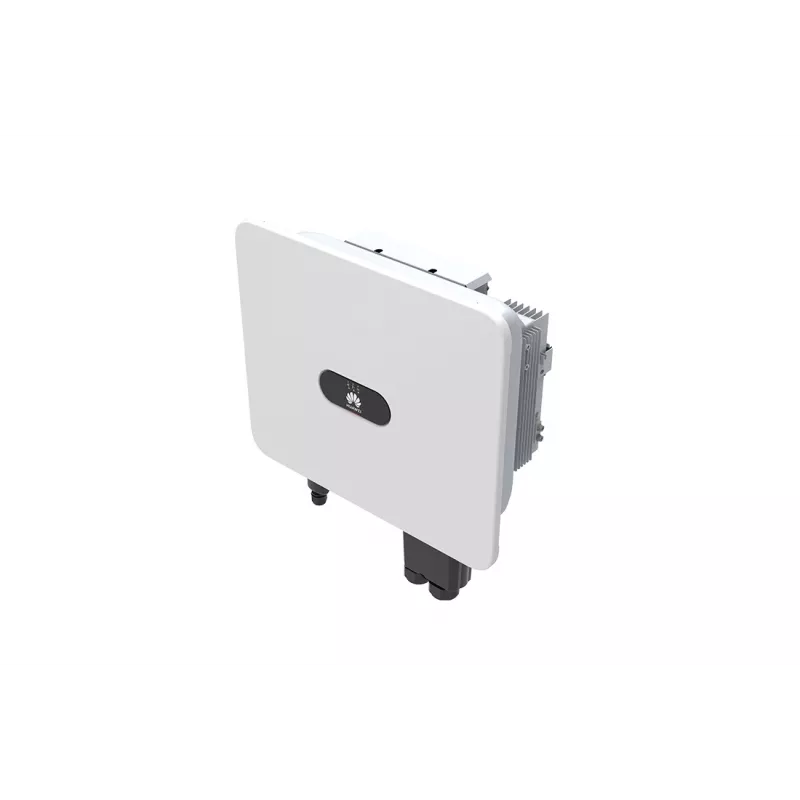

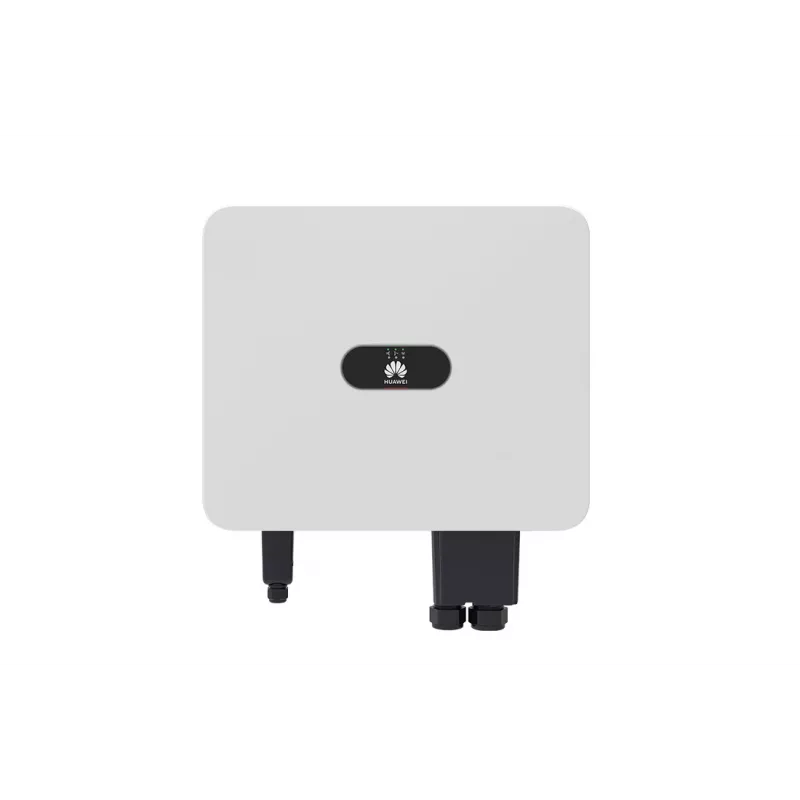

HUAWEI SUN2000-15KTL-M5 is a three-phase solar inverter with 15 kW nominal AC output designed for residential and commercial PV systems. It converts DC from PV arrays into three-phase grid-compliant AC power, supports system monitoring and compact installation, and is intended for rooftop or ground-mounted configurations where reliable energy conversion and grid connection are required.

Advantages

The SUN2000-15KTL-M5 offers high conversion efficiency (maximum 98.4%, European efficiency 98.0%), dual MPPT inputs for improved energy harvest, and a nominal AC output of 15 kW suitable for medium-sized PV installations. The unit is part of Huawei's High Current Inverter family and provides a balance of performance and compact design. Packaging and logistics data indicate a single unit packed with a gross weight of 35 kg and no embedded battery.

Suitable for

• Residential PV systems requiring three-phase output
• Small commercial or light industrial rooftop installations
• Ground-mounted medium-sized solar arrays up to the inverter's PV input limits

Key specifications

• Producer: Huawei
• Model: SUN2000-15KTL-M5
• Product family: High Current Inverter
• Nominal output power (AC): 15000 W
• Max. PV input power (DC): 22500 Wp
• Grid connection: Three-phase
• Max. efficiency: 98.4%
• Euro efficiency: 98.0%
• Number of MPPTs: 2
• Net weight: 30.00 kg
• Gross weight: 35.00 kg
• Packing quantity: 1 pc
• Embedded battery: No
• WEEE tax: Yes (WEE classification CL109:4:2017-04-01)
• Warranty: 60 months

How to use

Install the inverter according to local electrical codes and the manufacturer's installation manual. Mount the SUN2000-15KTL-M5 in a ventilated, weather-protected location suitable for three-phase grid connection. Connect PV arrays to the DC inputs observing MPPT string recommendations, and connect the AC output to the building's three-phase distribution or the grid via a certified electrician. Configure monitoring and protection settings through the inverter's communication interface before commissioning.

Recommendations

Use qualified installation and maintenance personnel for all electrical connections and commissioning. Keep ambient temperature and ventilation within Huawei's specified limits, verify that PV array power does not exceed 22500 Wp, and follow local grid codes and safety standards when integrating the SUN2000-15KTL-M5.
