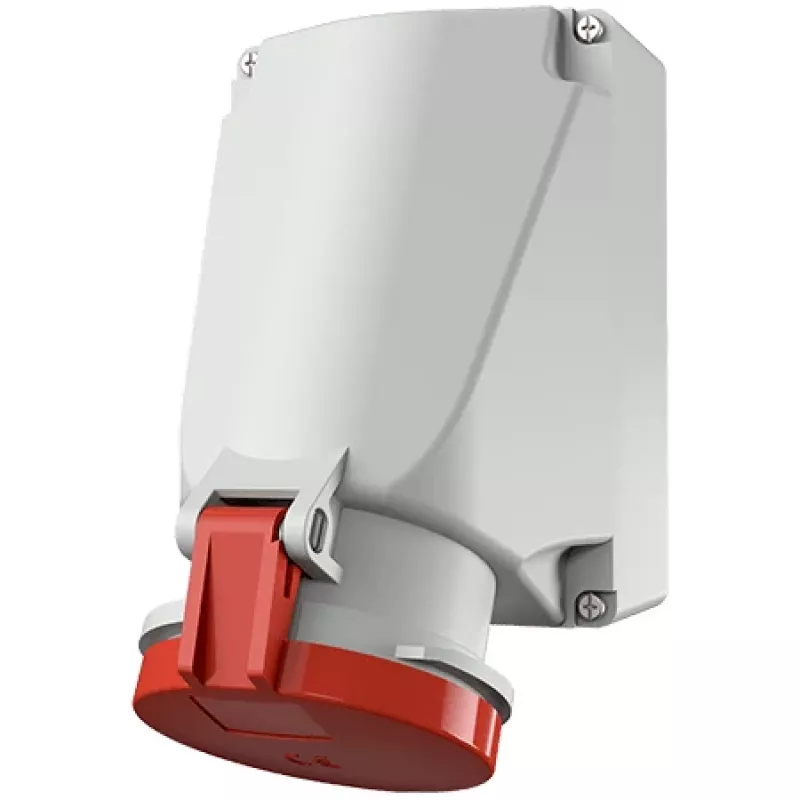

MENNEKES PowerTOP Xtra nástenná zásuvka 63A 5p 6h 400V IP44 červená 21253A

The MENNEKES 21253A is a wall-mounted receptacle engineered for demanding industrial power distribution. Its 63 A current rating and 5-pole configuration (3P+N+PE) with a 6h earth position deliver reliable three-phase power, while the IP44 rating ensures protection against splashing water and solid objects. The red Amaplast housing provides high visibility and durability in workshops and production environments.

Highlights

• 63 A current rating for heavy-duty applications
• 5-pole (3P+N+PE) with 6h earth contact position
• IP44 protection against splashing water and solid objects
• Robust red Amaplast (polyamide) housing
• Screw terminals accept cables from 6 mm² to 16 mm²

In daily use

Install the receptacle on a wall near machinery or workstations. Connect conductors via the screw terminals, ensuring proper torque. The hinged cover protects the contacts when not in use. Suitable for 400 V networks at 50/60 Hz, it pairs with matching MENNEKES plugs for secure power delivery.

Full specifications

• Brand: MENNEKES
• Model: 21253A
• MPN: 21253A
• EAN: 4015394040217
• Product type: Wall-mounted receptacle
• Series: PowerTOP Xtra
• Current rating: 63 A
• Voltage rating: 400 V
• Frequency: 50/60 Hz
• Number of poles: 5-pole (3P+N+PE)
• Earth contact position: 6h
• Ingress protection: IP44
• Housing material: Amaplast (polyamide)
• Connection technology: Screw terminals
• Minimum cable cross-section: 6 mm²
• Maximum cable cross-section: 16 mm²
• Colour: Red
• Standards: IEC 60309-1, IEC 60309-2
• Operating temperature: -25°C to +40°C
• Mounting type: Wall mounting
• Cover type: Hinged cover
• Contact material: Nickel-plated brass

Final note

Built to IEC 60309 standards, the MENNEKES 21253A ensures safe and reliable power connections in industrial settings.
