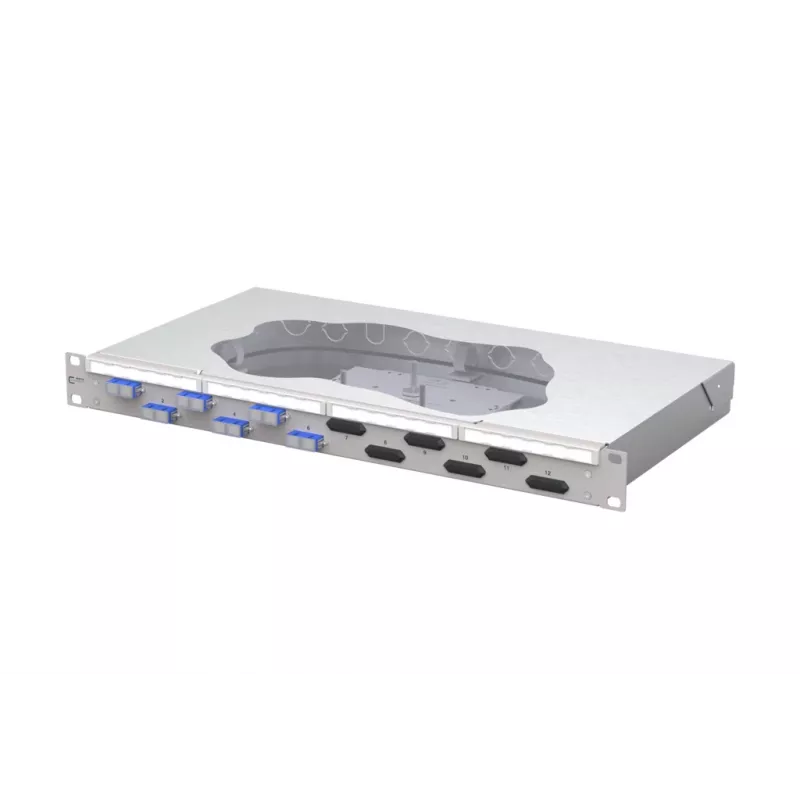

METZ CONNECT 6-portový SC-D OS2 optický zvárací patch panel, 1U, 12 vlákien, svetlosivá 150459E206-F

Managing fiber optic connections in a data center or enterprise network often means dealing with fragile splices and tangled cables. The METZ CONNECT 150459E206-F splice patch panel solves this by providing a robust, organized enclosure for splicing and distributing up to 12 single-mode fibers in a compact 1U rack space. This panel is engineered for reliable, low-loss connections, making it an essential component for high-speed backbone and FTTH applications.

Who is it for

This panel is ideal for network installers, data center technicians, and telecom engineers who need a durable, easy-to-manage fiber distribution point. It suits projects requiring OS2 single-mode performance, such as campus backbones, enterprise LANs, and service provider access networks. If you need to splice incoming fiber cables to pigtails and present duplex SC ports for patching, this unit delivers a clean, professional solution.

Main features

• 6 duplex SC (SC-D) adapter ports on the front, supporting up to 12 fibers (6 pairs).

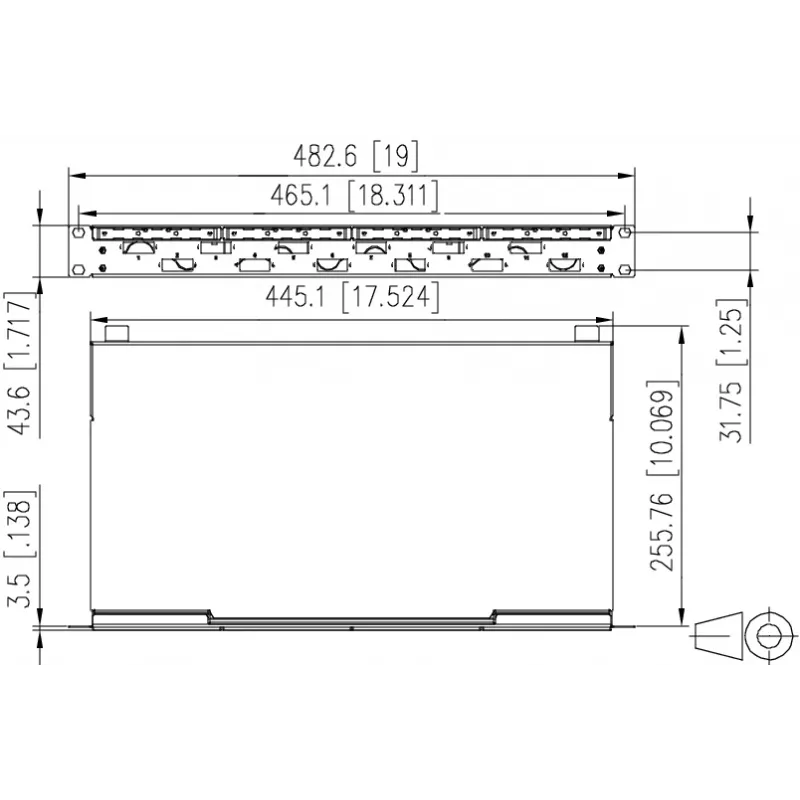

• 1U 19-inch rack mount design with a light grey (RAL 7035) powder-coated steel chassis.
• Integrated splice cassette with capacity for 12 fusion splices and splice protectors.
• OS2 single-mode fiber compatibility (G.652.D / G.657.A1/A2) for low attenuation and high return loss.
• Rear cable entry with two M20/M25 cable glands for secure, strain-relieved cable management.
• Typical insertion loss < 0.25 dB and return loss > 50 dB, ensuring signal integrity.
• Compliant with RoHS, REACH, and IEC 61753-1 standards.

Specifications

• Product type: Fiber optic splice patch panel
• Mounting: 19-inch rack, 1U height
• Front connector type: SC-D (duplex SC)
• Number of ports: 6 (12 fibers total)
• Fiber mode: Single-mode OS2
• Splice capacity: 12 splices (1 cassette)
• Material: Steel, powder-coated
• Color: Light grey (RAL 7035)
• Cable entry: Rear, 2x M20/M25 glands
• Protection class: IP20
• Operating temperature: -10°C to +60°C
• Insertion loss (typical): < 0.25 dB
• Return loss (typical): > 50 dB
• Certifications: RoHS, REACH, IEC 61753-1
• Included accessories: Splice cassette, cable glands, mounting kit, splice protectors

Tips

For best results, use a fusion splicer with a high-precision cleaver to achieve low splice loss. Label each port and fiber clearly before installation to simplify future moves, adds, and changes. Ensure the rack has adequate rear clearance for cable routing and strain relief. Always follow local safety regulations when handling fiber optic components.
