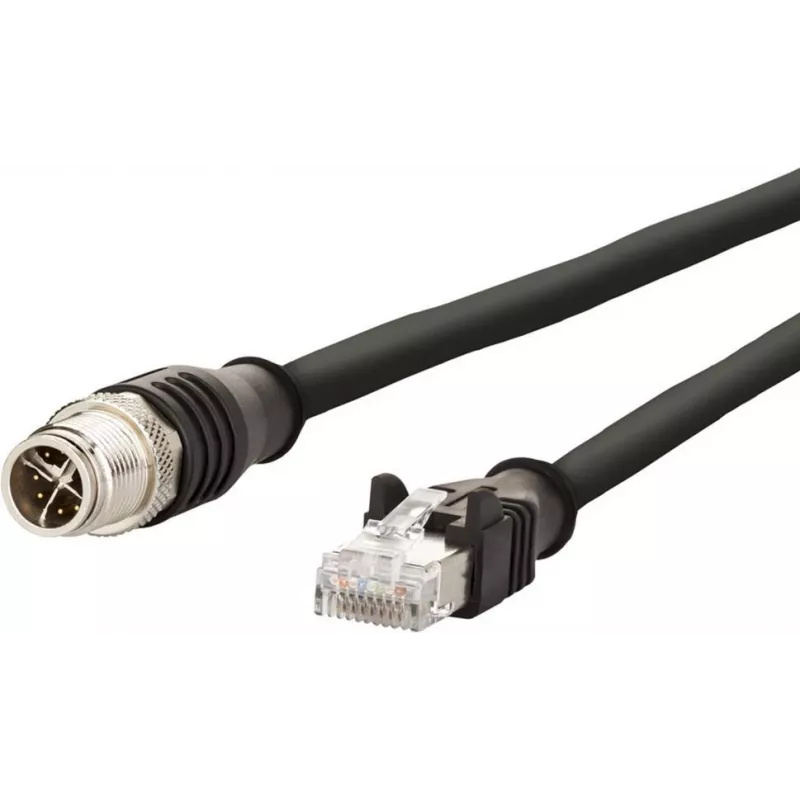

METZ CONNECT M12 na RJ45 patch kábel, X-kódovaný, 4-pólový, 5,0 m, Cat.6A, S/FTP, PUR, zelený

The METZ CONNECT connection cable M12 male to RJ45 male is a high-performance industrial Ethernet cable designed for reliable data transmission in harsh environments. With X-coding and 4-pin configuration, it supports 10 Gigabit Ethernet (10GBase-T) and meets Cat.6A standards. The cable features S/FTP shielding (PiMF) for excellent electromagnetic compatibility, a robust PUR jacket for oil, UV, and abrasion resistance, and an IP67-rated M12 connector when mated. Ideal for factory automation, machinery, and outdoor applications.

Advantages

• Supports 10 Gigabit Ethernet for high-speed data transfer
• X-coded M12 connector ensures secure, vibration-proof connection
• S/FTP shielding minimizes interference in industrial settings
• PUR jacket withstands oil, UV, and extreme temperatures (-40°C to +85°C)
• Halogen-free and flame-retardant for safety

Suitable for

• Industrial Ethernet networks in automation and control systems
• Connecting field devices, sensors, and actuators to switches or controllers
• Outdoor and harsh environment installations requiring IP67 protection
• Applications demanding high bandwidth and reliability (e.g., machine vision, robotics)

Key specifications

• Connector 1: M12 plug, male, X-coded, 4-pin
• Connector 2: RJ45 plug, male
• Cable length: 5.0 m
• Ethernet category: Cat.6A
• Data transfer rate: 10 Gbit/s (10GBase-T)
• Shielding: S/FTP (PiMF)
• Cable jacket material: PUR (polyurethane)
• Cable color: Green
• Conductor material: Copper, stranded
• Operating temperature: -40°C to +85°C
• IP protection class (M12): IP67 (when mated)
• Halogen-free: Yes
• Oil resistance: Yes
• UV resistance: Yes
• Standards: IEC 61076-2-109, ISO/IEC 11801, EN 50173
• Wiring standard: TIA/EIA-568B

Recommendations

For optimal performance, pair with compatible M12 X-coded ports and ensure proper mating to achieve IP67 protection. Suitable for use in PROFINET, EtherCAT, and other industrial Ethernet protocols.
