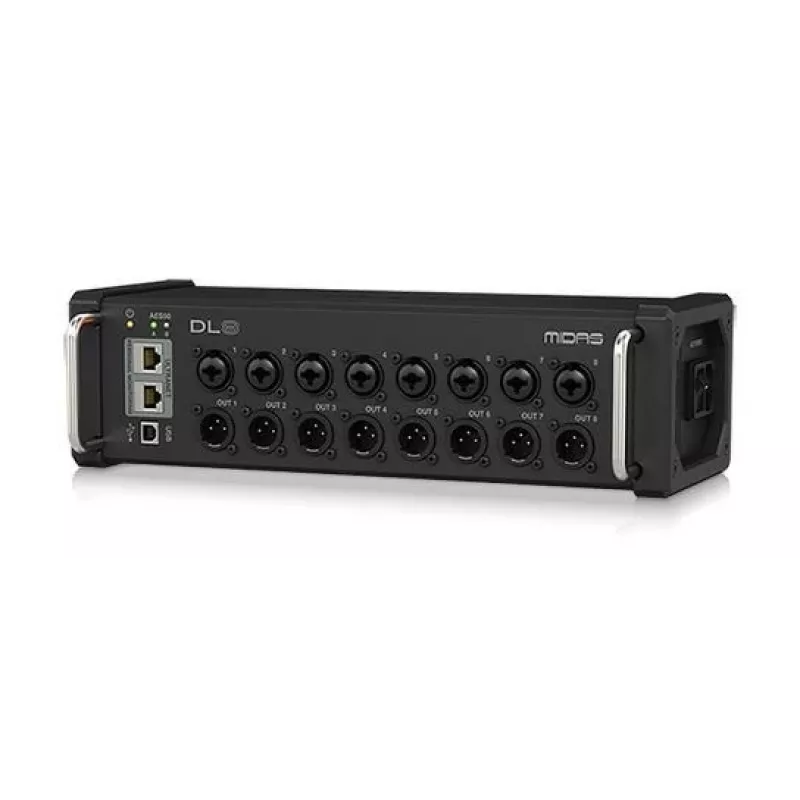

Midas DL8 digitálna stagebox 8 in/8 out

The Midas DL8 Digital Stagebox is a professional 8-input, 8-output stagebox designed for use with Midas M32 and Behringer X32 series digital consoles. It features 8 Midas PRO Series microphone preamplifiers with switchable +48V phantom power, ultra-low latency AES50 connectivity, and a rugged 2U rackmount steel chassis. Ideal for live sound, touring, and installed applications, the DL8 provides reliable, high-quality audio transmission over long distances.

Advantages

Midas PRO Series preamps deliver exceptional audio quality with low noise and high headroom. The AES50 network protocol ensures ultra-low latency (<1ms) and robust signal integrity. Remote control via M32/X32 consoles simplifies setup and monitoring. The rugged steel chassis withstands the rigors of touring and live events.

Suitable for

• Live sound reinforcement for concerts, theaters, and houses of worship
• Touring and rental applications requiring reliable digital stageboxes
• Installed sound systems in clubs, conference centers, and auditoriums
• Integration with Midas M32 and Behringer X32 digital mixing consoles

Key specifications

• Input Channels: 8 x XLR (Mic/Line) with Midas PRO Series Preamps
• Output Channels: 8 x XLR (Analog)
• Digital Connectivity: 2 x AES50 (Neutrik etherCON)
• Sample Rates: 44.1 kHz / 48 kHz, 24-bit AD/DA conversion
• Phantom Power: +48V switchable per input
• Rack Size: 2U, rugged steel chassis
• Latency: Ultra-low (<1ms input to output via AES50)
• Control: Remote control via Midas M32 / Behringer X32 consoles
• Additional I/O: 1 x ULTRANET (RJ45) for personal monitoring, 1 x MIDI In, 1 x MIDI Out
• Power Supply: Internal auto-ranging switch-mode
• Indicators: LEDs for Phantom Power, Signal, Clip, AES50 Status

Recommendations

For optimal performance, use high-quality AES50 shielded CAT5e or CAT6 cables. The DL8 is compatible with all Midas M32 and Behringer X32 series consoles. Pair with the Midas DL16 or DL32 for expanded I/O.
