Multibrackets M Universal Long Reach Arm 1010mm HD Single 40kg 42-75 palcov

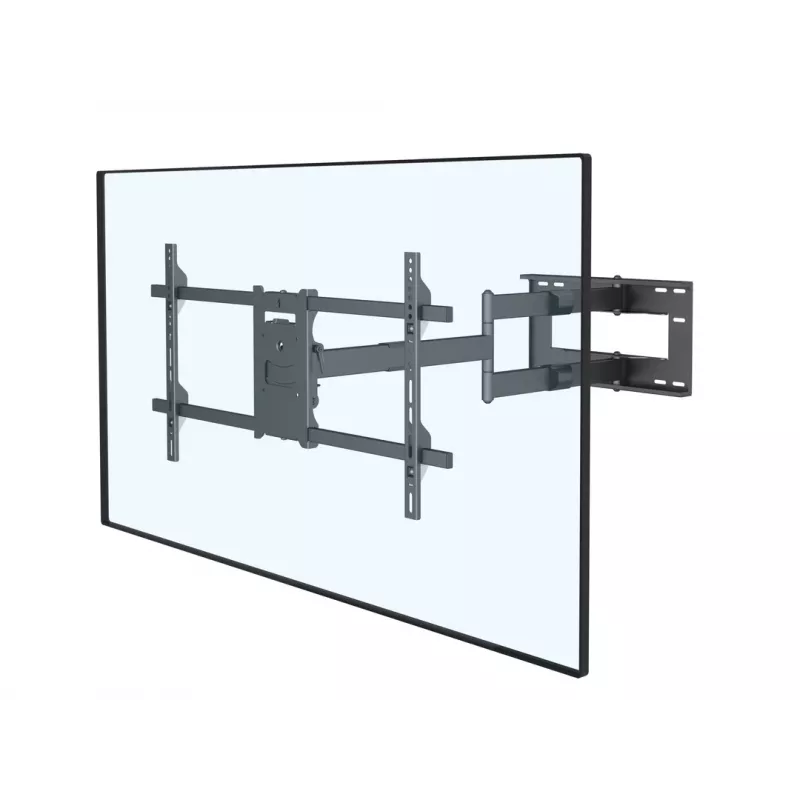

The Multibrackets M Universal Long Reach Arm 1010mm HD Single 40kg is a full-motion TV mount designed for home and commercial installations. It supports screens from 42 to 75 inches and holds up to 40 kg. The arm extends up to 1010 mm from the wall and includes integrated cable management and a near tool-free assembly for faster installation.

Advantages

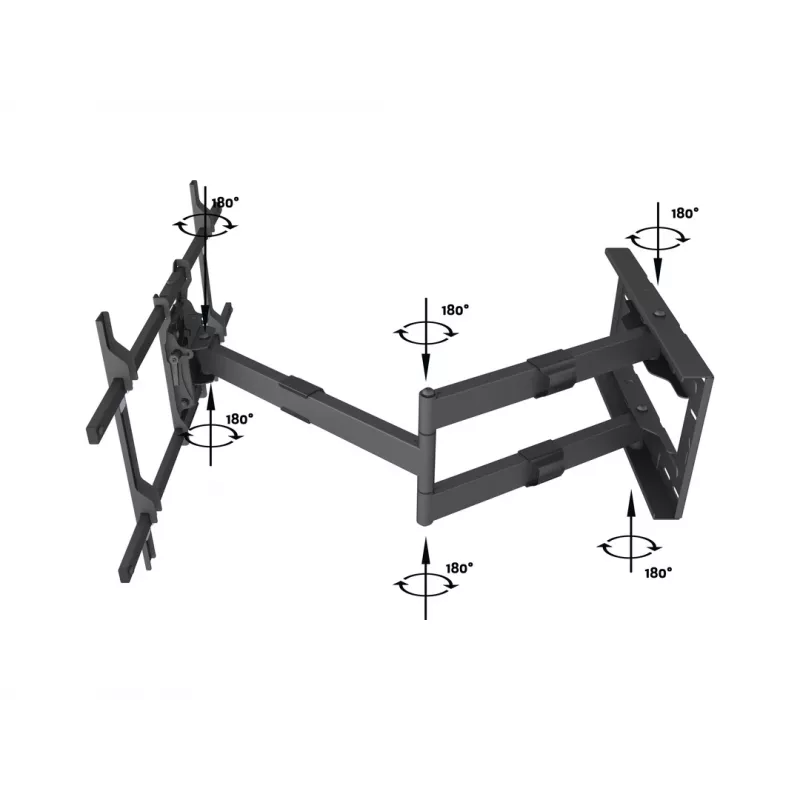

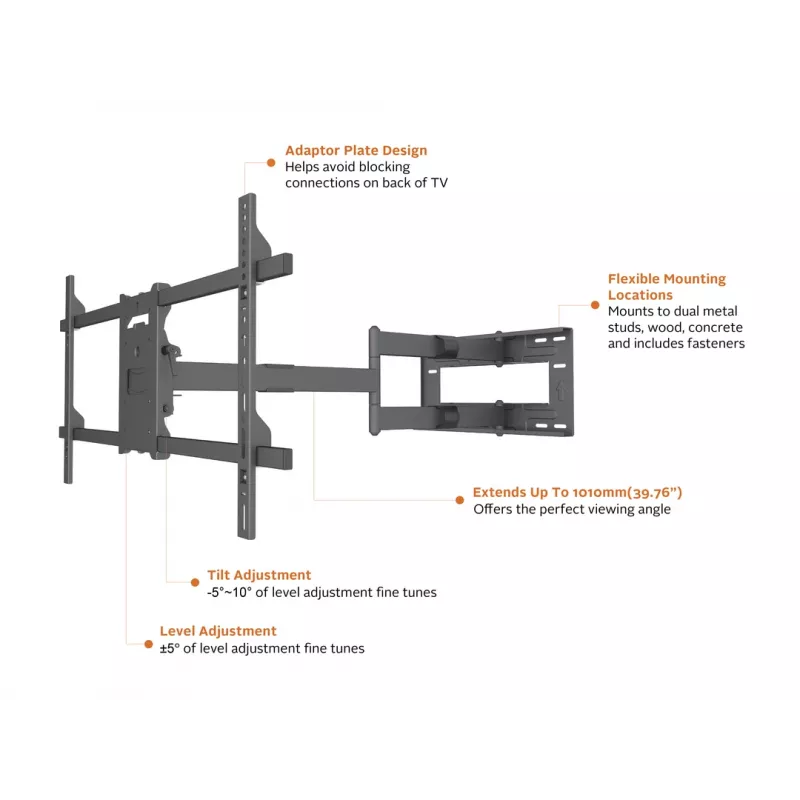

This long reach arm offers wide swivel and tilt ranges, a sliding adjustment for side-to-side positioning, and an adjustable pivot point to align the screen or wrap it around a corner. Constructed from heavy-duty solid steel, it provides stable support for larger TVs while keeping cables concealed for a neater installation. Tool-minimal assembly simplifies mounting and alignment.

Suitable for

• Living rooms and home theaters with large flat-panel TVs (42–75 ")
• Commercial spaces such as meeting rooms, lobbies, and retail displays
• Installations requiring long extension or corner mounting

Key specifications

• Supported screen size: 42–75 "
• Maximum weight capacity: 40 kg
• Product weight: 12.7 kg
• VESA compatibility: up to 800 x 400 mm
• Tilt range: -5° to +10°

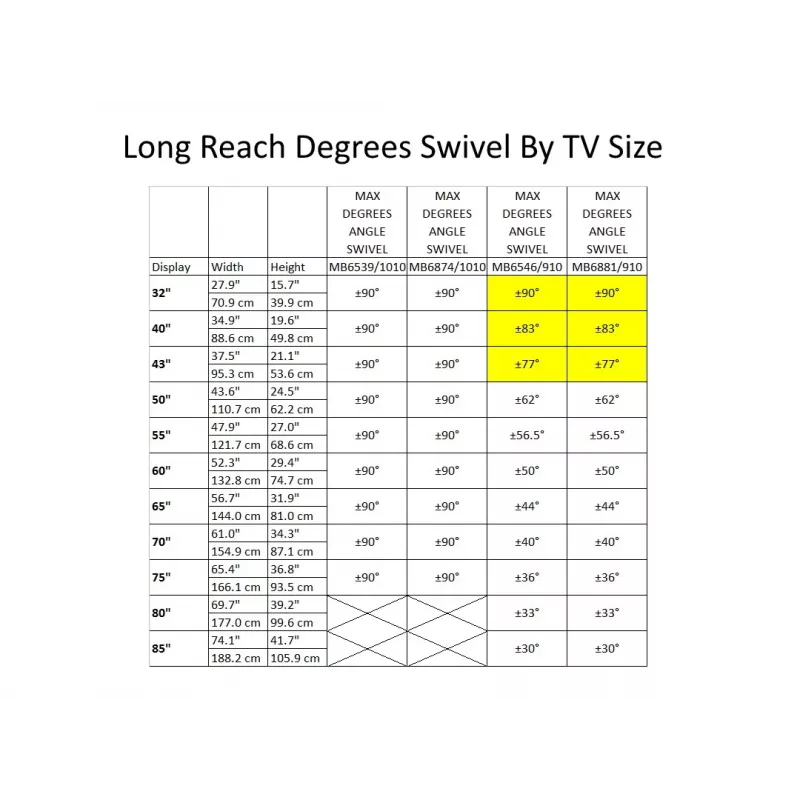

• Swivel range: -80° to +60°

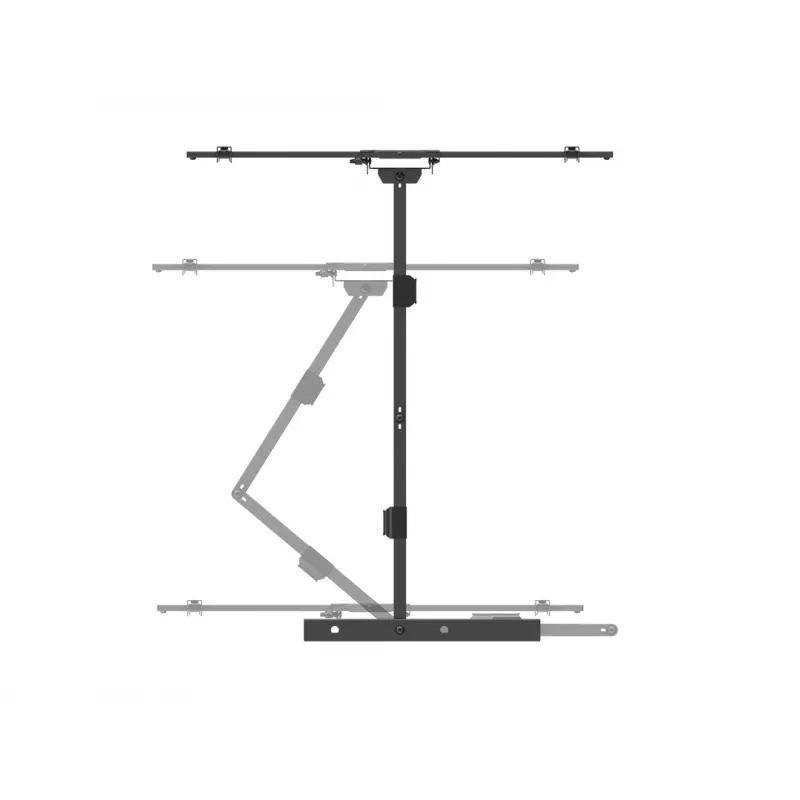

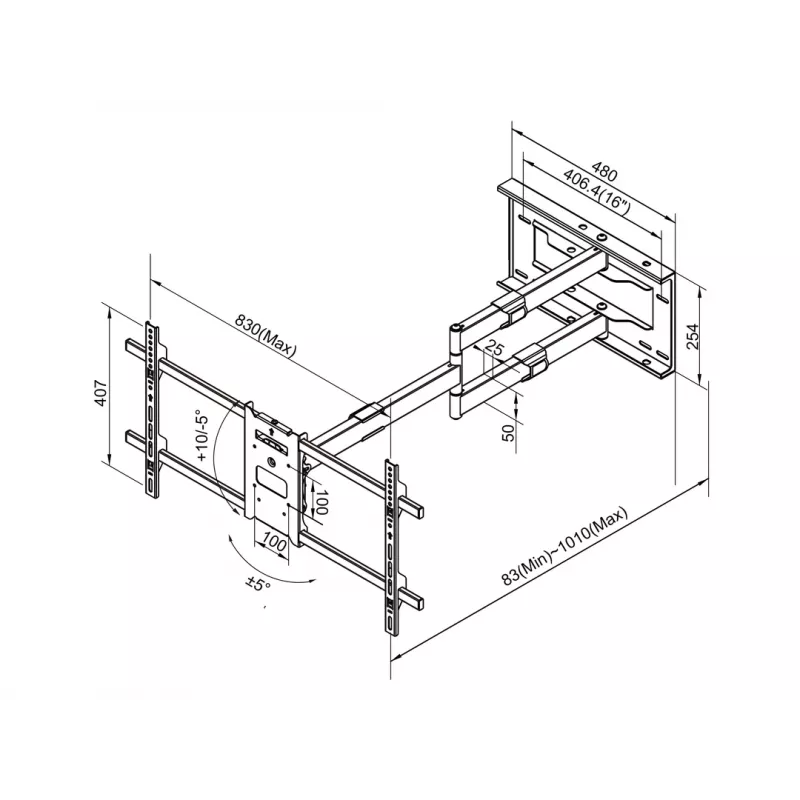

• Extension from wall: 83 mm to 1010 mm
• Color: Black
• Number of displays supported: 1

How to use

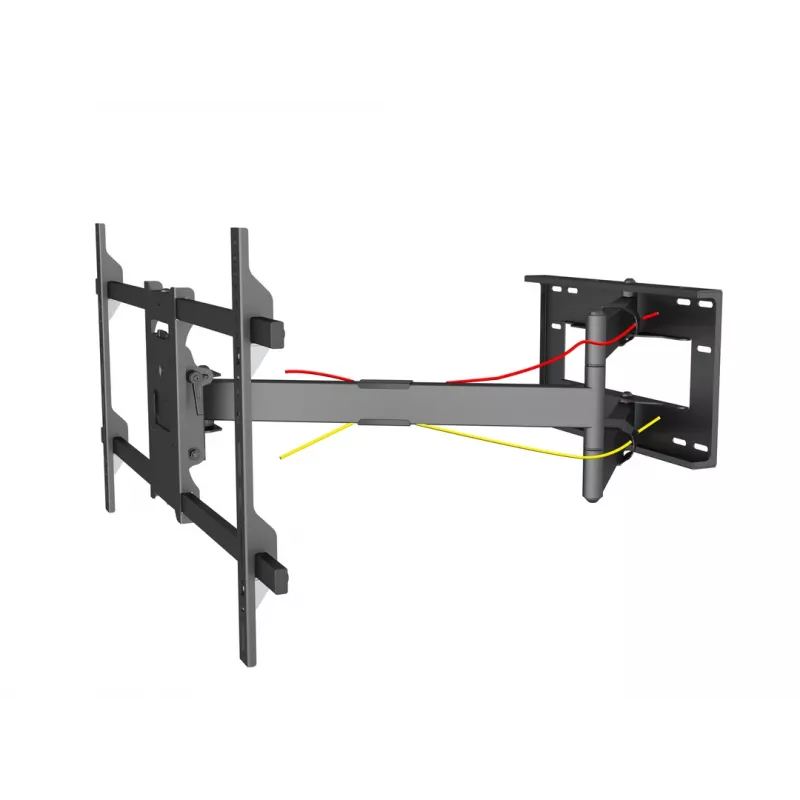

Attach the mount to a suitable wall using the recommended fixings for your wall type and the included template to mark drill points. Secure the bracket in place, then attach the TV to the mount using VESA-compatible screws that match your screen. Adjust the pivot point and slide the TV side-to-side to achieve the desired horizontal position. Use the tilt and swivel functions to set the optimal viewing angle. Route cables through the integrated cable management channel to conceal them.

Recommendations

Ensure the wall and fixings can safely support the combined weight of mount and display (up to 40 kg). For installations on plasterboard or other hollow walls, use appropriate anchors or mount to studs. Follow the TV manufacturer’s VESA and screw-size recommendations when attaching the screen.
