Napájací zdroj Corsair RPS0119 750 W

The CORSAIR RM Series RPS0119 750 W power supply is a fully modular PSU designed for desktop PCs that require efficient, stable power. It delivers 750 W of continuous output with 80 PLUS Gold efficiency, a 24-pin ATX motherboard connector, and multiple EPS12V connectors for modern CPU power delivery. The unit includes a 140 mm fan for active cooling and is available in a white finish to suit minimal or modern builds.

Advantages

This power supply combines high efficiency (80 PLUS Gold) with low noise operation via a 140 mm rifle-bearing fan and a tuned fan curve. Fully modular cabling reduces clutter and lets you install only the cables you need. The RM Series implements resonant LLC topology with DC-DC conversion and 105°C rated capacitors for stable voltage regulation and long-term reliability. Zero RPM fan mode further reduces noise at low and medium loads.

Suitable for

• Gaming desktops with mid to high power requirements
• Compact or minimal white-themed PC builds
• Systems needing multiple EPS12V connectors for high-end CPUs or multi-CPU boards
• Upgrades requiring compatibility with modern GPUs (including support for CORSAIR 12-pin GPU cable)

Key specifications

• Total power: 750 W
• 80 PLUS certification: 80 PLUS Gold
• Motherboard connector: 24-pin ATX

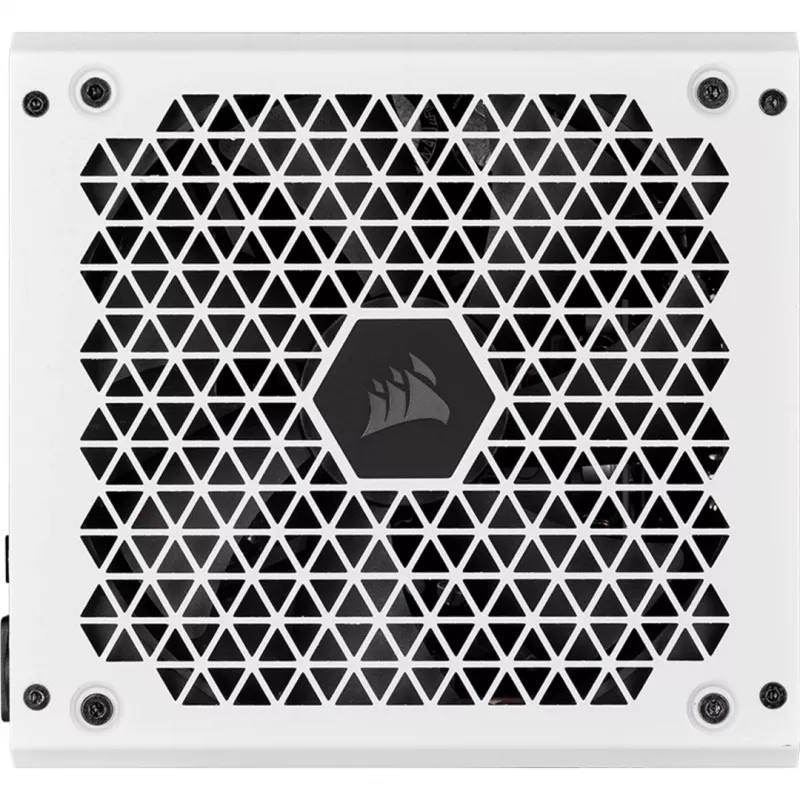

• Fan diameter: 140 mm (rifle bearing)
• Colour: White
• AC input: 100–240 V, 47–63 Hz
• Weight: 1.57 kg

How to use

Install the PSU into a compatible PC case following the case manufacturer’s orientation for airflow. Connect the 24-pin ATX cable to the motherboard and attach required EPS12V CPU power connectors. Use only the modular cables needed for your configuration (PCIe for GPUs, SATA/PATA for drives). Ensure the AC mains cable is firmly connected and set the PSU switch to the ON position before powering the system.

Recommendations

For optimal performance and longevity, keep the PSU intake unobstructed, maintain case airflow, and periodically remove dust from the 140 mm fan. Match the unit to systems that leave headroom below the 750 W rating for sustained efficiency and lower operating temperatures.
