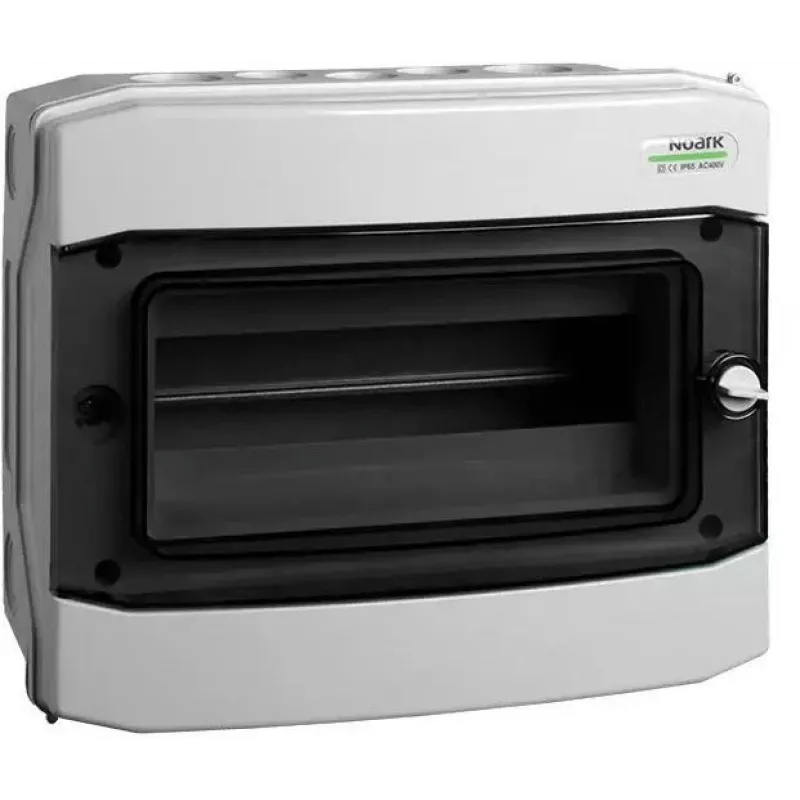

NOARK PHS 12T rozvádzač na omietku IP65 12 modulov 1 rad sivý priehľadné dvierka

The NOARK PHS 12T is a high-quality surface-mounted plastic enclosure designed for electrical installations requiring IP65 ingress protection. With a capacity of 12 modules in a single row, this enclosure is ideal for residential, commercial, and industrial applications where dust and water resistance are essential. The transparent polycarbonate door allows easy visual inspection of installed components, while the robust ABS base ensures durability and long service life.

Advantages

IP65 protection against dust and water jets, IK08 impact resistance, halogen-free and UV-resistant materials, transparent door for quick status checks, and included DIN rail and terminal blocks for easy installation.

Suitable for

• Surface mounting in outdoor or wet indoor environments
• Distribution boards, control panels, and junction boxes
• Applications requiring up to 63 A rated current and 400 V AC

Key specifications

• Brand: NOARK
• Model: PHS 12T
• MPN: 101494
• EAN: 8592765014955
• Mounting Type: Surface Mounted
• Ingress Protection: IP65
• Number of Modules: 12
• Number of Rows: 1
• Enclosure Material: ABS
• Door Material: Polycarbonate (PC)
• Door Type: Transparent
• Colour: Grey (RAL 7035) base, Transparent door
• Impact Protection: IK08
• Rated Insulation Voltage (Ui): 1000 V AC / 1500 V DC
• Rated Operational Voltage (Ue): 400 V AC
• Rated Current (In): 63 A
• Operating Temperature Range: -25°C to +60°C
• Storage Temperature Range: -35°C to +70°C
• Standards Compliance: EN 62208, EN 61439-3
• Glow Wire Test Temperature: 650°C (enclosure), 850°C (parts holding live components)
• UV Resistance: Yes
• Halogen-Free: Yes
• DIN Rail Included: Yes (Galvanized steel)
• Terminal Blocks Included: N+PE (Neutral and Earth)

Recommendations

This enclosure is suitable for use as a distribution board in residential and light commercial installations. Ensure proper cable entry sealing to maintain IP65 rating. For outdoor installations, consider additional sun protection if exposed to direct sunlight for extended periods.
