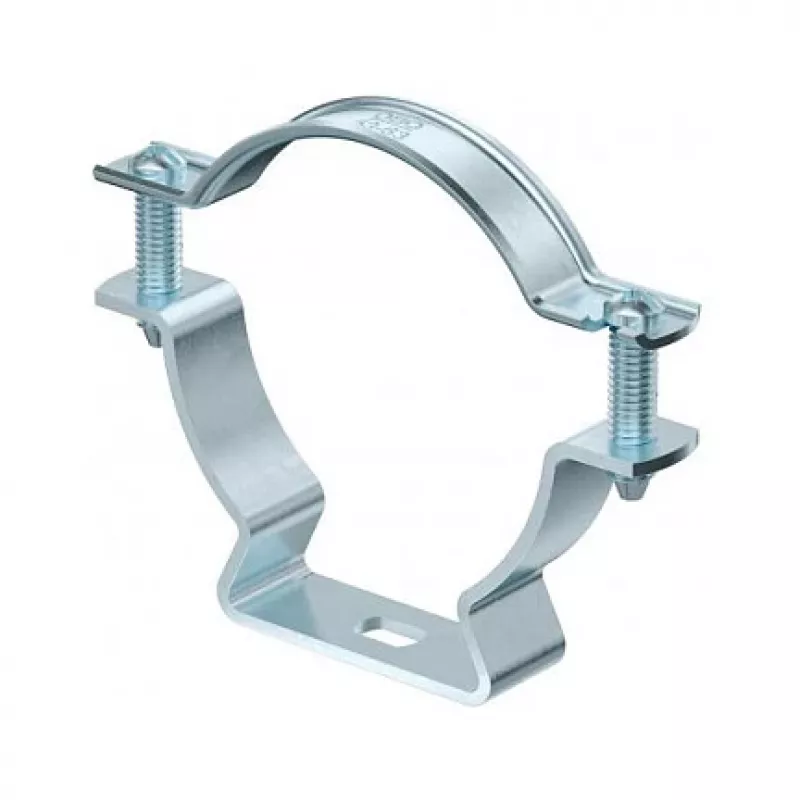

OBO BETTERMANN ASL 733 63 G dištančná objímka, 53-63 mm, oválny otvor, pozinkovaná oceľ (1362788)

Securing cables and pipes at a fixed distance from the mounting surface is critical for safety, order and longevity. The OBO BETTERMANN ASL 733 63 G distance clamp provides a dependable solution for both indoor and outdoor installations, keeping lines neatly routed while protecting insulation against damage.

Who is it for

This clamp is ideal for electricians, HVAC installers, and maintenance teams who need a corrosion-resistant support for electrical cables, pipes, and conduits. It suits single-screw fixing on walls, ceilings and floors, making it a flexible choice for industrial, commercial and residential projects.

Main features

• Robust steel construction with hot-dip galvanised finish for high corrosion resistance
• Clamps cables and pipes with diameters from 53 to 63 mm
• Elongated hole (7 x 20 mm) simplifies positioning and single-screw mounting
• Spacing of 20 mm from the mounting surface
• Halogen-free and UV-resistant material for reliable outdoor use
• Operates in a wide temperature range from -45 °C to +100 °C
• Exceeds standard requirements for cable cleats according to DIN EN 61914

Specifications

• Type: Distance clamp with elongated hole
• Clamping range: 53 – 63 mm
• Material: Steel
• Surface protection: Hot-dip galvanised
• Mounting: Single-screw fixing, elongated hole 7 x 20 mm
• Distance to mounting surface: 20 mm
• Recommended screw: M6
• Operating temperature: -45 to +100 °C
• Standards: DIN EN 61914 (cable cleats)
• Applications: Cables, pipes, conduits
• Colour: Metallic grey

Tips

For optimum performance, pair the clamp with an M6 screw and choose the correct wall plug for the substrate. When installing multiple clamps, align the elongated holes along the cable route to allow precise spacing and easy adjustment. Check the clamp diameter against the outer dimension of the cable or pipe to ensure a snug and secure fit.
