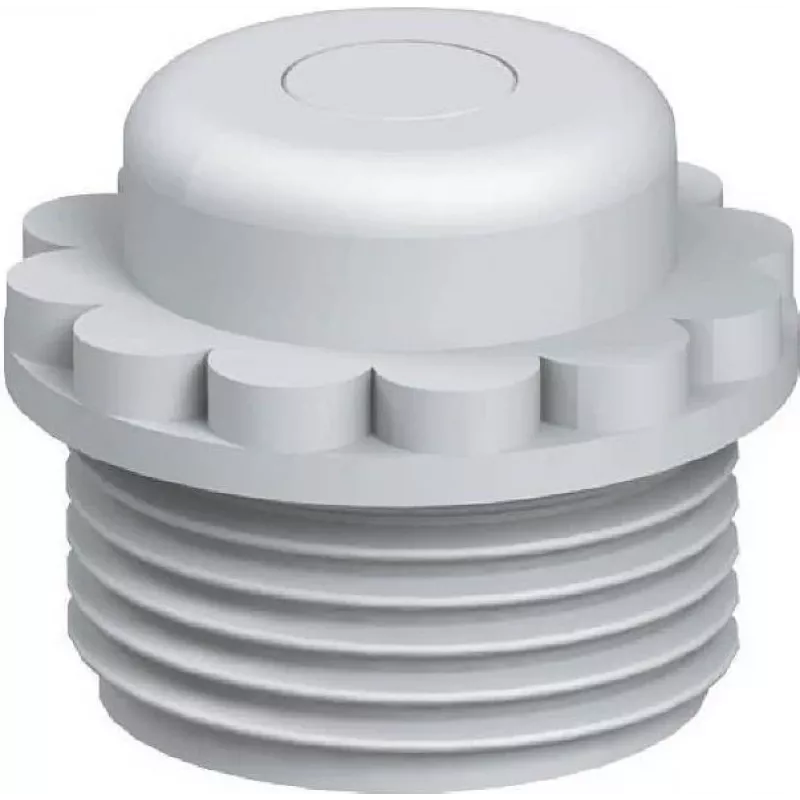

OBO BETTERMANN V-TEC VM PG9 závitový nátrubok s vylamovacou membránou, svetlosivá, 100 kusov 2032503

Electricians and panel builders often need a fast, reliable way to connect cable glands or conduits to enclosures without compromising protection. The OBO BETTERMANN V-TEC VM PG9 screw-in nipple with push-out membrane solves this by providing a sealed entry point that can be opened only when needed. Made from halogen-free polyamide in light grey (RAL 7035), it threads directly into PG9 knockouts and accepts a cable gland on the other side. The integrated push-out membrane keeps the housing IP68-rated until you pierce it, making it perfect for staged installations or spare entries.

Key specifications

• Type: Screw-in nipple with push-out membrane
• Thread: PG9 (Panzergewinde)
• Material: Polyamide (PA), halogen-free
• Colour: Light grey (RAL 7035)
• Protection class: IP68
• Temperature range: -20 °C to +100 °C (static), -30 °C to +80 °C (dynamic)
• UV-resistant: Yes
• Wrench size: 19 mm
• Thread length: 11 mm
• Overall length: 21 mm
• Pack size: 100 pieces

Why choose it

This nipple is built for durability and flexibility. The push-out membrane means you can pre-wire enclosures and open only the entries you need, keeping the rest sealed against dust and water. The polyamide construction is lightweight yet robust, and the light grey colour blends with standard industrial enclosures. It meets IP68 requirements, so it is suitable for demanding environments where moisture or dust is a concern.

Ideal use cases

• Connecting cable glands to junction boxes and control cabinets
• Creating spare conduit entries that remain sealed until needed
• Outdoor installations requiring UV resistance
• Industrial machinery and equipment with PG9 knockouts

Good to know

The nipple is part of the OBO V-TEC VM series, known for reliable cable management. It is halogen-free, making it safe for use in public buildings and areas with strict fire regulations. The push-out membrane can be removed with a simple tool, and the hexagonal body allows for easy tightening with a 19 mm wrench.
