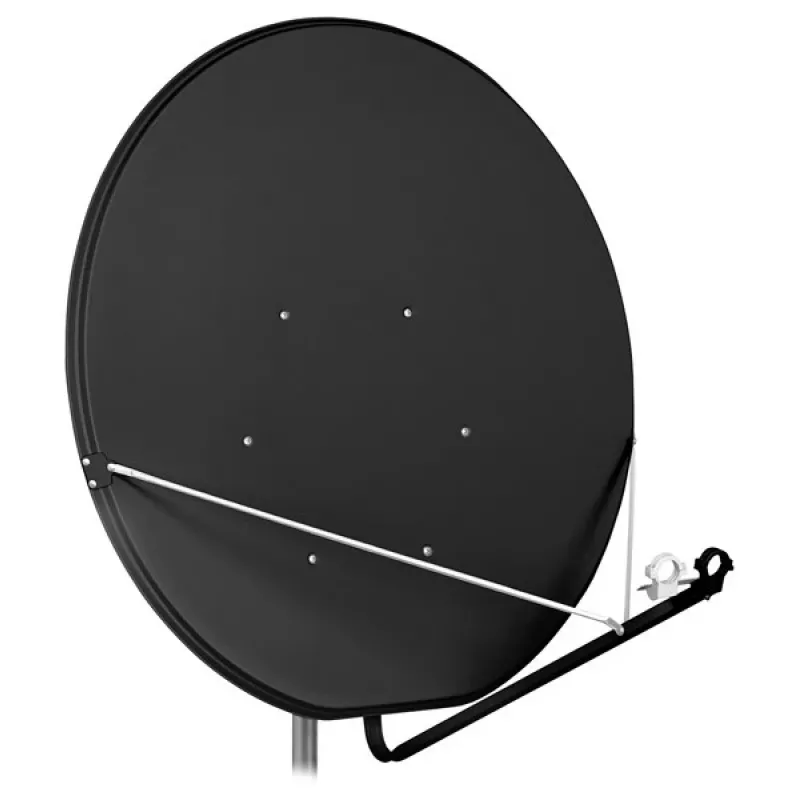

Offset satelitná parabola AS-120/DPL-G 120 cm sivá

The Offset Satellite Dish AS-120/DPL-G with a diameter of 120 cm is a high-performance antenna designed for reliable Ku-band satellite reception. Manufactured from galvanized steel with a powder-coated finish in light grey (RAL 7035), this dish offers excellent durability and weather resistance. It features an offset design with a 26-degree offset angle and an F/D ratio of 0.6, ensuring optimal signal capture. The dish supports a 40 mm LNB holder and is compatible with pole mounts for poles ranging from 32 to 76 mm in diameter. With an elevation adjustment range of 0 to 90 degrees, it allows precise alignment. The antenna delivers a gain of up to 42.5 dB at 12.75 GHz and operates in temperatures from -40°C to +60°C. It can withstand operational wind loads of 100 km/h and survival wind loads of 200 km/h. Multi-LNB support is available with an optional multi-feed bracket.

Advantages

This satellite dish combines robust construction with high gain performance, making it ideal for both residential and commercial installations. The galvanized steel reflector and powder coating provide long-lasting protection against corrosion and harsh weather conditions. The offset design reduces snow and ice accumulation, improving signal reliability in winter. Wide pole compatibility and flexible elevation adjustment simplify installation and alignment.

Suitable for

• Ku-band satellite TV reception
• Single or multi-LNB setups (with optional bracket)
• Residential and commercial satellite installations
• Areas requiring a durable, weather-resistant antenna

Key specifications

• Antenna Type: Offset Satellite Dish
• Dish Diameter: 120 cm
• Reflector Material: Galvanized Steel
• Surface Finish: Powder Coated
• Color: Light Grey (RAL 7035)
• Frequency Range: 10.7 - 12.75 GHz (Ku-band)
• Gain (10.75 GHz): 41.5 dB
• Gain (11.75 GHz): 42.0 dB
• Gain (12.75 GHz): 42.5 dB
• F/D Ratio: 0.6
• Offset Angle: 26 degrees
• LNB Holder Diameter: 40 mm
• Mounting Type: Pole Mount
• Compatible Pole Diameter: 32 - 76 mm
• Elevation Adjustment Range: 0 - 90 degrees
• Wind Load (Operational): 100 km/h
• Wind Load (Survival): 200 km/h
• Operating Temperature: -40°C to +60°C
• Multi-LNB Support: Yes (with optional multi-feed bracket)

Recommendations

For optimal performance, pair this dish with a high-quality LNB and use proper cable connections. Ensure the mounting pole is securely installed and the dish is aligned accurately to the satellite. Consider using a multi-feed bracket if you need to receive signals from multiple satellites.
