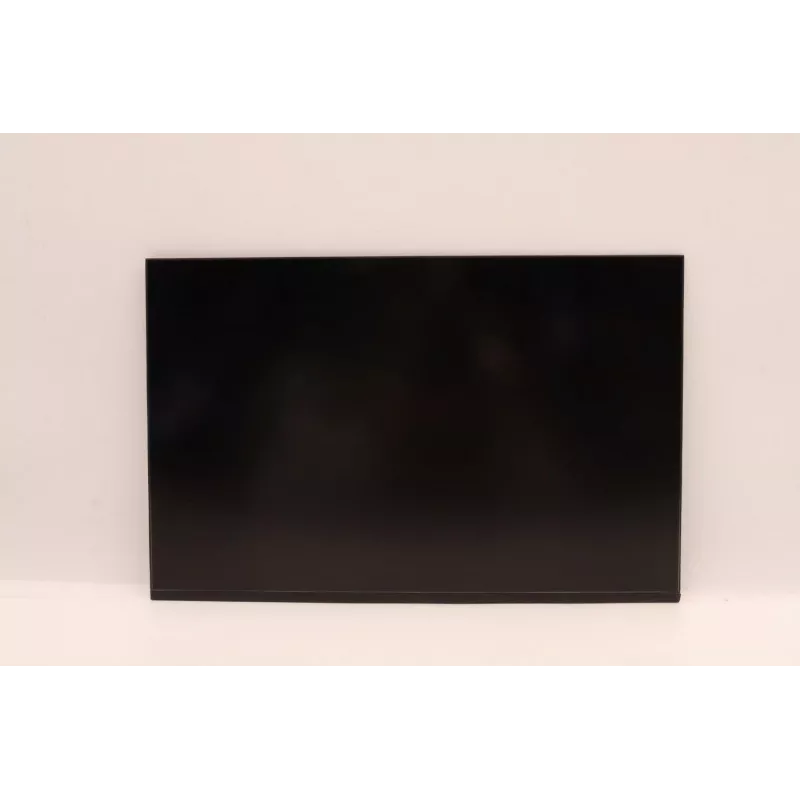

Panel obrazovky notebooku Lenovo 14 palcov WUXGA antireflexný náhradný (5D11U14191)

This Lenovo 14-inch WUXGA anti-glare replacement screen is a direct-fit LCD panel designed for compatible notebook models that require a 14.0-inch display with 1920 x 1200 resolution. The panel provides WUXGA clarity for sharper text and images and features an anti-reflective surface to reduce glare under bright lighting. It is intended for repair, refurbishment, or a like-for-like replacement where the physical dimensions and connector type match the original screen.

Advantages

The anti-glare coating reduces reflections and improves screen readability in offices and other brightly lit environments. WUXGA resolution delivers increased vertical pixel count compared with standard Full HD, resulting in clearer text, more workspace for applications, and finer image detail. The panel is a modular replacement component suitable for technicians and users familiar with laptop disassembly, enabling cost-effective repair without replacing the entire notebook. Its standard 14-inch form factor and common connector type simplify compatibility checks when matching to the original unit.

Suitable for

• Repairing a damaged or cracked laptop screen on compatible Lenovo notebooks
• Refurbishment projects where a direct-fit 14-inch WUXGA panel is required
• Users seeking improved readability and reduced glare in bright environments
• Technicians performing like-for-like display replacements

Key specifications

• Screen size: 14.0 inches
• Native resolution: WUXGA 1920 x 1200 pixels
• Surface finish: Anti-glare / anti-reflective
• Panel type: LCD (compatible with common laptop backlight and connector standards)
• Aspect ratio: 16:10
• Intended use: Replacement for compatible notebook displays

How to use

Before installation, verify that the panel dimensions, mounting holes, connector location and pin count match the original screen. Power down the notebook, remove the battery if possible, and disconnect any power sources. Follow manufacturer or service manual instructions to remove the bezel and detach the existing panel connectors carefully. Install the replacement panel by aligning it with the mounting points, securing the screws, and reconnecting the display cable. Reassemble the bezel and restore power, then test the display for correct resolution, backlight, and absence of defects such as dead pixels or pressure marks.

Recommendations

Handle the panel by its edges to avoid touching the display surface; use an ESD strap when working on internal components. Match the replacement to the original screen's physical dimensions, connector type and resolution to ensure compatibility. If uncertain, consult service documentation or a qualified technician before attempting installation.
