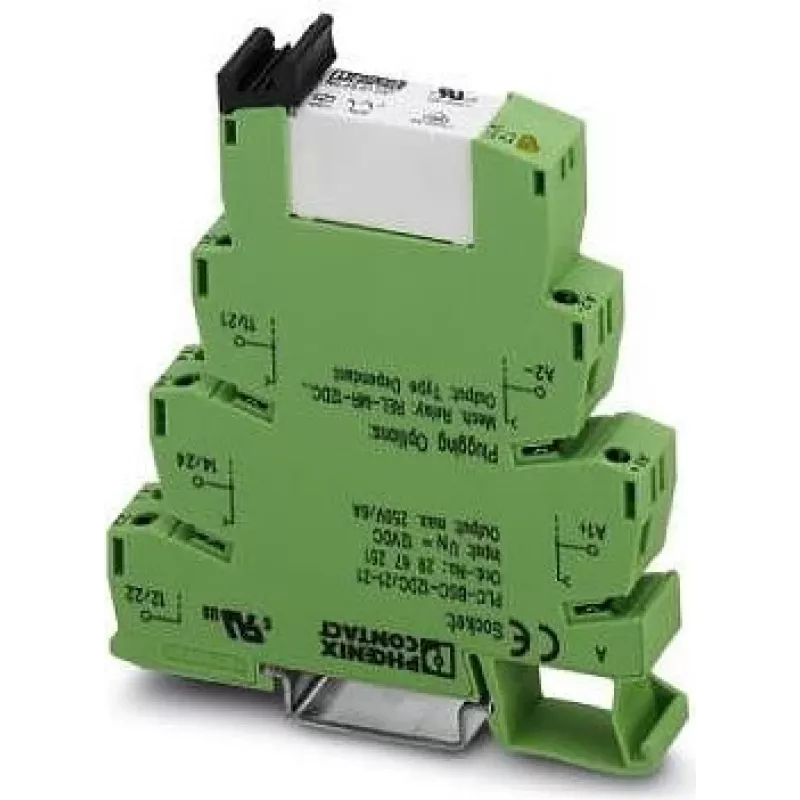

Phoenix Contact 2967112 Miniatúrne výkonové relé, 24 V DC cievka, 1 spínací kontakt, 10 A, Push-in, DIN lišta

Miniature power relay with a 24 V DC coil and a single normally open contact, engineered for reliable switching of loads up to 10 A. The push-in connection technology and DIN rail mounting enable fast, tool-free installation in industrial control cabinets.

Advantages

Compact 6.2 mm width saves space on the DIN rail. Silver-nickel contact material ensures long electrical life and stable contact resistance. Push-in terminals reduce wiring time by up to 50% compared to screw connections. Wide operating temperature range from -40 °C to 60 °C suits demanding environments.

Suitable for

• Industrial automation and PLC output interfacing
• Switching of resistive, inductive, and capacitive loads up to 10 A
• Control cabinet applications requiring high packing density
• Machinery and equipment with 24 V DC control voltage

Key specifications

• Coil voltage: 24 V DC, power consumption 0.4 W
• Contact configuration: 1 N/O (SPST-NO)
• Max switching voltage: 250 V AC/DC
• Max switching current: 10 A (AC1), 8 A (DC1)
• Contact material: AgNi
• Mounting: DIN rail NS 35/7.5
• Connection: Push-in
• Operating temperature: -40 °C to 60 °C
• Mechanical service life: 2 x 10^7 cycles
• Electrical service life: 1 x 10^5 cycles at 10 A, 250 V AC
• Protection degree: IP20
• Approvals: UL, cUL, GL, EAC, VDE

Recommendations

For reliable switching in compact control systems, this relay offers a proven balance of performance and ease of installation. Verify coil voltage and load characteristics before commissioning.
