Grafická karta GeForce RTX 5060 Ti 8 GB GDDR7

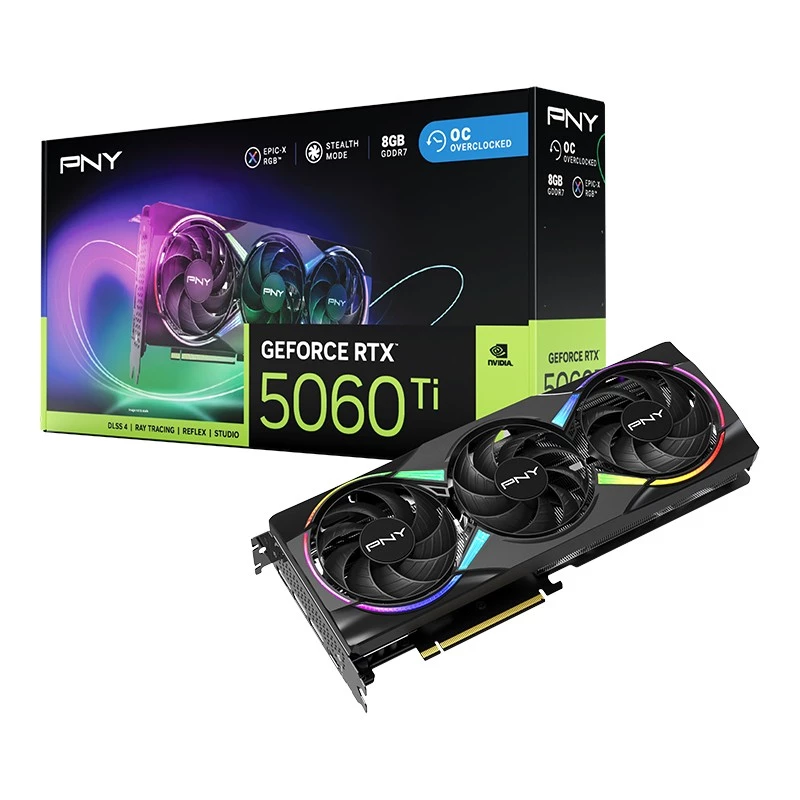

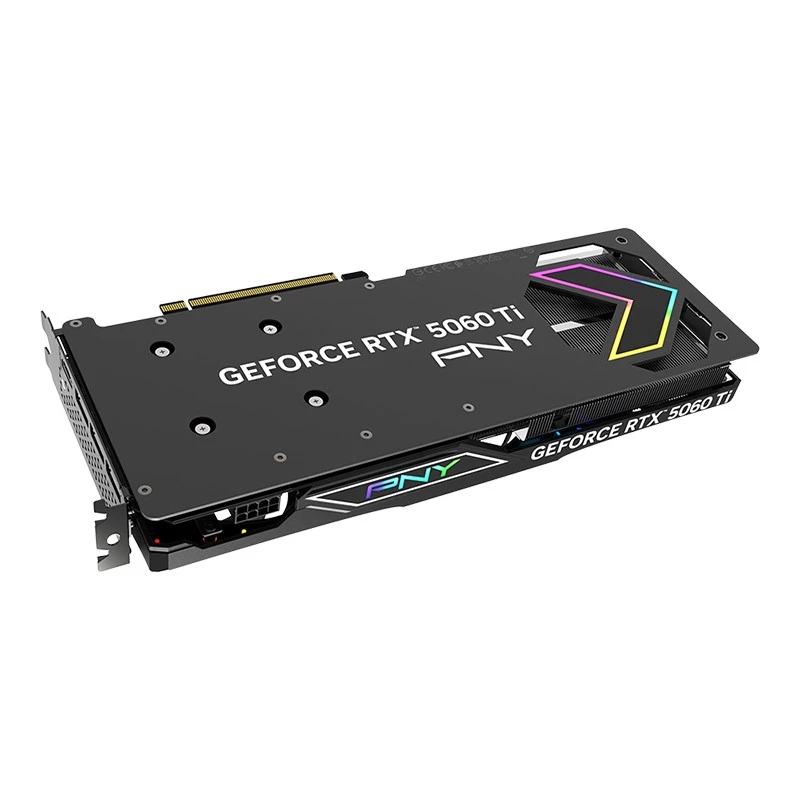

The PNY GeForce RTX 5060 Ti 8 GB GDDR7 is a discrete graphics card based on the NVIDIA GeForce RTX 5060 Ti GPU with a Boost frequency of 2407 MHz and 8 GB of GDDR7 memory on a 128‑bit bus. It supports a maximum resolution of 7680 x 4320, DirectX 12 Ultimate and OpenGL 4.6, and connects via a PCI Express x8 5.0 interface. The card features an active cooling solution with three fans and EPIC‑X RGB illumination for customizable multi‑color lighting.

Advantages

The GeForce RTX 5060 Ti delivers improved frame rates in modern games using DLSS 4 and hardware-accelerated ray tracing enabled by NVIDIA Blackwell architecture. With 8 GB of fast GDDR7 memory and a PCIe 5.0 x8 interface, the card provides responsive performance for 1080p and 1440p gaming while supporting high-resolution output up to 7680 x 4320. The triple-fan cooler maintains operating temperatures under load, and RGB lighting offers visual customization for system builds.

Suitable for

• High-frame-rate 1080p and 1440p gaming
• Creative workloads accelerated by NVIDIA Studio (video editing, 3D rendering)
• Hardware-accelerated ray tracing and AI-enhanced features (DLSS 4)
• Compact to mid-tower custom PC builds with PCIe 5.0 support

Key specifications

• Graphics processor: GeForce RTX 5060 Ti
• Memory: 8 GB GDDR7
• Memory bus: 128 bit
• Interface: PCI Express x8 5.0
• Max resolution: 7680 x 4320
• APIs: DirectX 12 Ultimate, OpenGL 4.6
• Cooling: Active triple-fan cooler

How to use

Install the card into an available PCI Express x8 or x16 slot on a compatible motherboard and secure it to the chassis. Connect the required power cables if applicable, install the latest NVIDIA drivers from the PNY or NVIDIA website, and configure display outputs via your operating system or GPU control panel. Use the provided or compatible software to adjust RGB lighting and fan curves as needed.

Recommendations

For optimal performance, pair the GeForce RTX 5060 Ti with a CPU that avoids bottlenecks at your target resolution (mid-to-high range CPU for 1440p); ensure adequate case airflow and a power supply that meets the card's requirements. Keep drivers up to date to benefit from DLSS 4, NVIDIA Studio improvements, and architecture-specific optimizations.
