Príslušenstvo k statívu Walimex 17931 čierna oceľ 0,5 kg 90 mm

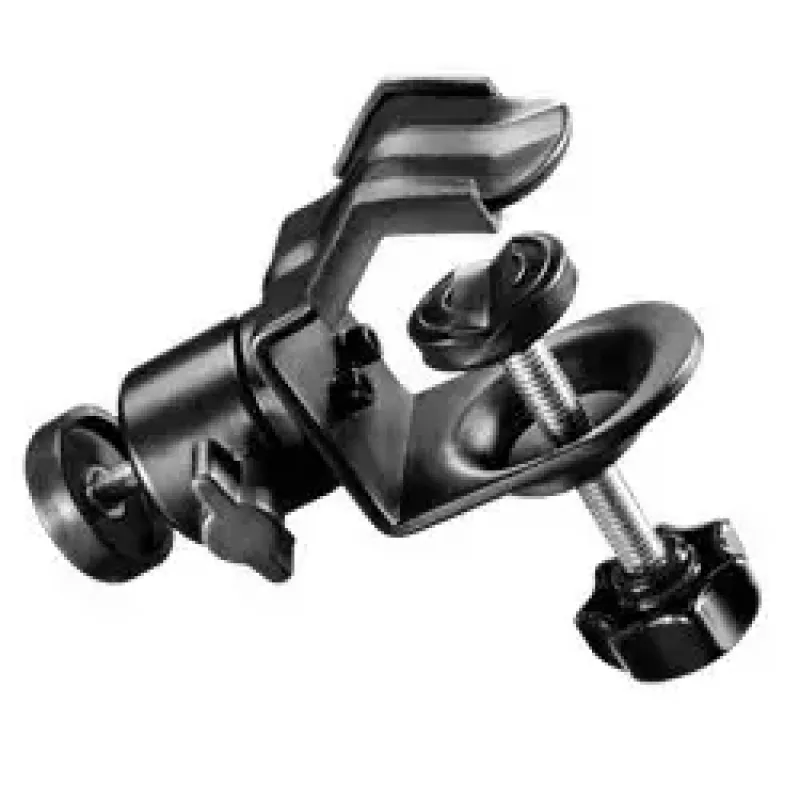

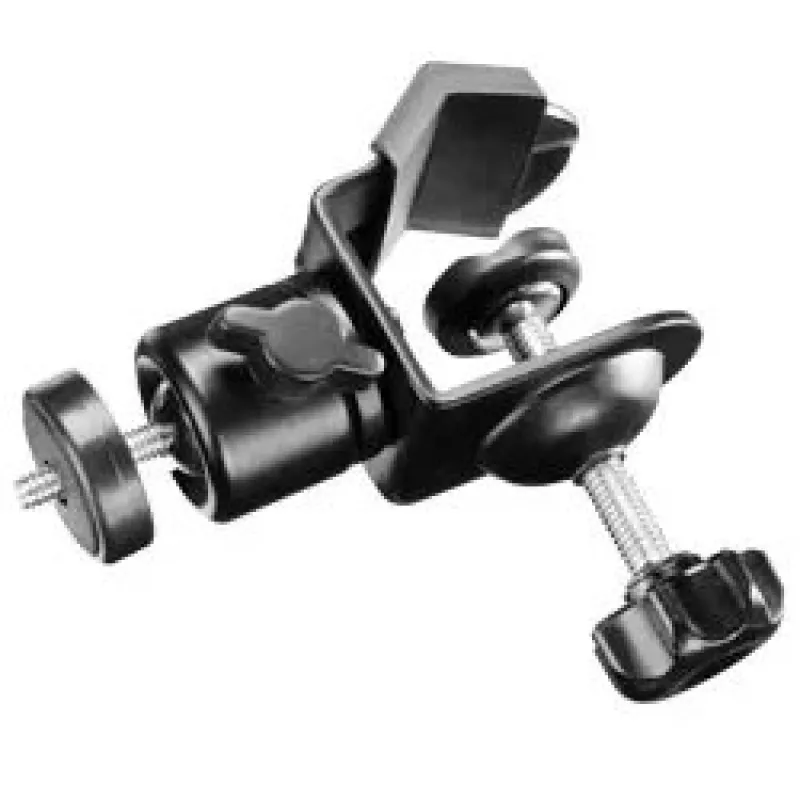

Tube clamp with built-in ball head for mounting accessories on tripods, rods and tubular supports. The Walimex 17931 is made of steel, finished in black, and provides a compact mounting solution with a 1/4 inch connection and a maximum load capacity of approximately 0.5 kg. The clamp fits tubes with a maximum diameter of about 4.5 cm and has overall dimensions of roughly 90 mm height and 110 mm length.

Advantages

The integrated ball head with 1/4 inch thread allows flexible positioning of attached accessories. Steel construction ensures durability and stable support for small cameras, monitors or other lightweight equipment. Its compact size and clamp design enable attachment to tripods, rods, shooting tables and other tubes up to ~4.5 cm in diameter.

Suitable for

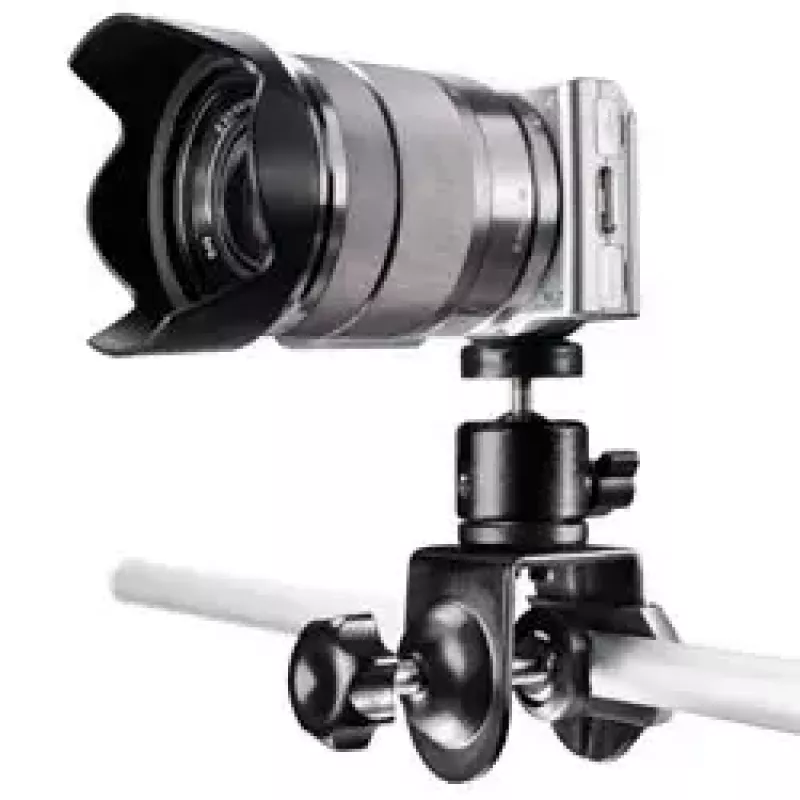

• Mounting small cameras or action cameras

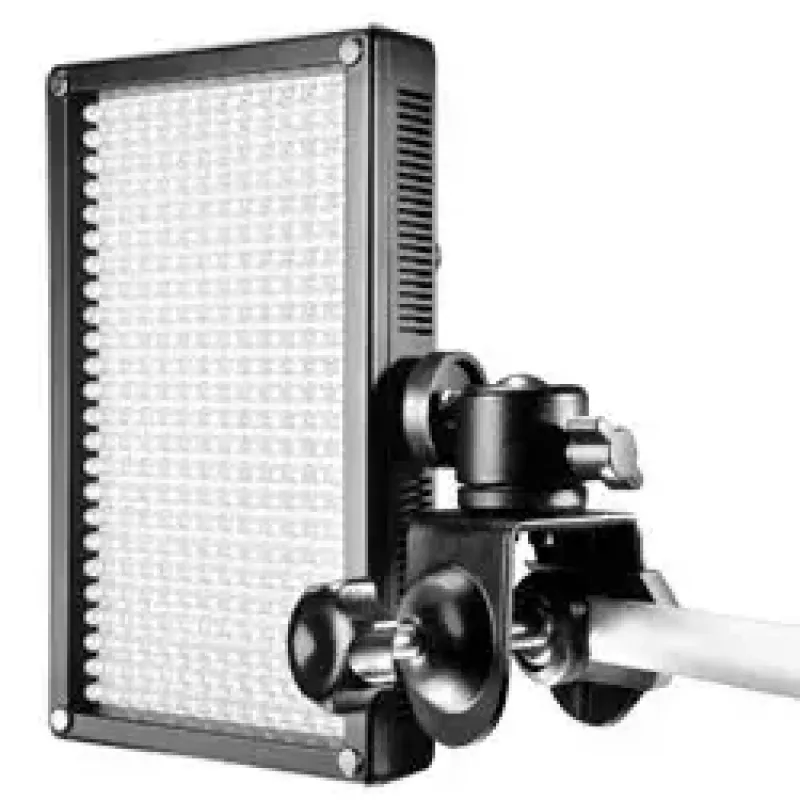

• Attaching monitors, lights or microphones to tripods and rods
• Use on shooting tables, studio rigs and tubular supports with diameter up to 4.5 cm
• Temporary setups requiring a compact clamp with adjustable ball head

Key specifications

• Brand: walimex
• Model / MPN: 17931
• Material: Steel
• Colour: Black
• Connection: 1/4 inch thread (male)
• Max load capacity: approx. 0.5 kg
• Fits tube diameter: up to approx. 4.5 cm
• Height: approx. 90 mm
• Length: approx. 110 mm
• Product weight: 0.27 kg
• EAN: 4250234579315

How to use

Open the clamp and position it around the target tube or rod (maximum diameter approx. 4.5 cm). Tighten the clamp securely to ensure stable contact. Screw the accessory onto the built-in 1/4 inch ball head thread, then loosen the ball head lock to adjust angle and orientation. Once the desired position is achieved, tighten the ball head lock to secure the accessory. Check stability before use and avoid exceeding the specified maximum load.

Recommendations

Use the Walimex 17931 with lightweight equipment only (up to 0.5 kg). Ensure the clamped tube or rod is stable and undamaged, and periodically check the clamp and connections during extended use. Avoid overtightening on delicate tubing to prevent deformation.
