RAM Mounts držiak s dvojitou guľou s 75x75mm VESA doskou a kontramaticou

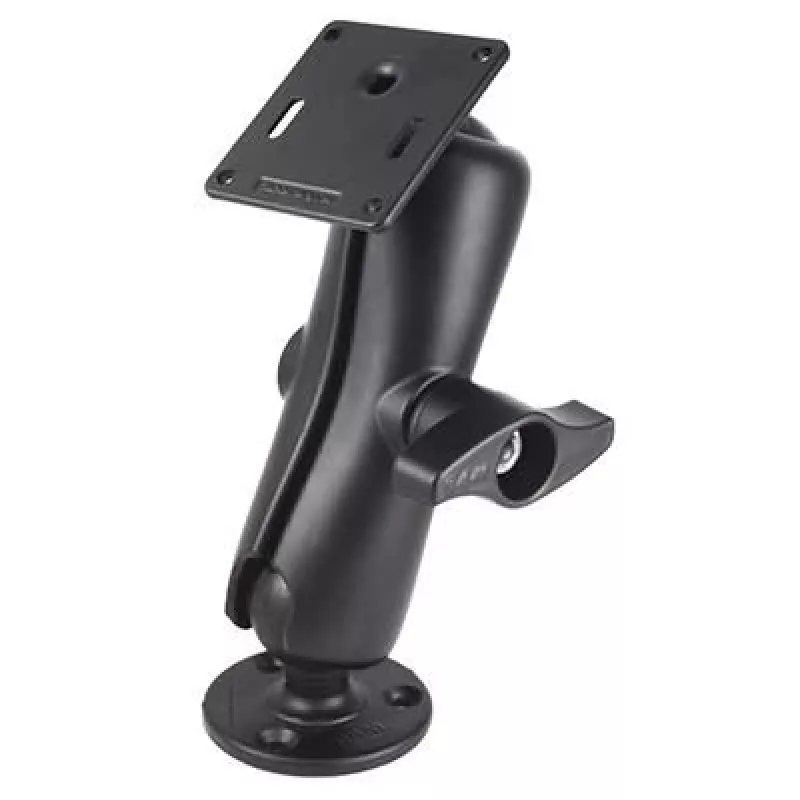

The RAM-D-101U-MI1-2461 is a double ball mount with a 3.68" diameter round base, a STANDARD length double socket arm with jam nut, and a 3.625" square VESA plate with a 75 x 75 mm hole pattern. The round base is pre-drilled with multiple mounting holes (two at 180° and three at 120°) to facilitate secure attachment. The mount uses RAM's patented 2.25" diameter rubber ball-and-socket system with adjustment points at both socket ends of the arm to allow a wide range of positioning.

Advantages

The rubber ball-and-socket design provides near-infinite adjustment and fine-tuned viewing angles while maintaining a secure hold. The pre-drilled 3.68" round base simplifies installation on flat surfaces, and the jam nut secures the arm’s position. The 75 x 75 mm VESA plate makes this mount compatible with many small displays and devices. Constructed from durable materials with a black finish, the mount balances flexibility and stability for varied mounting needs.

Suitable for

• Mounting small monitors or displays with 75 x 75 mm VESA pattern
• Vehicle dashboards, desks, or flat surfaces requiring a compact, adjustable mount
• Industrial or professional installations where stable, adjustable positioning is needed

Key specifications

• Model: RAM-D-101U-MI1-2461
• VESA plate: 75 x 75 mm hole pattern
• VESA plate size: 3.625" square
• Base diameter: 3.68" (pre-drilled, holes at 180° and 120°)
• Ball diameter: 2.25" patented rubber ball-and-socket
• Arm type: STANDARD length double socket arm with jam nut
• Finish: black
• Brand: RAM Mounts

How to use

Attach the 3.625" VESA plate to the device using the appropriate screws for a 75 x 75 mm hole pattern. Secure the round base to the mounting surface using suitable fasteners through the pre-drilled holes. Insert the arm between the rubber ball sockets and tighten the jam nut to set a preliminary position. Adjust the ball-and-socket joints at both ends of the arm to achieve the desired viewing angle, then re-tighten the jam nut to lock the assembly in place.

Recommendations

Use corrosion-resistant fasteners appropriate for the mounting surface and periodic checks of the jam nut and mounting hardware to ensure continued stability. For heavy or high-vibration environments, confirm screw lengths and thread types match device and surface requirements before final installation.
