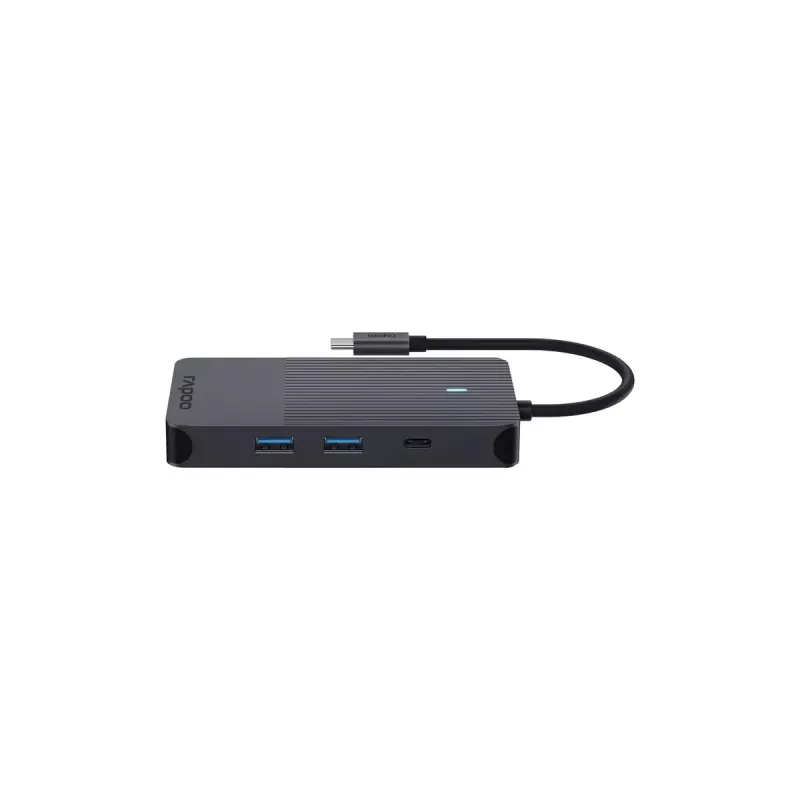

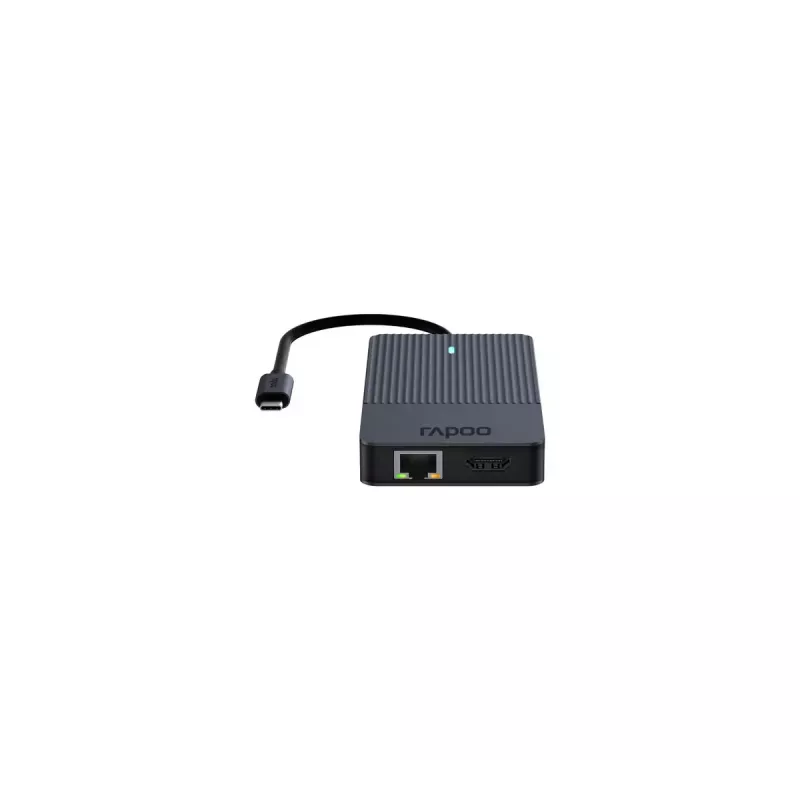

Rapoo UCM-2005 rozširujúca karta/adaptér 3,5 mm DisplayPort HDMI RJ-45 USB 3.2 Gen 1 USB Type-C

Rapoo UCM-2005 is a multi‑port USB-C adapter designed to expand connectivity for USB-C notebooks, tablets and smartphones. Housed in an aluminium case, the adapter provides multiple ports for displays, USB devices, storage cards, audio and wired networks while also supporting USB-C Power Delivery charging up to 100W.

Advantages

The adapter combines a slim reversible USB-C plug with an aluminium exterior for a durable and convenient solution. It supports two HDMI outputs capable of 4K UHD@60Hz, a DisplayPort output, two USB-A ports with USB 3.2 Gen 1 (5 Gbps) transfer speed, one USB-C data port, an SD and MicroSD card reader, a 3.5 mm audio jack and a Gigabit RJ‑45 Ethernet port. The UCM-2005 also provides 100W USB-C Power Delivery to charge a connected host device while other ports are in use and is plug-and-play with major operating systems.

Suitable for

• Expanding ports on USB-C notebooks and tablets
• Connecting two external displays for presentations or extended desktop
• Fast file transfer with USB 3.2 Gen 1 devices and SD/MicroSD cards
• Wired Gigabit network connection when Wi-Fi is unreliable
• Connecting audio equipment via 3.5 mm jack

Key specifications

• Host interface: USB Type-C (reversible ultra-slim plug)
• Video outputs: 2× HDMI (up to 4K UHD@60Hz), DisplayPort support (SST/MST)
• USB: 2× USB-A (USB 3.2 Gen 1, up to 5 Gbps), 1× USB-C
• Card reader: SD and MicroSD slots
• Audio: 3.5 mm jack
• Network: RJ-45 Gigabit Ethernet
• Power Delivery: up to 100W USB-C PD
• Material and colour: Aluminium housing, black
• Compatibility: Windows, macOS (Thunderbolt 3/4 MacBook Pro/Air), Chromebooks, iPad, Android devices supporting USB-C, Samsung DeX
• Weight: 0.106 kg

How to use

Plug the reversible USB-C connector of the Rapoo UCM-2005 into a compatible USB-C or Thunderbolt port on your notebook, tablet or smartphone. Connect HDMI or DisplayPort cables to external displays as required (SST or MST modes supported). Insert SD or MicroSD cards into the card slots and connect USB-A devices, external drives or audio equipment to the appropriate ports. For wired network access, connect an Ethernet cable to the RJ‑45 port. If charging the host device, connect a USB-C PD power source to the adapter's power delivery port.

Recommendations

Use high-quality HDMI/DisplayPort cables for reliable 4K@60Hz output, and ensure the host device supports required display modes (SST/MST) and USB-C Power Delivery if charging simultaneously. For maximum network performance, use a Gigabit-capable router or switch.
