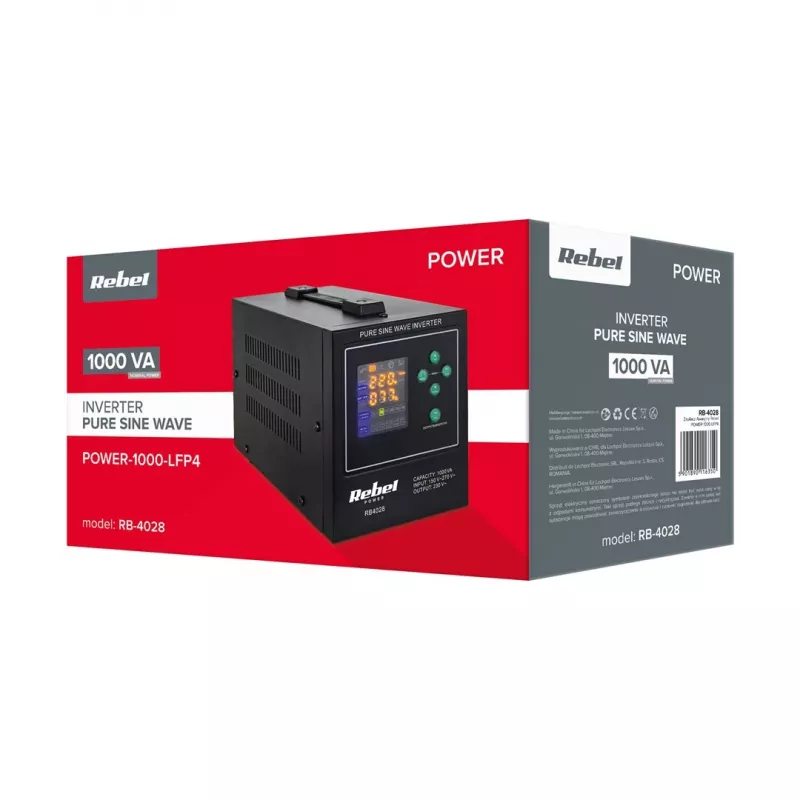

Rebel POWER-1000-LFP4 UPS - čistý sínusový menič s nabíjacou funkciou 12V 230V 1000VA/700W

The Rebel POWER-1000-LFP4 is a versatile uninterruptible power supply (UPS) that combines a pure sine wave inverter, battery charger, and automatic transfer switch in one unit. Designed for off-grid, backup power, and mobile applications, it delivers reliable 230V AC power from a 12V DC source, ensuring your sensitive electronics receive clean, stable power.

Advantages

Pure sine wave output ensures compatibility with sensitive devices like computers, medical equipment, and audio/video systems. The integrated multi-stage charger supports lead-acid, Gel, AGM, and LiFePO4 batteries, extending battery life. With a transfer time of less than 10 ms, critical loads remain uninterrupted during power transitions. The LCD display provides real-time status of input/output voltage, battery level, and load percentage.

Suitable for

• Home backup power for lights, routers, and small appliances
• Off-grid solar systems
• Mobile power in RVs, boats, and vans
• Emergency power for medical devices
• Power supply for remote monitoring equipment

Key specifications

• Output Power: 1000 VA / 700 W
• Input DC Voltage: 12 V
• Output AC Voltage: 230 V
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz
• Max Charging Current: 20 A
• Battery Compatibility: Lead-acid, Gel, AGM, LiFePO4
• Transfer Time: < 10 ms
• Efficiency (DC to AC): > 85%
• Display Type: LCD
• Protection Features: Overload, Short Circuit, Over-temperature, Over-voltage, Under-voltage
• Cooling System: Active Fan Cooling
• Operating Temperature Range: 0°C to 40°C
• UPS Topology: Off-line
• Surge Power: 2000 VA (for 20ms)
• AC Input Voltage Range (Charger): 170-280 V AC
• Charging Algorithm: Multi-stage (Bulk, Absorption, Float)
• Battery Low Voltage Alarm: 10.5 V DC
• Battery Low Voltage Shutdown: 10.0 V DC

Recommendations

For optimal performance, use with a deep-cycle battery of appropriate capacity. Ensure proper ventilation for active cooling. This unit is not designed for grid-tie applications.
