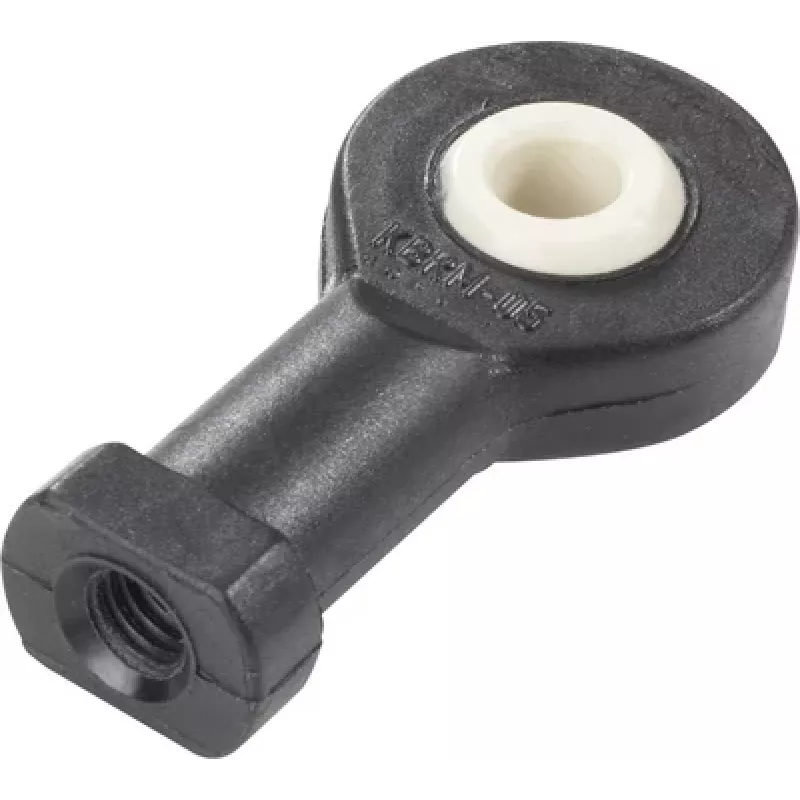

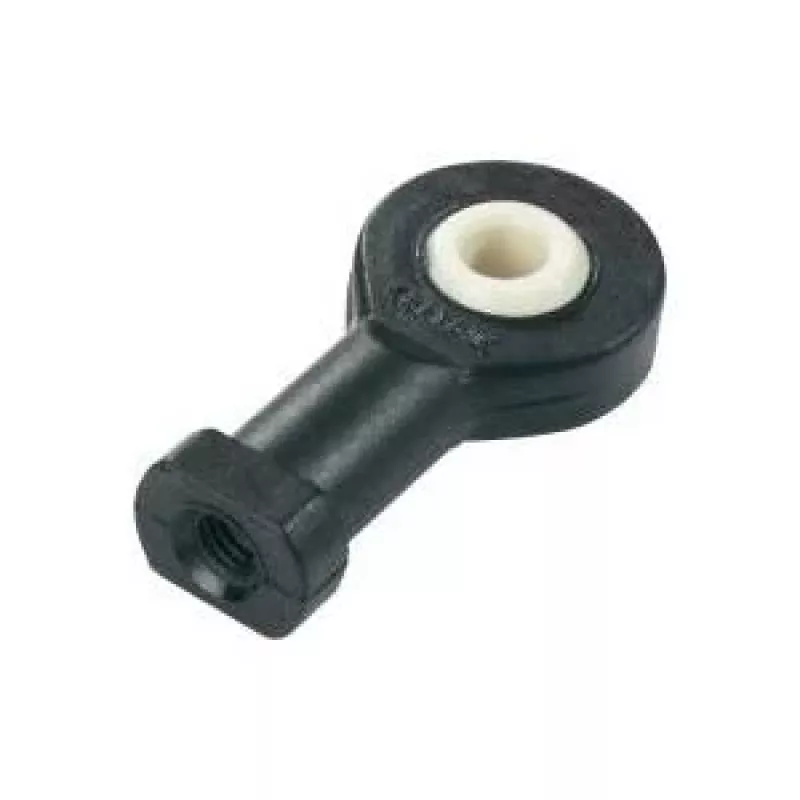

REELY KBRM05 M4 plastový kĺbový klb s vnútorným závitom, igubal®, M4, 5 mm vŕtanie, bezúdržbový

In light-duty mechanical linkages, control rods, and automated fixtures, the REELY KBRM05 M4 plastic rod end bearing provides a corrosion-resistant, self-lubricating pivot point. Its igubal® design uses high-performance polymers for both housing and spherical ball, eliminating the need for external lubrication and withstanding humid or washdown environments.

Key specifications

• Thread type: Internal metric thread, M4
• Bore diameter (d1): 5 mm
• Outer diameter (d3): 16 mm
• Overall length (L1): 32 mm
• Thread length (L2): 12 mm
• Head width (B1): 8 mm
• Housing material: igumid G (high-performance polymer)
• Spherical ball material: iglidur W300 (high-performance polymer)
• Static radial load capacity: 1000 N
• Operating temperature range: -40 to +80 °C
• Maintenance-free, self-lubricating
• High corrosion resistance, good chemical resistance
• Colour: Black

Why choose it

The all-plastic construction eliminates metal-to-metal contact, reducing noise and wear while providing excellent resistance to corrosion and chemicals. The maintenance-free design lowers downtime and total cost of ownership in applications where regular lubrication is impractical.

Ideal use cases

• Light to medium load linkages in packaging, textile, and food machinery
• Corrosive environments such as marine, chemical, or outdoor equipment
• Applications requiring low friction and no lubrication
• Prototyping and custom mechanical assemblies

Good to know

The KBRM05 M4 is part of the igubal® KBRM series, known for dimensional interchangeability with many standard metal rod ends. Its M4 internal thread allows direct attachment to threaded rods or bolts.
