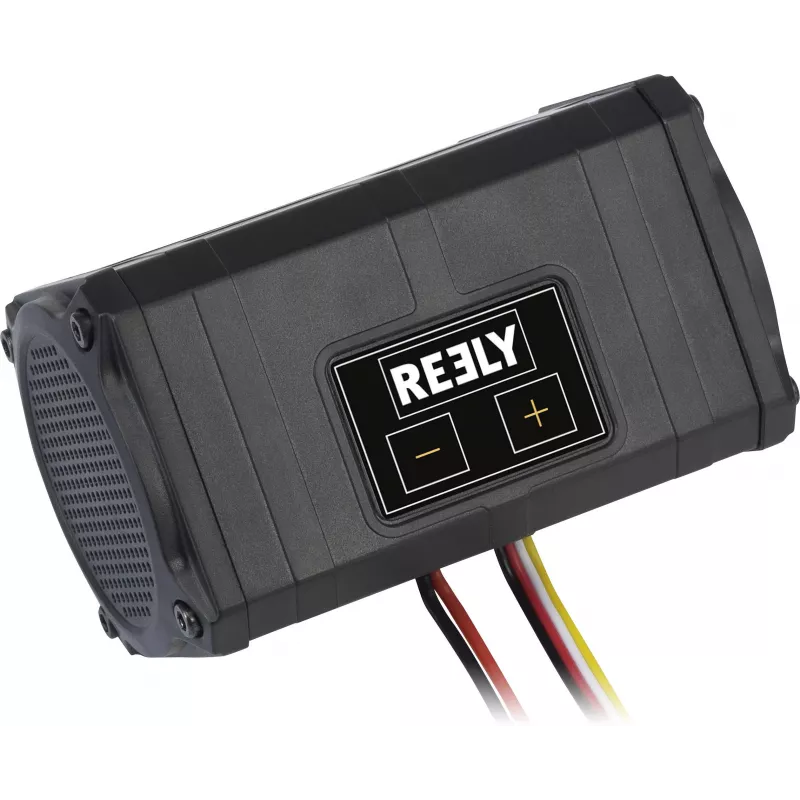

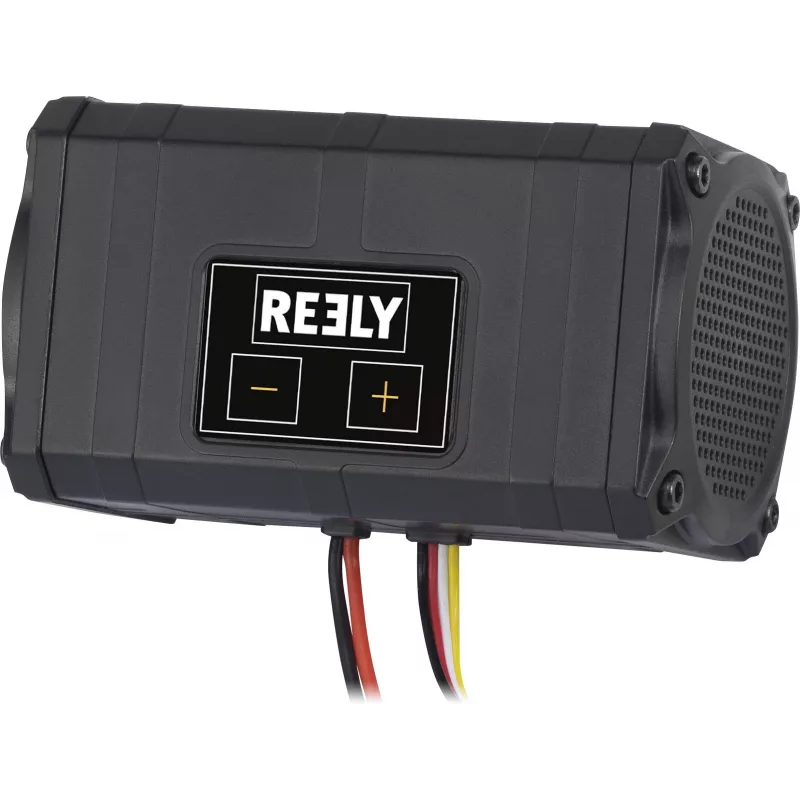

Reely zvukový modul pre Crawler a Short Course 5-26 V (RE-5042460)

This sound module brings realistic engine audio and integrated lighting control to 1/10 scale RC crawlers, short course trucks, and similar models. Unlike basic sound units, it automatically detects throttle position and adjusts engine sound accordingly, while also handling six light outputs for headlights, brake lights, reverse lights, and turn signals.

Highlights

• Operating voltage 5-26 V DC, compatible with 2S-6S LiPo batteries
• 30 W maximum speaker output at 4 Ohm on 6S LiPo
• Pre-installed sounds for crawler, short course, and truck engines
• Throttle-dependent engine sound, brake and reverse sounds, horn, and gear shift simulation
• Six light outputs for realistic lighting functions
• Plug-and-play installation via standard servo connectors

In daily use

Connect the module to your receiver's throttle channel and a suitable speaker (4-8 Ohm). Engine start/stop, acceleration, braking, and reversing are simulated automatically based on your throttle input. The volume is adjustable, and the integrated light outputs can be wired to your model's LEDs for synchronized lighting effects.

Full specifications

• Product type: RC model sound module
• Intended use: RC crawler, short course, truck models
• Operating voltage: 5 - 26 V DC
• LiPo compatibility: 2S - 6S LiPo
• Max speaker output power: 30 W (at 4 Ohm, 6S LiPo)
• Recommended speaker impedance: 4 - 8 Ohm
• Pre-installed sound types: crawler, short course, truck engine sounds
• Sound functions: engine start/stop, throttle-dependent engine sound, brake sound, reverse sound, horn, gear shift sound
• Light outputs: 6 (e.g., headlights, brake lights, reverse lights, turn signals)
• Control interface: PWM (via RC receiver throttle channel)
• Volume control: adjustable
• Installation: plug & play

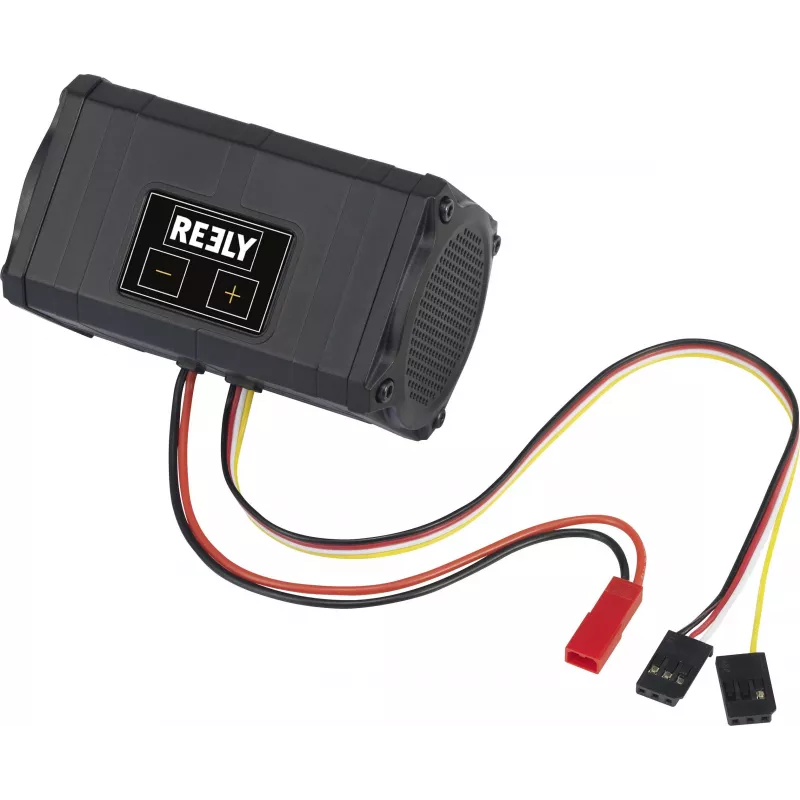

• Connectors: standard servo connectors, power input, speaker output, light outputs
• Special features: realistic sound simulation, integrated light control, automatic throttle position detection

Final note

Designed for easy integration into existing RC models, this module adds a new dimension of realism without complex setup.
