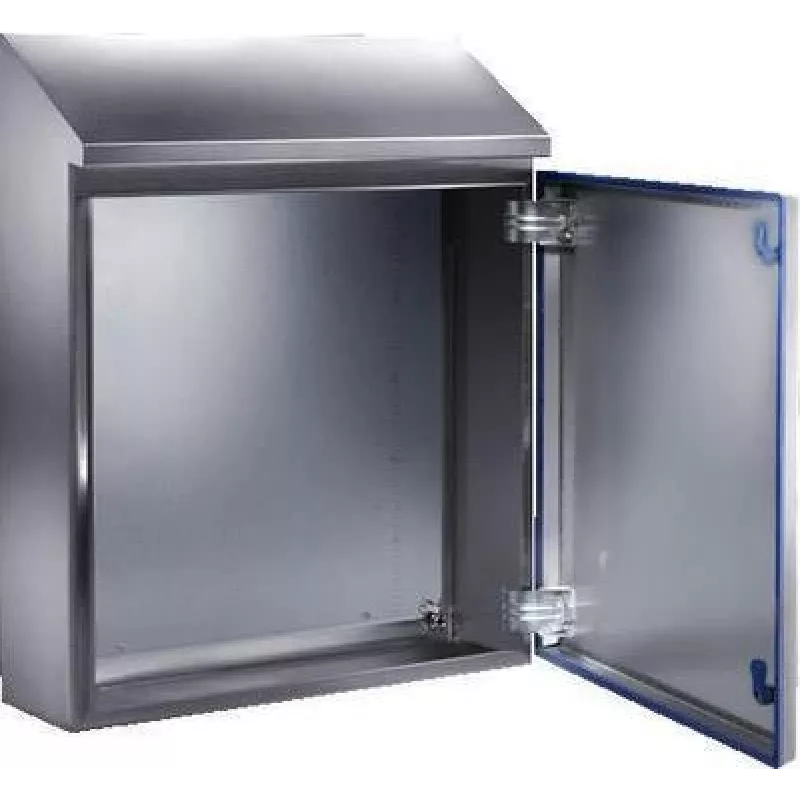

Rittal HD kompaktné puzdro 1315.600, nerezová oceľ, 821 x 810 x 300 mm, IP66

This Rittal HD compact enclosure provides hygienic protection for electrical and electronic components in demanding washdown environments. Its stainless steel construction and sloping roof prevent liquid pooling, ensuring reliable operation in food, beverage, and pharmaceutical facilities.

Advantages

The brushed stainless steel surface with grain 240 offers excellent corrosion resistance and easy cleaning. The silicone seal is FDA compliant and blue for visual inspection. The 30° sloping roof sheds water and cleaning agents, while the hygienic quarter turn lock allows tool-free access. The enclosure is rated IP66 and NEMA 4X, making it dust-tight and protected against powerful water jets.

Suitable for

• Food and beverage processing equipment
• Pharmaceutical manufacturing lines
• Chemical industry control panels
• Washdown areas requiring frequent cleaning

Key specifications

• Material: Stainless steel 1.4301 (AISI 304), brushed finish
• Dimensions (W x H x D): 821 x 810 x 300 mm
• Protection: IP66 / NEMA 4X
• Door: Single, reversible hinge, hygienic quarter turn lock
• Roof: 30° sloping design
• Seal: Silicone, FDA compliant, blue
• Mounting plate: Galvanized sheet steel (included)
• Certifications: UL, cUL, TÜV, Germanischer Lloyd
• Operating temperature: -20°C to +80°C

Recommendations

For optimal hygiene, mount the enclosure using external brackets (not included) to maintain smooth surfaces. Ensure proper cable entry with hygienic glands to preserve the IP rating.
