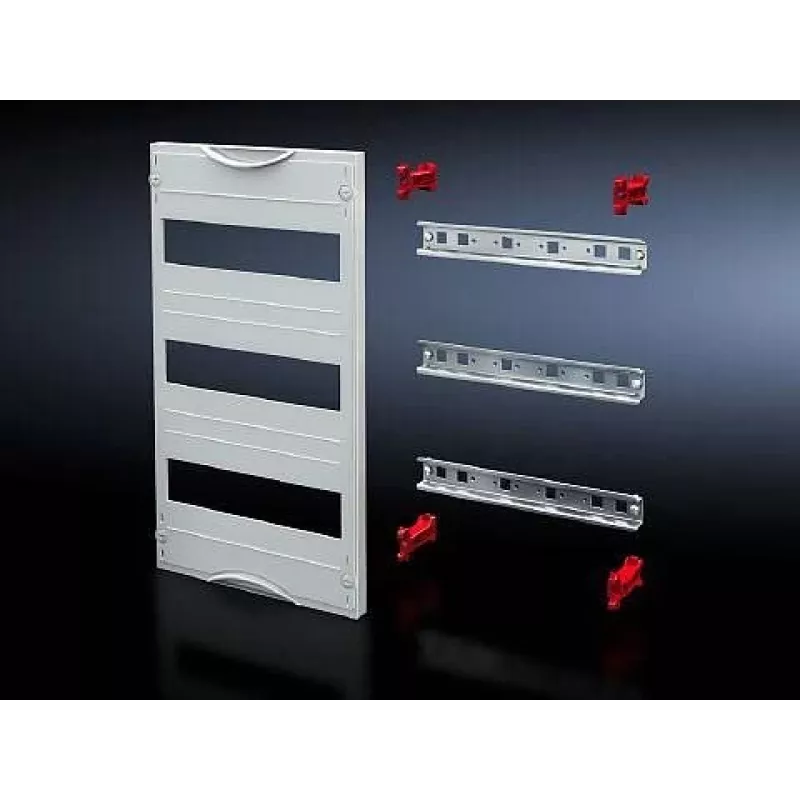

Rittal ISV-séria inštalačný modul SV 9666.280, 500 x 150 mm, oceľový plech, svetlosivý (RAL 7035)

Organizing and mounting standard series installation devices in distribution boards can be time-consuming and error-prone. The Rittal ISV Series Installation Device Module SV 9666.280 solves this by providing a pre-assembled, modular unit that snaps into Rittal ISV enclosures, instantly creating a structured space for circuit breakers, RCDs, and contactors.

Who is it for

Panel builders, electrical contractors, and maintenance technicians who need to quickly and reliably install DIN-rail-mounted devices in Rittal ISV distribution boards and enclosures.

Main features

• Integrated DIN rail (top hat rail) for standard series installation devices
• 28 pitch units (TE) of mounting space
• 3 height units (HU) for compatibility with ISV enclosures
• Made from powder-coated sheet steel in light grey (RAL 7035)
• Pre-assembled module frame with cover and mounting hardware for fast installation

Specifications

• Brand: Rittal
• Model: SV 9666.280
• MPN: 9666.280
• EAN: 4028177676268
• Module type: Series installation device module
• System series: Rittal ISV
• Material: Sheet steel
• Colour: Light grey (RAL 7035)
• Width: 500 mm
• Height: 150 mm
• Number of pitch units: 28 TE
• Number of height units: 3 HU
• Mounting: Snap-in installation in ISV distribution boards
• Surface treatment: Powder-coated

Tips

Ensure the ISV enclosure is de-energized before installation. The module's snap-in design allows for quick mounting without tools, but verify alignment with the enclosure's mounting points for a secure fit.
