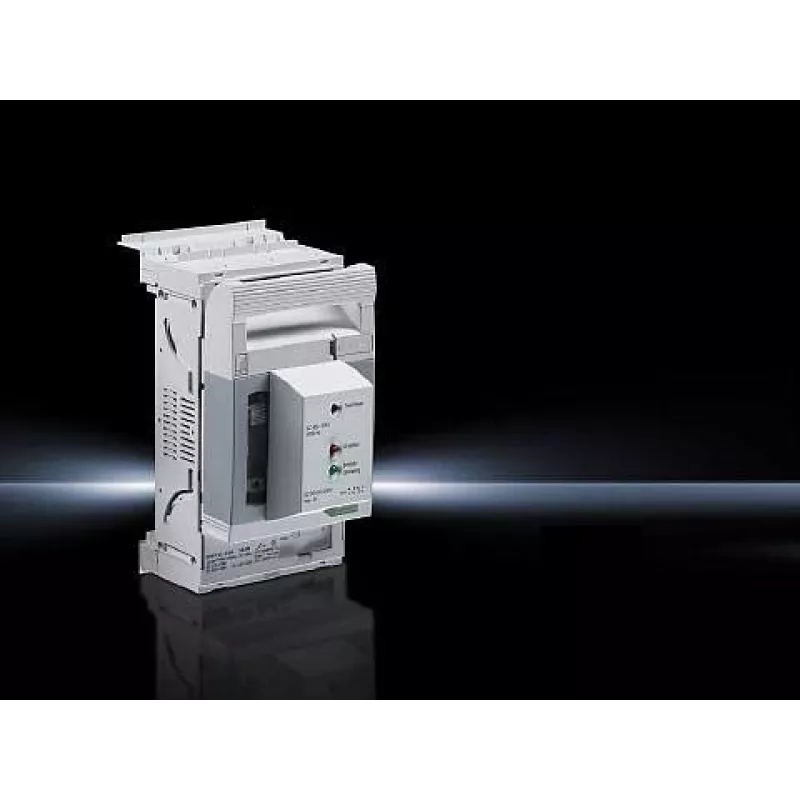

Rittal SV 9343.020 NH00 poistkový odpojovač so zaťažiteľnosťou 160 A 3-pólový 690 V AC

Fuse switch disconnector for NH00 fuse links, rated 160 A at 690 V AC, offering safe load breaking and isolation in a compact 3-pole design. Its robust construction with screw terminals and base mounting suits industrial power distribution, while the IP20 front cover protects against accidental contact.

Advantages

The Rittal SV 9343.020 combines high breaking capacity with reliable operation. The polyamide enclosure in RAL 7035 grey resists impact and provides insulation up to 1000 V. The switch disconnector accepts flexible conductors up to 70 mm² and rigid up to 95 mm², ensuring versatile wiring. The 8 kV impulse withstand rating and 50 kA short-circuit breaking capacity (with appropriate fuses) make it suitable for demanding networks.

Suitable for

• Industrial control panels and motor control centers
• Power distribution boards requiring NH00 fuse protection
• Busbar systems with 60 mm spacing
• Applications needing visible isolation and safe fuse replacement

Key specifications

• Fuse size: NH00
• Number of poles: 3
• Rated operational current: 160 A
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 8 kV
• Rated short-circuit breaking capacity: 50 kA (with fuses)
• Connection: screw terminals
• Conductor cross-section: 2.5–70 mm² (flexible), 2.5–95 mm² (rigid)
• Degree of protection: IP20 (front side with cover)
• Operating temperature: -20 °C to +55 °C
• Material: Polyamide, colour grey RAL 7035

Recommendations

For optimal performance, pair with NH00 fuse links rated up to 160 A and ensure proper torque on screw connections. Mount on a flat surface or 60 mm busbar system, and always use the front cover to maintain IP20 protection. Verify short-circuit coordination with upstream protection.
