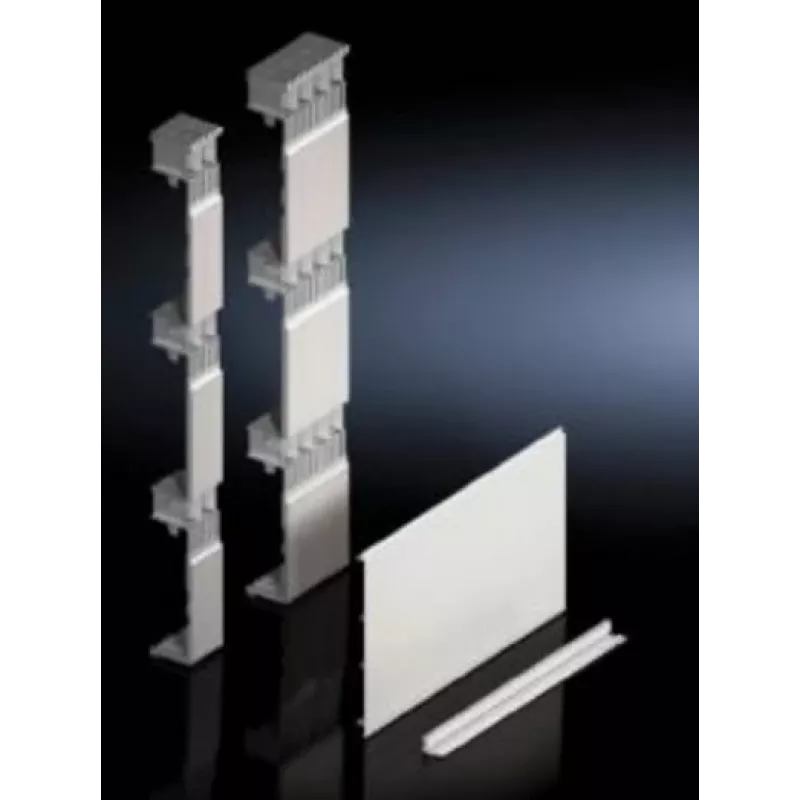

Rittal SV 9677.560 kryt ochrany proti dotyku, 185-mm systém, 800 mm šírka skrine

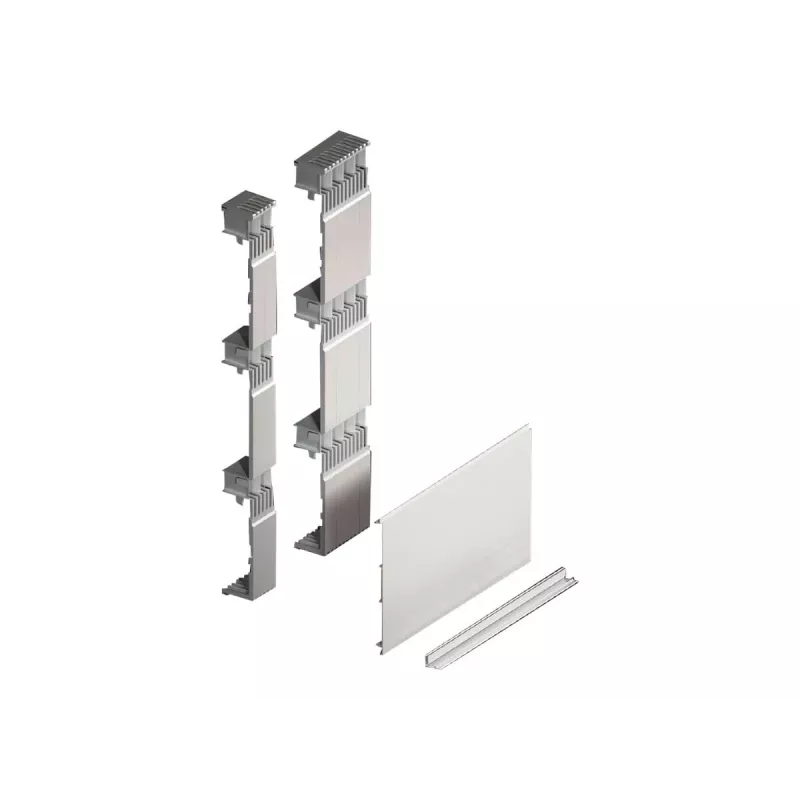

Rittal SV 9677.560 is a contact protection cover set for a 185 mm busbar system. It protects the busbar assembly at the front and rear and is specified for TS and SE enclosures with a width of 800 mm. The 800 mm figure describes the compatible enclosure width, while 185 mm identifies the busbar system.

The base and end sections are made from polyphenylene ether (PPE), and the cover sections are polyamide. The light grey finish is RAL 7035. The set includes slotted cover sections in 50 mm and 100 mm widths, base trays and trim sections. Check the exact SV 9677XXX system and enclosure configuration before selecting the cover.

• Manufacturer article: SV 9677.560
• For TS/SE enclosures, 800 mm wide
• 185 mm busbar system
• One cover set
• Net weight: 3.3 kg; gross packaged weight: 3.61 kg
