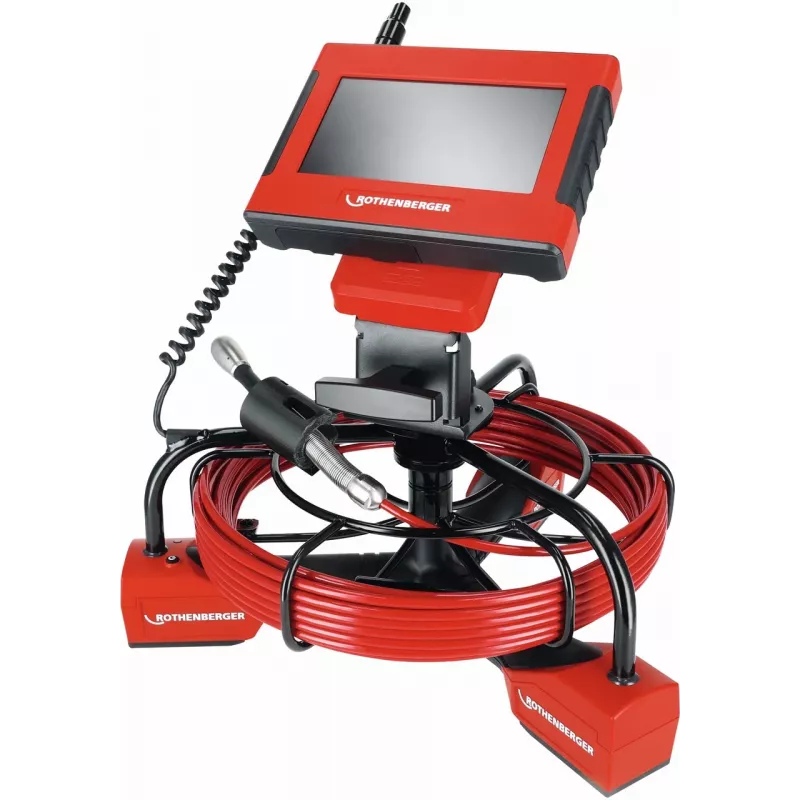

Rothenberger ROCAM MINI HD modul inšpekčnej kamery s hlavou kamery 20 mm a káblom 16 m

Plumbers and drain technicians needing to inspect pipes as narrow as 50 mm will find the Rothenberger ROCAM MINI HD Inspection Camera Module an indispensable tool. This module combines a compact 20 mm stainless steel camera head with a 16-meter reinforced push cable, allowing you to navigate bends and traps with ease. The camera head features 12 adjustable LEDs and a 115° field of view, delivering clear images even in dark, wet environments. With an IP68 waterproof rating and integrated 512 Hz transmitter, it is built for reliable performance in demanding drain and sewer inspections.

Key specifications

• Camera head diameter: 20 mm
• Cable length: 16 m
• Cable diameter: 6.5 mm
• Camera head material: stainless steel
• Waterproof rating: IP68
• Illumination: 12 adjustable LEDs
• Field of view: 115°
• Integrated transmitter frequency: 512 Hz
• Self-leveling camera head
• Minimum pipe diameter: 50 mm
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 70°C

Why choose it

The self-leveling camera head keeps the image upright regardless of cable rotation, reducing disorientation during inspection. The reinforced push cable provides the rigidity needed to push through long runs while remaining flexible enough for tight bends. The integrated transmitter allows for precise location of the camera head, saving time when pinpointing blockages or damage.

Ideal use cases

• Inspection of drains, sewers, and plumbing lines
• Locating blockages, cracks, or root intrusions
• Verifying pipe condition before and after

Good to know

This module is designed for use with the Rothenberger ROCAM MINI HD system. It is a professional-grade inspection camera module that delivers high-quality video and reliable performance in challenging environments.
