Ruijie Reyee RG-ES207GS-P 7-portový Gigabit PoE+ switch s 2 uplink a 1 SFP

For small business networks that need reliable Power over Ethernet without the complexity of managed switches, the Ruijie Reyee RG-ES207GS-P stands out with its 54 W PoE budget and versatile uplink options. This unmanaged desktop switch combines four PoE+ Gigabit ports, two additional Gigabit uplink ports, and one Gigabit SFP slot, delivering a total of seven ports in a compact, fanless enclosure. It is an ideal choice for connecting IP cameras, VoIP phones, and wireless access points in offices, retail stores, or home labs where silent operation and simple plug-and-play deployment are essential.

Highlights

• 4× Gigabit PoE+ ports (IEEE 802.3af/at) with a total power budget of 54 W
• 2× Gigabit RJ45 uplink ports and 1× Gigabit SFP slot for flexible fibre connectivity
• Unmanaged operation – no configuration required, true plug-and-play
• Fanless design for silent operation, suitable for noise-sensitive environments
• Desktop or wall-mountable metal housing for flexible installation
• 14 Gbps switching capacity and 10.416 Mpps forwarding rate for smooth traffic

In daily use

The RG-ES207GS-P simplifies network expansion by combining power and data over a single cable. Connect up to four PoE-powered devices such as IP cameras or access points directly to the switch, while the two uplink ports connect to your router or core switch. The SFP slot allows you to extend your network over fibre for longer distances or uplink to a fibre-based backbone. Because it is unmanaged, there is no software to install or settings to adjust – simply connect your devices and the switch automatically negotiates speeds and PoE power. The external 54 V DC power adapter ensures stable power delivery, and the fanless design means zero noise, making it perfect for open offices or quiet areas.

Full specifications

• Total ports: 7 (4× PoE+ Gigabit RJ45, 2× Gigabit RJ45 uplink, 1× Gigabit SFP)
• PoE standard: IEEE 802.3af/at (PoE+)
• PoE power budget: 54 W
• Switching capacity: 14 Gbps
• Packet forwarding rate: 10.416 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 9 KB
• Management type: Unmanaged
• Fanless design: Yes

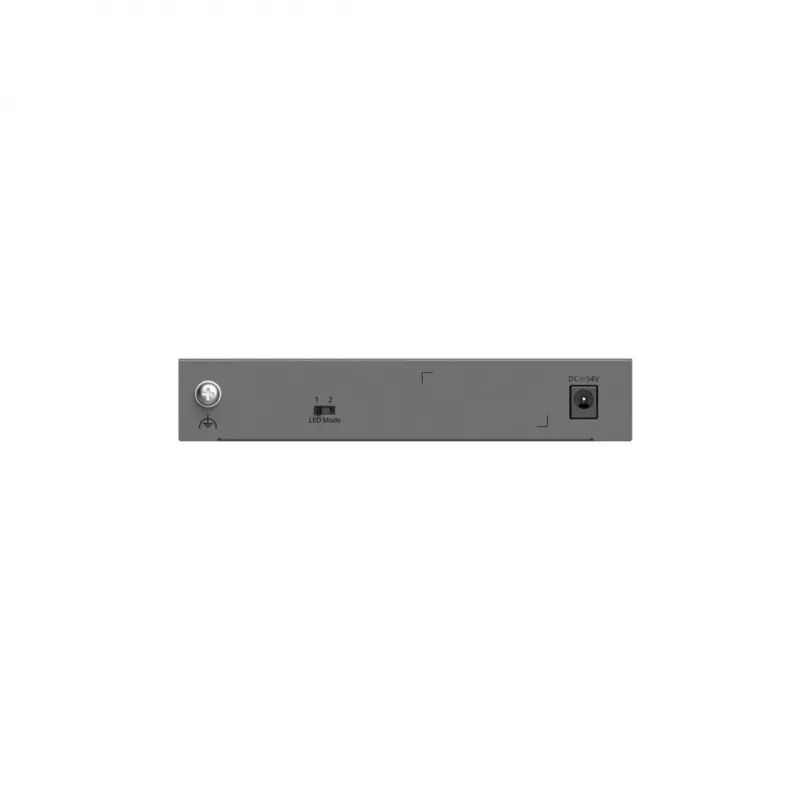

• Power supply: External DC 54 V / 1.2 A adapter
• Mounting: Desktop or wall-mount
• Network standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3af, 802.3at
• Operating temperature: 0 °C to 40 °C
• Storage temperature: -40 °C to 70 °C
• Operating humidity: 10% to 90% RH (non-condensing)
• LED indicators: Power, Link/Act per port, PoE status
• Colour: Black

Final note

The Ruijie Reyee RG-ES207GS-P delivers essential PoE+ connectivity in a silent, compact form factor. With its 54 W budget and flexible uplink options, it is a dependable building block for small networks that demand simplicity and reliability.
