RUKO 240020UNF závitová čeľusť UNF č. 2

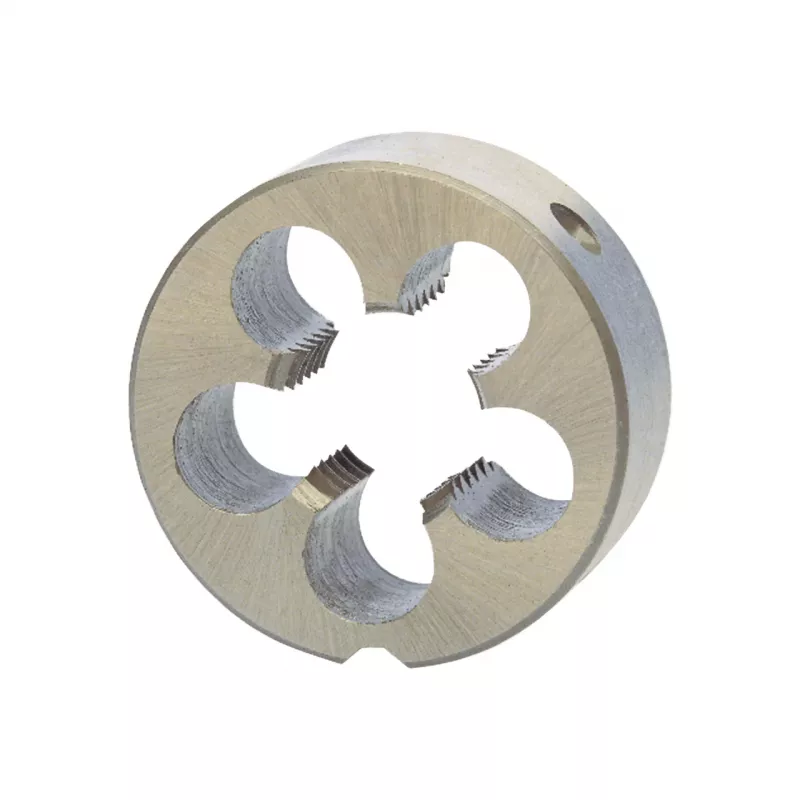

RUKO 240020UNF – Threading die. For cutting external threads.

• Product type: Threading die
• Manufacturer article number: 240020UNF
• SAP article number: 1000023493
• Thread size: UNF Nr. 2
• Thread angle: 60°
• Material: HSS
• Coating: Uncoated
• Cutting direction: Right-hand
• Tolerance: 2A
• DIN standard: 22568
• Threads per inch: 64
• Outside diameter: 16.0 mm
• Thickness: 5.0 mm
• Net weight of the product: 10 g

Dimensions and net weight above describe the product; they do not establish shipping dimensions or gross weight with packaging.
