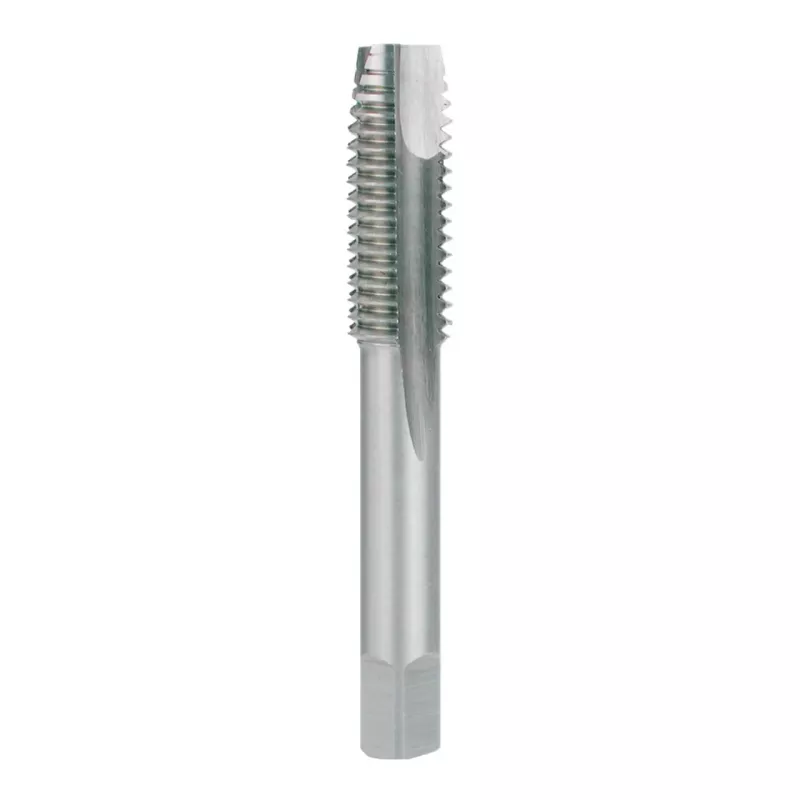

RUKO EGB-DIN352-HSSCo-60°-M-3x0,50mm ručný závitník

Threading small metric holes in tough materials demands a tap that stays sharp and cuts cleanly. The RUKO EGB-DIN352-HSSCo-60°-M-3x0,50mm hand tap is built from high-speed steel with cobalt, giving it the edge retention needed for unalloyed and low-alloy steels, cast iron, and non-ferrous metals. Its DIN 352 geometry and 60° thread profile deliver precise M3 threads with a 0.50 mm pitch, while the bright uncoated finish reduces friction for smoother cutting.

Who is it for

Machinists, metalworkers, and maintenance technicians who need a reliable finishing tap for through and blind holes in general-purpose applications. It suits workshops where consistent thread quality and tool life are priorities.

Main features

• HSS-Co material for high hardness and heat resistance
• DIN 352 standard for compatibility with common tap wrenches
• Metric M3 thread with 0.50 mm pitch and 60° profile angle
• Finishing tap (Fertigschneider) for final thread cutting
• Right-hand cutting direction for standard threading
• ISO 2 (6H) tolerance class for reliable thread fit
• Bright uncoated surface for reduced friction

Specifications

• Tap type: Hand tap
• Standard: DIN 352
• Material: HSS-Co
• Thread type: Metric (M)
• Nominal thread diameter: M3
• Thread pitch: 0.50 mm
• Thread profile angle: 60°
• Tap stage: Finishing tap
• Cutting direction: Right-hand
• Tolerance class: ISO 2 (6H)
• Overall length: 40 mm
• Thread length: 11 mm
• Shank diameter: 3.5 mm
• Square size: 2.7 mm
• Number of flutes: 3
• Recommended core hole diameter: 2.5 mm
• Surface treatment: Bright

Tips

For best results, drill a 2.5 mm core hole before tapping. Use a suitable cutting fluid to extend tool life, especially in steel. Secure the tap in a proper tap wrench and apply steady, straight pressure to avoid breakage.
