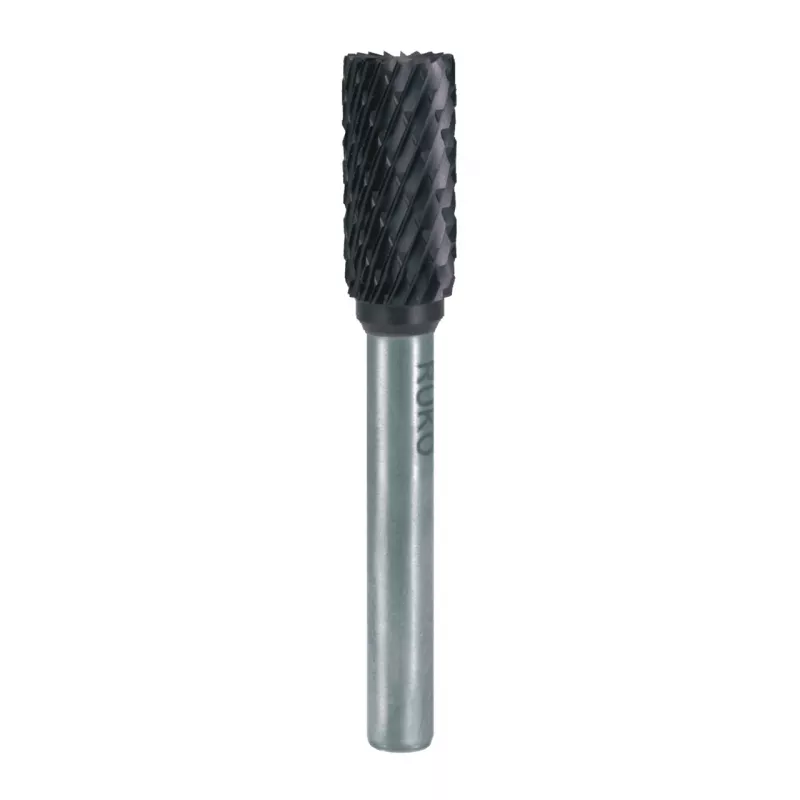

RUKO FRS-DIN8033-HM-TiAlN-Ø16,0mm VHM stopková fréza

Precision milling in tough materials demands a cutter that resists wear and holds its edge. The RUKO FRS-DIN8033-HM-TiAlN-Ø16,0mm solid carbide end mill addresses that challenge with a TiAlN coating and a robust 4-flute design.

Who is it for

This end mill is built for machinists and metalworking professionals who need reliable performance in steel, stainless steel, cast iron, and non-ferrous metals. Its universal geometry suits both roughing and finishing operations.

Main features

• Solid carbide (VHM) construction for high rigidity and long tool life
• TiAlN coating reduces friction and heat, allowing higher cutting speeds
• 4 flutes with 30° helix angle for smooth cutting and efficient chip evacuation
• Square end cutting edge with center cutting capability for plunging
• Cylindrical shank with Weldon flat (DIN 1835 B) for secure clamping
• Precision tolerances: cutting diameter h10, shank h6

Specifications

• Cutting diameter: 16.0 mm
• Shank diameter: 16.0 mm
• Overall length: 92 mm
• Flute length: 32 mm
• Helix angle: 30°
• Number of flutes: 4
• Standard: DIN 8033
• Coolant supply: External

Tips

For best results, use a rigid setup and appropriate feeds and speeds for the workpiece material. The Weldon flat ensures positive drive in the tool holder.
